BROSA Memphis Entertainment Unit Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

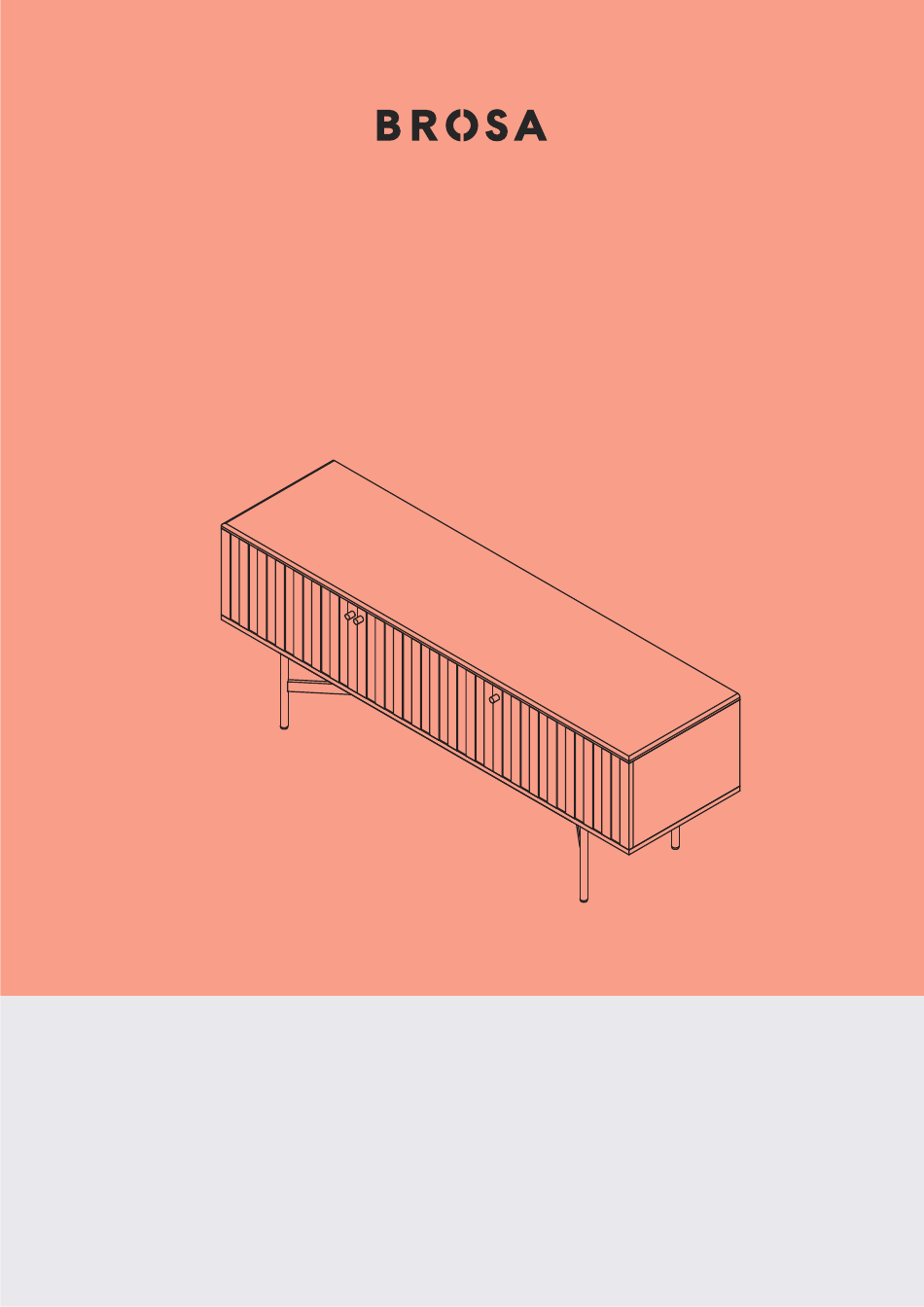

Memphis
Entertainment Unit
A S S E M B LY G U I D E
V1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Memphis Entertainment Unit and is the answer not in the manual?

Questions and answers

Related Manuals for BROSA Memphis Entertainment Unit

Summary of Contents for BROSA Memphis Entertainment Unit

  • Page 1 Memphis Entertainment Unit A S S E M B LY G U I D E...
  • Page 2 F O R Y O U R S A F E T Y Lift, don’t drag. This protects Check the assembly guide your floor and product. for required components. Assembly requires 2 people. Assembling this product on It's always easier with a a soft surface protects its friend.
  • Page 3 Components Before you get started, check you have all of the pieces below. If anything’s missing, we’ll sort it out right away. Simply visit: www.brosa.com.au/pages/product-return-and-parts-request ① Top x 1 ② Body x 1 ④ Middle Rail x 1 ③ Leg Frame x 2...
  • Page 4 Step 1 ③ Fit the metal arm of the leg frame into the centre of the middle rail ④. Repeat this for the other leg frame. Make sure the stickers on both components match as shown in the diagram. ③ ④...
  • Page 5 Step 2 Fit a washer to a short bolt A. Insert the short bolt into a hole on the middle rail. Screw the bolt with your hand. Leave the bolt loosely attached. Repeat this for the holes on the other side of the rail.
  • Page 6 Step 3 Align the structure formed in Step 2 with the holes on the bottom of the body ②. Make sure the stickers match as per the diagram below. Fit a washer to a long bolt B. Insert the bolt into a hole on the leg frame.
  • Page 7 Step 4 Once the structure is built up, tighten all bolts with the Allen key D.
  • Page 8 Step 5 Flip the completed structure the right way up and place it in its desired location. Place the top ① upon the body. ①...
  • Page 9 Step 6 Enjoy your new Memphis Entertainment Unit!

  • Page 10: Anti-Tip Kit Installation

    Anti-Tip Kit Installation It is not mandatory but strongly recommended to install anti-tip kit for safety. Hardware Wall Fixings Because of the variety of wall compositions, we can’t provide you with appropriate wall fixings. Please identify your wall composition and contact your local hardware store to get the appropriate fixings.
  • Page 11 What You Need Step 1 Attach the brackets securely to the back top of the product using the short screws provided.
  • Page 12 Instructions below demonstrate how to attach the kit to the wall using the wall plugs provided. But please do identify the type of your wall and choose the appropriate wall fixings. Step 2 Determine where the piece is to be placed and mark locations on the wall for the mounting brackets using a pencil.
  • Page 13 Step 3 Drill holes for the wall plugs using a drill. Knock the plugs into the holes using a hammer. Place the brackets against the plugs again and fix the brackets with the long screws d.
  • Page 14 Step 4 Lace the nylon strap down through the brackets. Slide the thin end of the strap through the receiving end on the nylon strap. Pull to tighten the piece of furniture snug against wall.

  • Page 15: Troubleshooting

    Troubleshooting 1. Upon receiving your product, you might find that the door doesn’t align well. Please note that it’s not a product flaw and can be adjusted following the instructions below.
  • Page 16 2. Follow the steps below to disassemble your doors when needed. Step 1 Loosen the screw at the end of the hinge arm. Step 2 Gently pull the door so that it is separated from the body. Reverse the steps above to get the doors attached again.
  • Page 17 User Recommendation Assembly 1. Assemble furniture using our Assembly Guides. You can find them at support.brosa.com 2. Do not dispose of any packaging or contents of the shipping carton until assembly is completed to avoid accidentally discarding small parts or hardware.
  • Page 18 Cleaning and Maintenance 1. Clean furniture regularly with a white soft cloth. Slightly damp fabrics help absorb dust, but remember to dry it once you’re done. 2. Clean spills and stains immediately with a clean cloth. As long as you’re on hand to wipe up any spills straight away, you shouldn’t encounter any problems.
