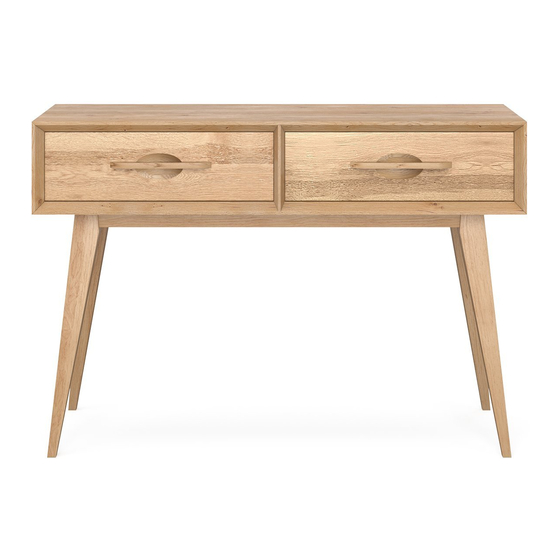

- Page 1 All manuals and user guides at all-guides.com v1.0 ASSEMBLY GUIDE Hans Console Table with Drawers...
- Page 2 All manuals and user guides at all-guides.com Components Upon unpacking your table from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new table. Table top x 1 Leg x 4 Hardware A x 4...
- Page 3 All manuals and user guides at all-guides.com Insert the cross dowel into the top hole of the leg Step 1 so that the side marker faces the bolt hole. Repeat for all four legs. A x 4 Screw the threaded bolt into the corner hole.
- Page 4 All manuals and user guides at all-guides.com Place the table top on a at surface with underside Step 3 facing up. Insert a leg construction formed in previ- ous steps into a corner opening. Fit a washer (C), a lock washer then a hex nut to the threaded bold and tighten with the spanner (F).
- Page 5 All manuals and user guides at all-guides.com Turn the twist inside of the drawer to adjust it’s ver- Step 5 tical position, so that there are exqual gaps above and below the front wall. +2.5 -2.5...
- Page 6 All manuals and user guides at all-guides.com To take the drawer out, open it, pull out the Lock Step 6 button inside of the drawer. Gently lift the front part of of the drawer.
- Page 7 All manuals and user guides at all-guides.com To put the drawer back in, attach the connector in Step 7 the back of the drawer. Gently put down the front part of of the drawer so that the front connectors attach. Push back the Lock button inside of the drawer.
- Page 8 All manuals and user guides at all-guides.com Enjoy your new table! Step 8...
