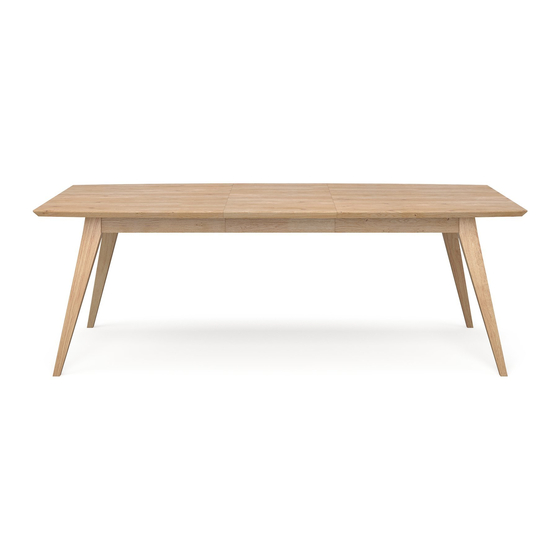

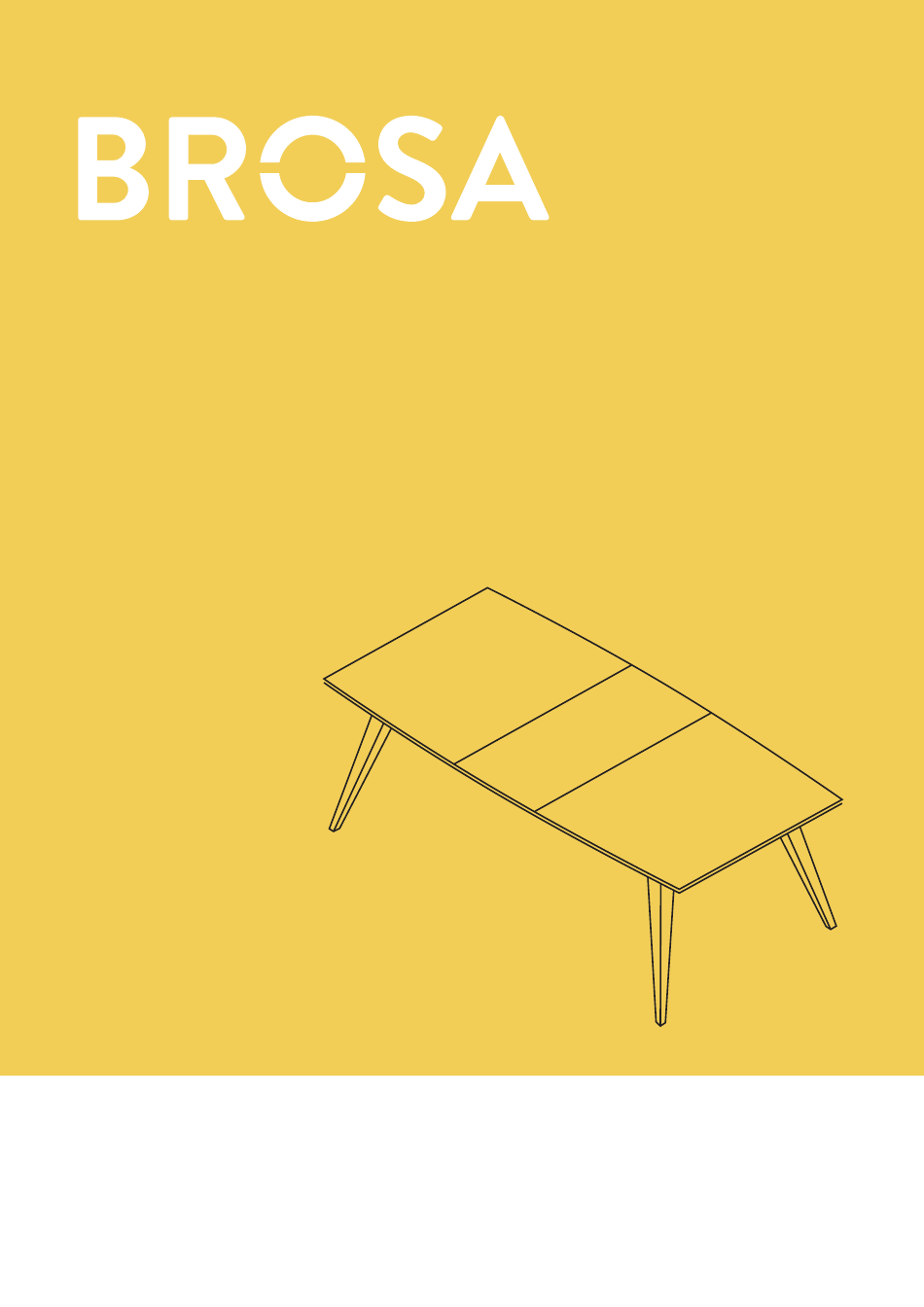

- Page 1 ASSEMBLY GUIDE Hans 220cm Extendable Dining Table...
- Page 2 Components Upon unpacking your table from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new table. Extension Leaf x 1 Table top x 1 Leg x 4 Hardware A x 4 B x 8...
- Page 3 Insert the cross dowel into the top hole of the leg Step 1 so that the side marker faces the bolt hole. Repeat for all four legs. A x 4 Screw two threaded bolts into the corner holes. Step 2 Repeat for all four legs.
- Page 4 Place the table top on a at surface with underside Step 3 facing up. Insert a leg construction formed in previ- ous steps into a corner opening. Fit a washer (C), a lock washer then a hex nut to the threaded bold and tighten with the spanner (F).
- Page 5 Place the table on a at surface and enjoy your new Step 4 table! To extend the table, take the extension leaf out of the Step 5 storage bag and open the xing aps.
- Page 6 Unlock the switch under the table top and slide two Step 6 parts apart.
- Page 7 Insert the extension leaf into the formed space. Step 7 make sure the dowels are aligned correctly. Slide the extension leaf towards one of the table top sides. Slide the remaining side of the table top towards the extension leaf and x the lock back.
- Page 8 To switch back to the compact form unlock the Step 8 swith underneath the table top. Slide the sides apart from each other. Take the separated extension leaf out.
- Page 9 Close the aps, place the extension leaf back into the Step 9 storage bag and close it. Hide the bag into the table top and close it. Step 10 Switch the lock back on.
- Page 10 Enjoy your new table! Step 11...
