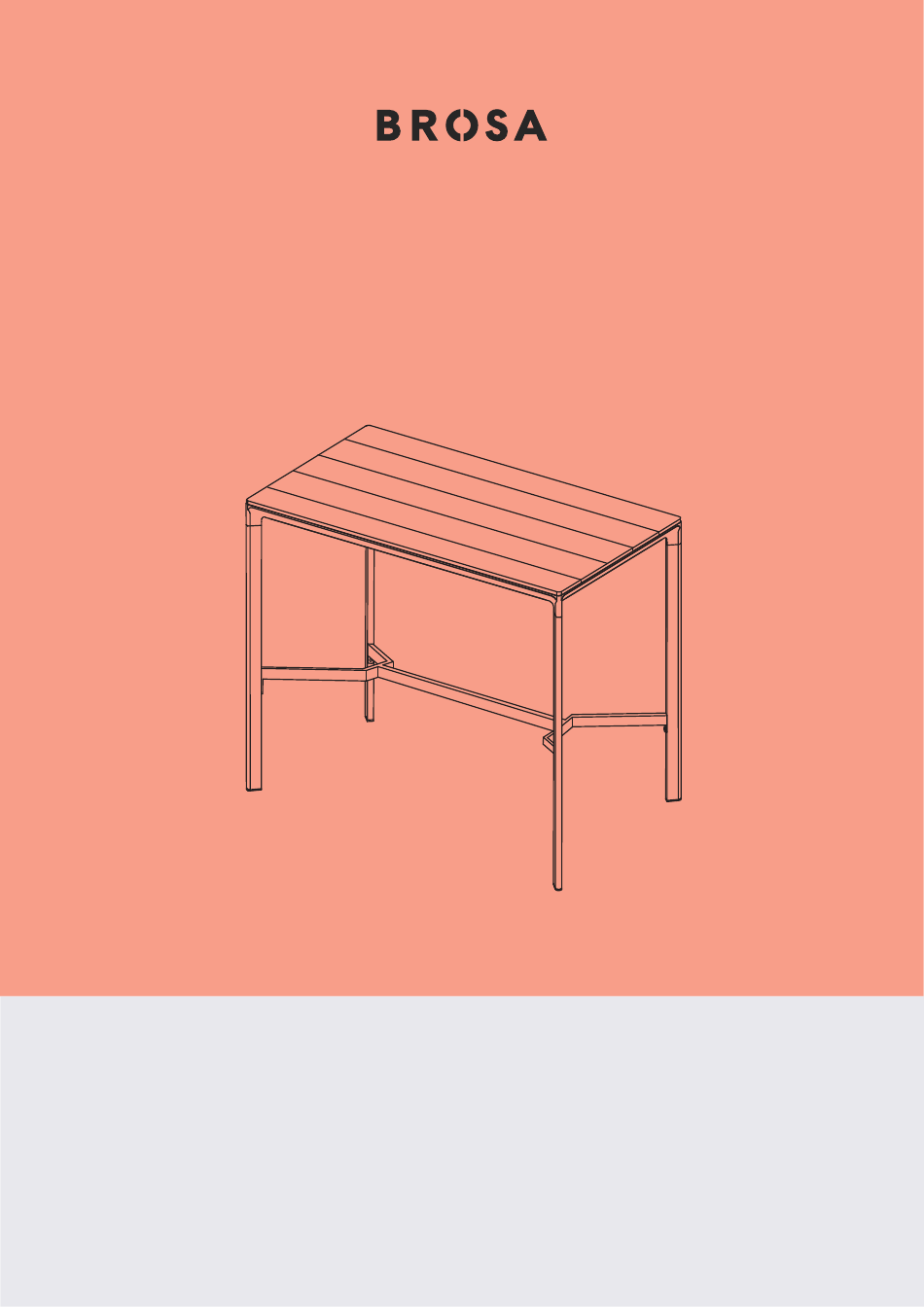

- Page 1 Samui Outdoor Bar Table A S S E M B LY G U I D E...
- Page 2 F O R Y O U R S A F E T Y Lift, don’t drag. This protects Check the assembly guide your floor and product. for required components. Assembly requires 2 people. Assembling this product on It's always easier with a a soft surface protects its friend.
- Page 3 Components Before you get started, check you have all of the pieces below. If anything’s missing, we’ll sort it out right away. Simply visit: www.brosa.com.au/pages/product-return-and-parts-request ① Table Top x 1 ② Crossbar x 1 ③ Leg x 4 Hardware (Ø10 x 990) (M5 x 13) (Ø6 x Ø16 x 1)
- Page 4 Step 1 Grab a long rod and distinguish the end with wings as shown in the zoomed-in diagram below. Insert the end with wings into the threaded hole ① on the bottom of the table top and tighten it with your hand. Repeat this for all four rods. ①...
- Page 5 Step 2 Unscrew and remove the nut, spring washer and flat washer from the end of the long rod. Repeat this for all four rods. Keep the removed hardware for the following as- sembly.
- Page 6 Step 3 ③ Grab a leg and distinguish the bottom end from the top end as shown in the zoomed-in dia- gram below. Put the rod through the leg and make sure it protrudes from the hole on top. Repeat this for the remaining legs.
- Page 7 Step 4 Fit the flat washer, spring washer and nut back to the rod again. Tighten the nut with the spanner. Repeat this for the remaining rods.
- Page 8 Step 5 Insert the foot caps into the openings of the legs.
- Page 9 Step 6 ② Align the crossbar with the legs and make sure the bolt holes overlap. Fit a flat washer to a bolt and then insert the bolt into the hole. Tighten the bolt with your hand until it is finger-tight. Repeat this for the remain- ing holes.
- Page 10 Step 7 Once all four branches are fixed in place, tighten all bolts with the Allen key E.
- Page 11 Step 8 Place the completed piece of furniture upright on a level surface. Enjoy your new Samui Outdoor Bar Table!
- Page 12 User Recommendation Congratulations on your purchase from Brosa. We know you're going to love it and will want to keep it looking great for years to come! So please have a quick read-through of our handy tips below for ongoing care and maintenance of your new Brosa furniture.
- Page 13 is exposed to excessive humidity, particularly in locations near saltwater. Stainless Steel Regularly applying stainless steel cleaner removes oxidisation and helps restore a natural glossy finish in seconds. Cleaning will be needed on a regular basis in coastal areas, due to wind and salt exposure.
- Page 14 the direction of the wood grain. Repeat the process as necessary. Eucalyptus Keep standing water off your eucalyptus-wood furniture, and keep the furniture out of direct sunlight, which breaks down the surface layer of wood fibres and causes discolouration and finish failure. For regular cleaning, scrub the surface of the wood using a soft bristle brush, with a solution of bleach and water.
