Summary of Contents for BROSA Bruin Wooden Bed Frame

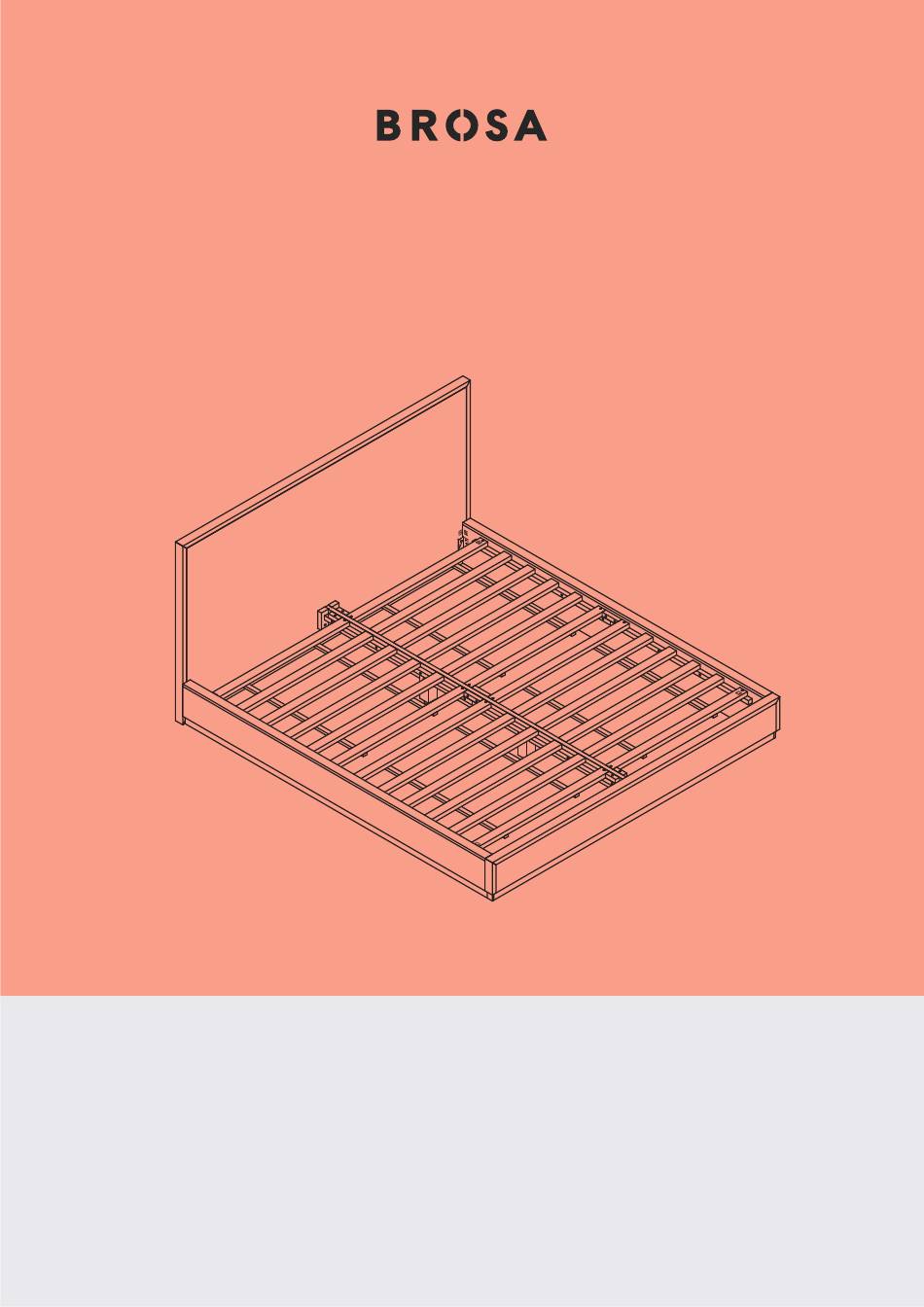

- Page 1 Bruin Wooden Bed Frame A S S E M B LY G U I D E...
- Page 2 F O R Y O U R S A F E T Y Lift, don’t drag. This protects Check the assembly guide your floor and product. for required components. Assembly requires 2 people. Assembling this product on It's always easier with a a soft surface protects its friend.
- Page 3 Components Before you get started, check you have all of the pieces below. If anything’s missing, we’ll sort it out right away. Simply visit: www.brosa.com.au/pages/product-return-and-parts-request ④ Middle Rail x 1 ① Bed Head x 1 ③ ③ Side Board x 2 ②...
-
Page 4: What You Need
Hardware (M8 x 20) (M6 x 75) (3/8) (M6) x 16 (M4 x 25) (M4) (12/13) What You Need... - Page 5 Step 1 Insert a hex flange bolt into the hole of the metal plate on the bed head. Screw it with your hand and leave out some threads for hanging the bracket in the next step. Repeat this for all metal plates on the bed head ①...
- Page 6 Step 2 ③ ① Align both side boards with the bed head and foot board ②. Make sure the stickers on each component match as per the diagram below. Hook the brackets of the side boards to the hex flange bolts installed in Step 1. Tighten the hex flange bolts with the spanner G.
- Page 7 Step 3 Screw the foot stopper to the hole on the bottom of the middle leg ⑤. Repeat this for the other middle leg. ⑤...
- Page 8 Step 4 Align a middle leg with the hole on the beam of the middle rail ④. Insert a long bolt into the hole and make sure it protrudes from the other side. Attach a flat washer to the bolt followed by a nut D.
- Page 9 Step 5 Slide the structure formed in Step 4 into the wooden blocks on the bed head and foot board. Adjust the stoppers beneath the middle legs to make them hang approximately off the ground.
- Page 10 Step 6 Fit the slat sets ⑥ between the wooden blocks on the wooden frame. Make sure the stickers on each component match as per the diagram. ⑥...
- Page 11 Step 7 Insert the screws into the holes on every corner of a slat set and tighten them with a screwdriver. Repeat this for all slat sets. x 16...
- Page 12 Step 8 Place the bed in its desired location and enjoy your new Bruin Wooden Bed Frame!
- Page 13 Warning 1. Please do NOT sit on the bed frame without a mattress. 2. The maximum loading weight for the bed frame is 200kg. Please do NOT exceed the weight limit. MAX. 200 KG...
- Page 14 User Recommendation Assembly 1. Assemble furniture using our Assembly Guides. You can find them at support.brosa.com 2. Do not dispose of any packaging or contents of the shipping carton until assembly is completed to avoid accidentally discarding small parts or hardware.
- Page 15 Exposure 1. Use protective coasters and mats for hot items on the furniture. 2. Keep furniture away from intense direct sunlight. Exposure can cause cracks or discolouration. 3. Severe changes in temperature and humidity can accelerate ageing. Keep furniture at least 60cm from heating or air conditioning. 4.
