- Page 1 LPe11004 HBA Installation Manual Last Updated 6/10/08 Critical Connectivity Solutions...
- Page 2 Information furnished by Emulex is believed to be accurate and reliable. However, no responsibility is assumed by Emulex for its use; or for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent, copyright or related rights of Emulex.
-
Page 3: Table Of Contents
Applying Power... 5 Viewing the LEDs ... 5 POST Conditions and Results ... 5 References ... 7 Specifications ... 7 FCC and Regulatory Notices ... 8 Declaration of Conformity ... 9 Laser Safety Notice ... 11 LPe11004 Hardware Installation Manual Page 1... -
Page 4: Introduction

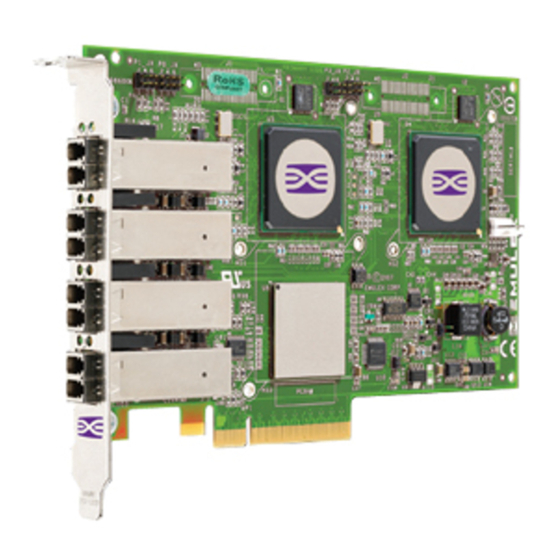

Fibre Channel (FC) Peripheral Component Interconnect Express (PCIe) HBA. The core tech- nology of this HBA is the eighth generation FC controller by Emulex. The controller incorporates a multifunction native PCIe core compliant to the PCIe Base Specification 1.0a and PCI Express CEM Specification 1.0a. - Page 5 Figure 1 shows the jumpering for ports 0 and 1. Figure 1: Port 0 and 1 jumpering Figure 2 shows port 2 and 3 jumpering. Figure 2: Port 2 and 3 jumpering LPe11004 Hardware Installation Manual P1_JX (Port 1) P2_JX (Port 2) 1–2 1–2...
-
Page 6: Installing The Host Bus Adapter
FC connectivity. Since this adapter has four ports, there are four IEEE addresses. The IEEE address is used when configuring your system. The serial number is used when communicating with Emulex. All numbers are clearly marked on the board. We recommend that you record these numbers before installation. -
Page 7: Applying Power
Each port has a set of green and yellow LEDs, visible through openings in the HBA's mounting bracket.Green means firmware operation and yellow means port activity. Figure 4: Port LEDs LPe11004 Hardware Installation Manual Port 0 LEDs Port 1 LEDs... -
Page 8: Post Conditions And Results
3 Fast Blinks Slow Blink Slow Blink Slow Blink Fast Blink Slow Blink Flashing Slow Blink LPe11004 Hardware Installation Manual Green LED Wake-up failure (Dead board) POST failure (Dead board) Wake-up failure monitor POST failure POST processing in progress Failure while functioning... -
Page 9: References
EMC Directives 89/336/EEC and 2004/108/EC (CE Mark) EN55022, Class A EN55024 Australian EMC Framework (C-Tick Mark) AS/NZS CISPR22:2002 Class A Japan VCCI, Class A Taiwan BSMI, Class A Korea MIC, Class A LPe11004 Hardware Installation Manual Table 5: LPe11004 Specifications Range Page 6... -
Page 10: Fcc And Regulatory Notices
The reader is cautioned that changes or modifications made to the equipment not expressly approved by Emulex could void the user's authority to operate this equipment. The above statement applies to products marketed in the USA. - Page 11 WARNING: This is a class A product. In a domestic environment, this product may cause radio interference requiring the user to take adequate measures. Note: Changes or modifications not expressly approved by Emulex Corporation could void the user's authority to operate this equipment.
-
Page 12: Supplementary Information
Emulex Design and Manufacturing Corporation Manufacturer: 3333 Susan Street Costa Mesa, California 92626 USA declares under sole responsibility that the product: LightPulse Product Name: LPe11004-xx Models: P002420-xxx (P001811-xxx) Assembly Number: To which this Declaration relates is in conformity with the following standards or other... -
Page 13: Laser Safety Notice
Emulex Corporation with any questions or concerns about laser safety. Certification and Classification The LPe11004 host adapter may contain a laser product known as a small form factor transceiver. This transceiver provides the physical connection to the optical cable, and its LC-style connector extends through the mounting bracket. -
Page 14: Product Information
Short wave- length and long wavelength small form factor transceivers embedded in Emulex host adapter are non-OFC. For non-OFC links, a compatible laser device must be non-OFC and certified as a Class 1 laser product. - Page 15 Copies of the certificate of conformity for any small form factor transceiver sold by Emulex can be obtained upon request from Emulex Corporation, Costa Mesa. LPe11004 Hardware Installation Manual...
