Summary of Contents for Emulex LP982

  • Page 1: Table Of Contents

    LP982 Installation and Reference Manual Table of Contents Installation Compatibility Prerequisites Install HBA Attach Media Apply Power View LEDs Reference Specifications FCC and Regulatory Notices Declaration of Conformity Laser Safety...

  • Page 2: Compatibility

    Chapter 1 − Installation Table of Contents Compatibility Prerequisites Install HBA Attach Media Apply Power View LEDs...

  • Page 3: Chapter 1 − Installation

    Installation Caution Emulex LightPulse ® Host Bus Adapters (HBAs) contain electronic components that can be damaged by static electricity through an electrostatic discharge (ESD) event. To prevent ESD damage, maintain constant contact with any grounded metal surface. A grounding wrist strap is useful for this purpose.

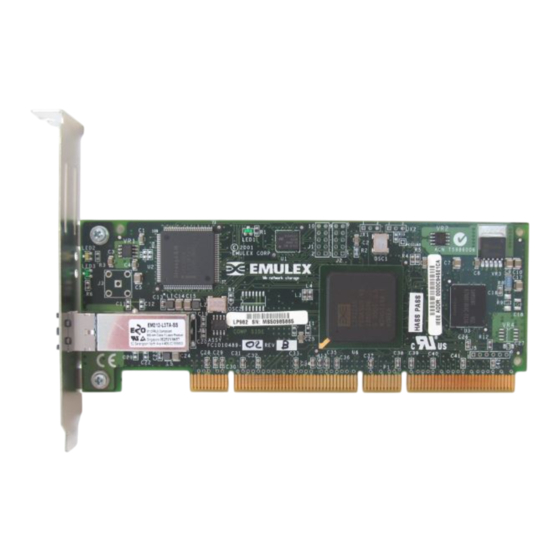

  • Page 4: Install The Host Bus Adapter Board

    Wide Name (WWN) derived from the IEEE address, and this number is needed for Fibre Channel connectivity. The serial number is used when communicating with Emulex. Both numbers are clearly marked on the board. We recommend that you record these numbers before installation.
  • Page 5 Secure the host bus adapter's mounting bracket to the case with the panel screw or clip. Replace the computer case and tighten case screws. The host bus adapter is now installed in the PC and is ready for media attachment.

  • Page 6: Attach Media

    Attach Media Note The host adapter will not allow normal data transmission on an optical link unless it is connected to another similar or compatible laser product (that is, multimode to multimode.) Use multimode fiber optic cable used by short−wave lasers and that adheres to the following specifications: Fiber Optic Cable Maximum Length...

  • Page 7: Apply Power

    Apply Power Verify that the host bus adapter is securely installed in the computer. Verify that the correct media is attached. Plug in and turn on the computer. Observe LEDs for Power On Self Test (POST) results. View LEDs Green and yellow display lights (LEDs) can be seen through openings in the host bus adapter's mounting bracket.

  • Page 8: Specifications

    Emulex Drivers, Software and Manuals Chapter 2 − Reference Table of Contents Specifications FCC and Regulatory Notices Declaration of Conformity Laser Safety...
  • Page 9 5% to 95% non−condensing Agency Class 1 Laser Product per DHHS 21CFR (J) & EN60825 Approvals for UL recognized to UL1950 LP982 CUR recognized to CSA22.2, No.950 Baurt−certified by TUV to EN60950 FCC Rules, Part 15, Class A Industry Canada, ICES−003, Class A...

  • Page 10: Fcc And Regulatory Notices

    The reader is cautioned that changes or modifications made to the equipment not expressly approved by Emulex could void the user's authority to operate this equipment. The above statement applies to products marketed in the USA This class A digital apparatus meets all requirements of the Industry Canada (IC) Interference −...
  • Page 11 Emulex Drivers, Software and Manuals Translation: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. VCCI—A Manual Notice Translation: This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI).

  • Page 12: Declaration Of Conformity

    Declaration of Conformity LP9802−F2/LP982−F2 (2x5 SFF models) Note Changes or modifications not expressly approved by Emulex Corporation could void the user's authority to operate this equipment. This equipment complies with CISPR22/EN55022 Class A. Warning This is a class A product. In a domestic environment, this product may cause radio interference requiring the user to take adequate measures.
  • Page 13 Emulex Drivers, Software and Manuals...

  • Page 14: Laser Safety Notice

    The LP9002, LP9002L, LP952L, LP9002S, LP9002DC, LP9002C, LP9402DC, LP9802 and LP982 PCI host adapters may contain a laser product known as a small form factor transceiver. This transceiver provides the physical connection to the optical cable, and its LC−style connector extends through the mounting bracket.
  • Page 15 In Europe, all optical GLMs, GBICs, 1x9 and small form factor transceivers sold by Emulex are certified as Class 1 laser component assemblies that conform to the requirements contained in the CENELEC (European Committee for Electrotechnical Standardization) standard EN60825−1:1994 (including amendment 11) and EN60825−2:1994.
  • Page 16 Product Information GBIC 1 x 9 Transceiver Small Form Factor Transceiver The optical GLM is a single port communications card. Each communication port consists of a transmitter and receiver optical subassembly. The transmitter subassembly contains a semiconductor laser diode of gallium aluminum arsenide (GaAlAs). This material emits in the wavelength range of 770 to 860 nanometers for shortwave and 1270 to 1355 nanometers for long wave, and are commonly referred to as short wavelength (SW) or long wavelength (LW) lasers.
  • Page 17 Emulex Drivers, Software and Manuals hazardous. No user maintenance, service operations or adjustments can be performed the GBIC. Small Form Factor Transceiver The small form factor transceiver is an integrated duplex data link for bi−directional communications over multimode or single mode optical fiber.
  • Page 18 Short wavelength and long wavelength GBICs allow normal data transmission on the optical link when they are connected to another compatible laser product. Short wavelength and long wavelength GBICs sold by Emulex as accessories are non−OFC devices. For non−OFC links, a compatible laser...
  • Page 19 Class 1 limits. System Level Certification All GLMs and GBICs sold as accessories by Emulex or host adapters containing embedded 1x9 or small form factor transceivers are certified as Class 1 laser products within the U.S. and Class 1 laser component assemblies outside of the U.S.
