LP1050 Installation and Reference Manual

Table of Contents

Install HBA
FCC Statement
Emulex Documentation, Drivers and Software
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP1050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emulex LP1050

Summary of Contents for Emulex LP1050

  • Page 1: Table Of Contents

    Emulex Documentation, Drivers and Software LP1050 Installation and Reference Manual Table of Contents Installation Features Compatibility Prerequisites Install HBA Attach Media Apply Power View LEDs Reference Specifications FCC Statement Declaration of Conformity Laser Safety...

  • Page 2: Installation Features

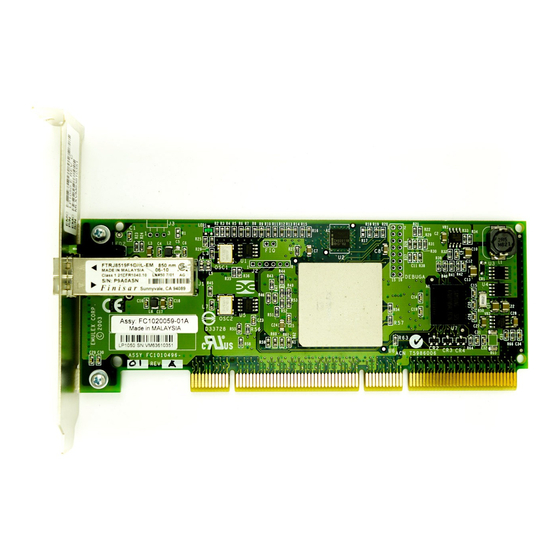

    Installation Features The LP1050 host bus adapter offers a highly integrated 2Gb/s Fibre Channel HBA for use in servers based on either the conventional PCI or PCI-X 1.0a expansion bus architectures. The LP1050 delivers exceptional performance through the use of a sixth generation Emulex Thor controller.

  • Page 3: Prerequisites

    Emulex Documentation, Drivers and Software Prerequisites PCI/PCI-X 32- and 64-bit data and addressing PCI bus computer with a clock rate up to 66 MHz PCI-X bus computer with a clock rate up to 133 MHz Media and connectors...

  • Page 4: Install The Host Bus Adapter Board

    (WWN) derived from the IEEE address, and this number is needed for Fibre Channel connectivity. The IEEE address is used when configuring your system. The serial number is used when communicating with Emulex. All numbers are clearly marked on the board. We recommend that you record these numbers before installation.
  • Page 5 3.11 in. (7.9 cm) compared to 4.75 in. (12.06 cm) long. If you need a low-profile bracket, contact Emulex Product Information by phone at 800-EMULEX-3 (800-368-5393) or 714-885-3450, or by e-mail at info@emulex.com. A low-profile bracket will be shipped within one business day 5.

  • Page 6: Attach Media

    Emulex Documentation, Drivers and Software Attach Media The host bus adapter (HBA) will not allow normal data Note transmission on an optical link unless it is connected to another similar or compatible laser product (that is, multimode to multimode.) Use multimode fiber optic cable, with short-wave lasers, that adheres to the following...

  • Page 7: Apply Power

    Emulex Documentation, Drivers and Software Apply Power 1. Verify that the host bus adapter is securely installed in the computer. 2. Verify that the correct media is attached. 3. Plug in and turn on the computer. 4. Observe LEDs for Power On Self Test (POST) results.
  • Page 8 Emulex Documentation, Drivers and Software Slow blink Fast blink Slow blink Slow blink Slow blink Fast blink Slow blink Flashing Slow blink *A light-emitting diode (LED) is located near the top edge of the board. This LED indicates 3.3V power.

  • Page 9: Reference Specifications

    Emulex Documentation, Drivers and Software Reference Specifications Parameter The Thor controller interfaces to the physical media through an FC-0 Media Interface (FC-PI compliant transceiver), and Media Interface then connects through a single optical fiber LC connector. Low-profile MD2 form factor, 6.600 inches by 2.536 inches,...

  • Page 10: Fcc And Regulatory Notices

    Shielded cables must be used between this equipment and attached peripheral devices. The reader is cautioned that changes or modifications made to the equipment not expressly approved by Emulex could void the user's authority to operate this equipment. The above statement applies to products marketed in the USA This class A digital apparatus meets all requirements of the Industry Canada (IC) Interference - Causing Equipment Standard (ICES-003).
  • Page 11 Emulex Documentation, Drivers and Software Notice for Japan and Translations (VCCI) Product Label This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. VCCI—A...
  • Page 12 Emulex Documentation, Drivers and Software Notice for South Korea and Translations (MIC) Translation: Class A Equipment: Please note that this equipment has been approved for business purposes with regards to electromagnetic interference. If purchased in error for use in a residential area, you may wish to exchange the equipment where...

  • Page 13: Declaration Of Conformity

    This is a class A product. In a domestic environment, Warning this product may cause radio interference requiring the user to take adequate measures. Changes or modifications not expressly approved by Note Emulex Corporation could void the user's authority to operate this equipment. Emulex Documentation, Drivers and Software...
  • Page 14 Emulex Documentation, Drivers and Software...

  • Page 15: Laser Safety Notice

    Gigabaud Link Modules (GLMs), Gigabit Interface Converters (GBICs), 1x9 and small form factor transceivers sold as accessories to or incorporated in Emulex LightPulse host adapters. The GLM, GBIC, 1x9 and small form factor transceiver are the primary cable connection mechanisms for any optical port on the host adapter and hub.
  • Page 16 Emulex Documentation, Drivers and Software In the United States, all optical GLMs, GBICs, 1x9 and small form factor transceivers sold by Emulex are certified as Class 1 laser products that conform to the requirements contained in the Department of Health and Human Services (DHHS) regulation 21 CFR subchapter J.
  • Page 17 Emulex Documentation, Drivers and Software Product Information GBIC 1 x 9 Transceiver Small Form Factor Transceiver The optical GLM is a single port communications card. Each communication port consists of a transmitter and receiver optical subassembly. The transmitter subassembly contains a semiconductor laser diode of gallium aluminum arsenide (GaAlAs).
  • Page 18 Emulex Documentation, Drivers and Software GBIC The optical GBIC is an integrated duplex data link for bi-directional communications over multimode or single mode optical fiber. Each GBIC consists of a transmitter and receiver optical subassembly. The transmitter subassembly contains a semiconductor laser emitting in the wavelength range of 770 to 860 nanometers for shortwave length GBICs and 1270 to 1355 nanometers for long wavelength GBICs.
  • Page 19 Short wavelength and long wavelength GBICs allow normal data transmission on the optical link when they are connected to another compatible laser product. Short wavelength and long wavelength GBICs sold by Emulex as accessories are non- OFC devices. For non-OFC links, a compatible laser device must be non-OFC and...
  • Page 20 GLM, GBIC, 1x9 or small form factor transceiver, and the system level documentation and labeling. Copies of the certificate of conformity for any GLM, GBIC, 1x9 or small form factor transceiver sold by Emulex can be obtained upon request from Emulex Corporation, Costa Mesa.
