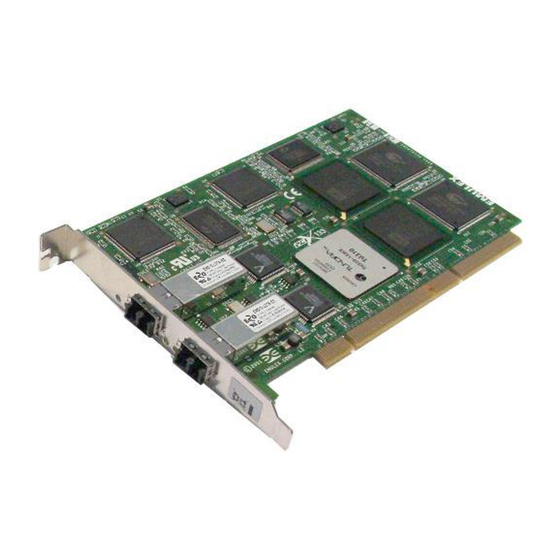

Emulex LP9402DC Installation And Reference Manual

Host bus adapters
Hide thumbs Also See for LP9402DC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Emulex Drivers, Software and Manuals
LP9402DC Installation and Reference Manual

Table of Contents

Installation
Reference
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP9402DC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emulex LP9402DC

Summary of Contents for Emulex LP9402DC

  • Page 1: Table Of Contents

    Emulex Drivers, Software and Manuals LP9402DC Installation and Reference Manual Table of Contents Installation Compatability Prerequisites Install HBA Attach Media Apply Power View LEDs Reference Specifications FCC and Regulatory Notices Declaration of Conformity Laser Safety...

  • Page 2: Compatability

    Emulex Drivers, Software and Manuals Chapter 1 − Installation Table of Contents Compatability Prerequisites Install HBA Attach Media Apply Power View LEDs...

  • Page 3: Installation

    PCI−X bus clock rate up to 133 MHz is supported Note The LP9402DC can only be used in a 3.3V signaling slot. 66 MHz, 64−bit PCI slots and 66/100/133 MHz, 64−bit PCI−X slots are 3.3V signaling slots. The LP9402DC is keyed so it cannot be installed in an incorrect slot.
  • Page 4 Remove the computer case. Remove the blank panel from an empty PCI/PCI−X bus slot. Note The LP9402DC can only be used in a 3.3V signaling slot. 66 MHz, 64−bit PCI slots and 66/100/133, 64−bit PCI−X slots are 3.3V signaling slots. The LP9402DC is keyed so it cannot be installed in an incorrect slot.

  • Page 5: Attach Media

    Connect the other end of the cable to the Fibre Channel device. After the media is connected to the host bus adapter, you are ready to apply power to the computer. Emulex Drivers, Software and Manuals Minimum Length 2 meters...

  • Page 6: Apply Power

    Flashing (Irregular) Slow Blink (1 Hz) Fast Blink (4 Hz) Blink (1 Hz) Emulex Drivers, Software and Manuals State Wake−up Failure (Dead Board). Check the 3.3v led on the HBA (component side) if this LED is lit, the slot is providing 3.3v power.

  • Page 7: Specifications

    Emulex Drivers, Software and Manuals Chapter 2 − Reference Table of Contents Specifications FCC and Regulatory Notices Declaration of Conformity Laser Safety...
  • Page 8 TUV certified to EN60950 FCC Rules, Part 15, Class A Industry Canada, ICES−003, Class A EMC Directive 89/336/EEC (CE Mark) EN55022, Class A EN55024 Australian EMC Framework (C−Tick Mark) AS/NZS 3548: Class A VCCI, Class A Emulex Drivers, Software and Manuals...

  • Page 9: Fcc And Regulatory Notices

    Shielded cables must be used between this equipment and attached peripheral devices. The reader is cautioned that changes or modifications made to the equipment not expressly approved by Emulex could void the user's authority to operate this equipment. The above statement applies...
  • Page 10 Consult the dealer or an experienced radio/TV technician for help. The reader is cautioned that any changes or modifications to the equipment not expressly approved by Emulex could void the user’s authority to operate this equipment. This class B digital apparatus meets all requirements of the Canadian Interference −...
  • Page 11 Emulex Drivers, Software and Manuals Translation: This is a Class B product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used near a radio or television receiver in a domestic environment, it may cause radio interference.

  • Page 12: Declaration Of Conformity

    LP9002 / LP9002L / LP952L / LP9002S / LP9002C / LP9002DC / LP9402DC−F2 (2x5 SFF models) Note Changes or modifications not expressly approved by Emulex Corporation could void the user's authority to operate this equipment. This equipment complies with CISPR22/EN55022 Class A.
  • Page 13 − Australian EMC Framework (Carries the C−Tick mark accordingly) February 22, 2002 Costa Mesa, CA European Emulex Corporation Contact: 7 & 8 Forrest Court, Oaklands Park, Fishponds Road Wokingham, Berkshire, RG41 2FD, England Emulex Drivers, Software and Manuals Telephone: 44−118−977−2929 Fax: 44−118−977−3237...

  • Page 14: Laser Safety Notice

    PCI slot. The LP9002, LP9002L, LP952L, LP9002S, LP9002DC, LP9002C, and LP9402DC PCI host adapters may contain a laser product known as a small form factor transceiver. This transceiver provides the physical connection to the optical cable, and its LC−style connector extends through the mounting bracket.

  • Page 15: Labeling Requirements

    In Europe, all optical GLMs, GBICs, 1x9 and small form factor transceivers sold by Emulex are certified as Class 1 laser component assemblies that conform to the requirements contained in the CENELEC (European Committee for Electrotechnical Standardization) standard EN60825−1:1994 (including amendment 11) and EN60825−2:1994.

  • Page 16: Product Information

    The power emitted from either an open fiber or open laser transmitter is guaranteed to be below the Class 1 limit. Class 1 laser products are not considered hazardous. No user Emulex Drivers, Software and Manuals...
  • Page 17 Class 1 limits established in the U. S. by the DHHS and within Europe by EN60825−1/EN60825−2. GBIC 1 x 9 Transceiver Small Form Factor Transceiver Emulex Drivers, Software and Manuals Back to top...
  • Page 18 Short wavelength and long wavelength GBICs allow normal data transmission on the optical link when they are connected to another compatible laser product. Short wavelength and long wavelength GBICs sold by Emulex as accessories are non−OFC devices. For non−OFC links, a compatible laser device must be non−OFC and certified as a Class 1 laser product.
  • Page 19 Emulex Drivers, Software and Manuals Class 1 laser product. Any system level product that incorporates the small form factor transceivers must provide power supply protection that guarantees a voltage of 5.0 volts or less at the small form factor transceivers. The functional power supply range of the small form factor transceivers product is specified as 3.135 to 3.465V...
  • Page 20 Emulex Drivers, Software and Manuals System Level Certification All GLMs and GBICs sold as accessories by Emulex or host adapters containing embedded 1x9 or small form factor transceivers are certified as Class 1 laser products within the U.S. and Class 1 laser component assemblies outside of the U.S.
