Summary of Contents for Emulex LP10000ExDC

  • Page 1: Table Of Contents

    Emulex Documentation, Drivers and Software LP10000ExDC Installation and Reference Manual Table of Contents Installation Features Compatibility Prerequisites Set Jumpers Install HBA Attach Media Apply Power View LEDs Reference Specifications FCC Statement Declaration of Conformity Laser Safety...

  • Page 2: Installation Features

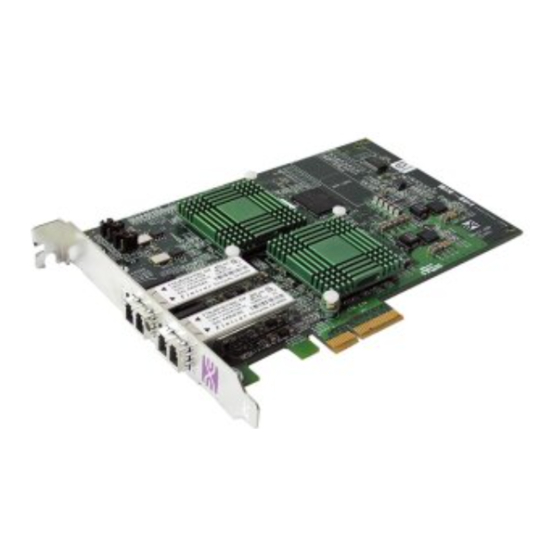

    LP10000 family and is designed for use with PCI-Express servers. The LP10000ExDC HBA delivers state of the art performance through the use of "Thor", Emulex’s sixth generation Fibre Channel controller and is a dual channel HBA in a standard height, half-length card form factor.
  • Page 3 Internal SerDes 1Gb/2Gb core High speed QDR II external memory with separate read and write data paths Host Interface via Emulex standard drivers or through custom drivers written to the Emulex Service Level Interface (SLI-2) that is compatible with the LP7000/LP8000/...

  • Page 4: Compatibility

    Emulex Documentation, Drivers and Software Up to 510 FC Port Logins Up to 2048 concurrent Exchanges I/O multiplexing down to FC Frame level Large data buffers capable of supporting 101 buffer-to-buffer (BB) credits per port for short-wave applications. Link management and recovery handled by Firmware...

  • Page 5: Set Jumpers

    Emulex Documentation, Drivers and Software Set Jumpers Emulex LightPulse Caution electronic components that can be damaged by static electricity through an electrostatic discharge (ESD) event. To prevent ESD damage, maintain constant contact with any grounded metal surface. A grounding wrist strap is useful for this purpose.

  • Page 6: Install The Host Bus Adapter Board

    Since this adapter has two ports, there are two IEEE addresses. The IEEE address is used when configuring your system. The serial number is used when communicating with Emulex. All numbers are clearly marked on the board. We recommend that you record these numbers before installation.

  • Page 7: Attach Media

    Emulex Documentation, Drivers and Software Attach Media The host bus adapter will not allow normal data Note transmission on an optical link unless it is connected to another similar or compatible laser product (that is, multimode to multimode.) Use multimode fiber optic cable, with short-wave lasers, that adheres to the following...

  • Page 8: Apply Power

    Emulex Documentation, Drivers and Software Apply Power 1. Verify that the host bus adapter is securely installed in the computer. 2. Verify that the correct media is attached. 3. Plug in and turn on the computer. 4. Observe LEDs for Power On Self Test (POST) results.
  • Page 9 Emulex Documentation, Drivers and Software Fast blink Normal operating condition - 2 Gb link rate Slow blink Normal - link down or not yet started Slow blink Slow blink Offline for download Fast blink Slow blink Restricted offline mode (waiting for restart)

  • Page 10: Reference Specifications

    Emulex Documentation, Drivers and Software Reference Specifications Parameter Media Interface Physical Dimensions Power Requirements (Watts, Typ/ Max) Airflow Temperature Humidity Agency Approvals for LP10000ExDC Range The Thor controller interfaces to the physical media through an FC-0 Media Interface (FC-PI compliant transceiver), and then connects through dual optical fiber LC connectors.

  • Page 11: Fcc And Regulatory Notices

    The reader is cautioned that changes or modifications made to the equipment not expressly approved by Emulex could void the user's authority to operate this equipment. The above statement applies to products marketed in the This class A digital apparatus meets all requirements of the Industry Canada (IC) Interference - Causing Equipment Standard (ICES-003).
  • Page 12 Emulex Documentation, Drivers and Software Notice for Japan and Translations (VCCI) Product Label This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. VCCI—A...
  • Page 13 Emulex Documentation, Drivers and Software Notice for South Korea and Translations (MIC) Translation: Class A Equipment: Please note that this equipment has been approved for business purposes with regards to electromagnetic interference. If purchased in error for use in a...

  • Page 14: Declaration Of Conformity

    This is a class A product. In a domestic environment, this Warning product may cause radio interference requiring the user to take adequate measures. Changes or modifications not expressly approved by Note Emulex Corporation could void the user's authority to operate this equipment. Emulex Documentation, Drivers and Software...
  • Page 15 Emulex Documentation, Drivers and Software...

  • Page 16: Laser Safety Notice

    (GBICs), 1x9 and small form factor transceivers sold as accessories to or incorporated in Emulex LightPulse host adapters. The GLM, GBIC, 1x9 and small form factor transceiver are the primary cable connection mechanisms for any optical port on the host adapter and hub.
  • Page 17 Emulex Documentation, Drivers and Software In the United States, all optical GLMs, GBICs, 1x9 and small form factor transceivers sold by Emulex are certified as Class 1 laser products that conform to the requirements contained in the Department of Health and Human Services (DHHS) regulation 21 CFR subchapter J.
  • Page 18 Emulex Documentation, Drivers and Software Product Information GBIC 1 x 9 Transceiver Small Form Factor Transceiver The optical GLM is a single port communications card. Each communication port consists of a transmitter and receiver optical subassembly. The transmitter subassembly contains a semiconductor laser diode of gallium aluminum arsenide (GaAlAs).
  • Page 19 Emulex Documentation, Drivers and Software GBIC The optical GBIC is an integrated duplex data link for bi-directional communications over multimode or single mode optical fiber. Each GBIC consists of a transmitter and receiver optical subassembly. The transmitter subassembly contains a semiconductor laser emitting in the wavelength range of 770 to 860 nanometers for shortwave length GBICs and 1270 to 1355 nanometers for long wavelength GBICs.
  • Page 20 Short wavelength and long wavelength GBICs allow normal data transmission on the optical link when they are connected to another compatible laser product. Short wavelength and long wavelength GBICs sold by Emulex as accessories are non- OFC devices. For non-OFC links, a compatible laser device must be non-OFC and...
  • Page 21 Class 1 limits. System Level Certification All GLMs and GBICs sold as accessories by Emulex or host adapters containing embedded 1x9 or small form factor transceivers are certified as Class 1 laser products within the U.S. and Class 1 laser component assemblies outside of the U.
