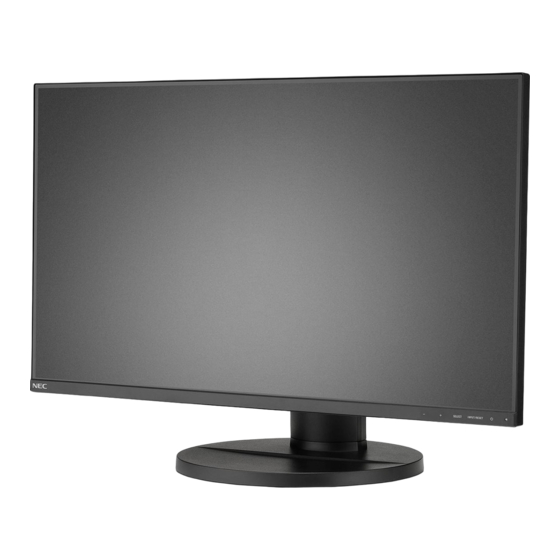

Desktop Monitor
MultiSync E271N
User's Manual
MODEL: M277D4
Please find your model name in the label on the rear side of the monitor.

Advertisement

loading

  Related Manuals for NEC MultiSync E271N

  Summary of Contents for NEC MultiSync E271N

  • Page 1 Desktop Monitor MultiSync E271N User’s Manual MODEL: M277D4 Please find your model name in the label on the rear side of the monitor.
  • Page 2: Table Of Contents

    Index WARNING ............................English-1 CAUTION .............................English-1 Registration Information .......................English-2 Recommended use ........................English-3 Safety Precautions and Maintenance ..................English-3 Ergonomics ..........................English-4 Cleaning the LCD Panel .......................English-4 Cleaning the Cabinet ......................English-4 Parts Name and Functions ......................English-5 Quick Start ............................English-6 Controls ............................English-11 Specifications ..........................English-15 Features ............................English-17 Troubleshooting ..........................English-18 Manufacturer’s Recycling and Energy Information ...............English-19...
  • Page 3: Warning

    CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is not supplied with this equipment, please contact NEC. For all other cases, please use the power cord with the plug style that matches the power socket where the monitor is located.
  • Page 4: Registration Information

    This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. U.S. Responsible Party: NEC Display Solutions of America, Inc. Address: 500 Park Boulevard, Suite 1100 Itasca, Illinois 60143 Tel.
  • Page 5: Recommended Use

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle, or turn off the monitor when not in use.
  • Page 6: Ergonomics

    CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER, AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR: Ergonomics To realize the maximum ergonomics benefits, we recommend the following: • For optimum performance of the monitor, allow 20 minutes for warming up. Avoid reproduction of still patterns on the monitor for long periods of time to avoid image persistence (after image effects).
  • Page 7: Parts Name And Functions

    Parts Name and Functions Control Panel Power Key Control buttons Refer to the Controls section. See page Terminal Panel AC IN Connector Headphone Jack Connects with the supplied power cord. Connects with headphones. CAUTION: Do not connect headphones to the monitor DisplayPort IN while you are wearing them.
  • Page 8: Quick Start

    Quick Start For box contents, please refer the printed contents sheet provided in the box. To attach the base and cable holder to the LCD stand: 1. Place monitor face down on a non-abrasive surface (Figure 1). 2. Please rotate the stand 90 degrees as shown in Figure 1. CAUTION: Handle with care when pulling the stand.
  • Page 9 3. Place hands on each side of the monitor to tilt the LCD panel to a maximum tilt angle and lift up to the highest position. 4. Connect all cables to the appropriate connectors (Figure C.1). Maximum Tilt Headphone Highest Stand Position DisplayPort...
  • Page 10 8. Turn on the monitor by touching the power key and then the computer (Figure E.1). 9. No Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup. For further adjustments, use the following OSD controls: • AUTO CONTRAST (Analog input only) •...
  • Page 11 Flexible Arm Installation This LCD monitor is designed for use with a flexible arm. Contact NEC for more information. To prepare the monitor for alternate mounting purposes: • Follow the instructions provided by the manufacturer of the display mount. CAUTION: To meet the safety requirements, the monitor must be mounted to an arm that supports the weight of the monitor.
  • Page 12 Re-attaching the original stand Reverse the process in the previous section to re-attach stand. NOTE: Match “TOP SIDE” mark on stand to top side of the monitor when re-attaching stand. “TOP SIDE” mark Please match top side of the monitor Attaching VESA Plate for Thin Client Computer This LCD monitor is designed for mounting a thin client computer by using a VESA plate and screws.
  • Page 13: Controls

    Controls OSD (On-Screen Display) Control Functions 1. Basic functions of the touch keys on the front of the monitor – SELECT INPUT/RESET OSD Menu Not displaying on screen Shortcut to Brightness. Shortcut to Volume. Displays OSD. Selects input signal. Displaying on screen Moves leftward.
  • Page 14 VOLUME Controls the volume of the speakers or headphones. To mute the speaker output select Audio icon and touch “INPUT/RESET” key. BRIGHTNESS Adjusts the overall image and background screen brightness. Touch “INPUT/RESET” key to enter ECO MODE. ECO MODE OFF: Sets brightness variable from 0% to 100%. ECO MODE1: Sets brightness 70%.
  • Page 15 FACTORY PRESET Selecting Factory Preset allows you to reset all OSD control settings back to the factory settings except MUTE, CARBON SAVINGS, CARBON USAGE, and SIGNAL INFORMATION. Individual settings can be reset by highlighting the control to be reset and touching the INPUT/RESET key. EXIT Selecting EXIT allows you to exit OSD menu/sub menu.
  • Page 16 OSD TOOL LANGUAGE Selects the language used by the OSD. OSD TURN OFF The OSD menu will stay on as long as it is in use. You can select how long the monitor waits after the last key touch to shut off the OSD menu.
  • Page 17: Specifications

    Specifications Monitor Specifications MultiSync E271N Monitor Notes LCD Module Diagonal: 68.6 cm/27.0 inches Active matrix; thin film transistor (TFT) liquid crystal Viewable Image Size: 68.6 cm/27.0 inches display (LCD); 0.311 mm dot pitch; 250 cd/m white Native Resolution (Pixel Count): 1920 x 1080 luminance;...
  • Page 18 Major supported timings Resolution Vertical Frequency Notes 60/72/75 Hz 70 Hz 70 Hz 60 Hz 50 Hz 56/60/72/75 Hz SVGA 1024 60/70/75 Hz 1280 50/60 Hz HD 720 1280 60/75 Hz Quad-VGA 1280 1024 60/75 Hz SXGA 1440 60 Hz WXGA+ 1680 1050...
  • Page 19: Features

    This monitor has a manufacturing carbon footprint of approximately 75.3 kg. Note: The manufacturing and operating carbon footprints are calculated by a unique algorithm developed exclusively by NEC for its monitors and are accurate at the time of printing. NEC reserves the right to publish updated carbon footprint values. English-17...
  • Page 20: Troubleshooting

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 21: Manufacturer's Recycling And Energy Information

    Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life.
