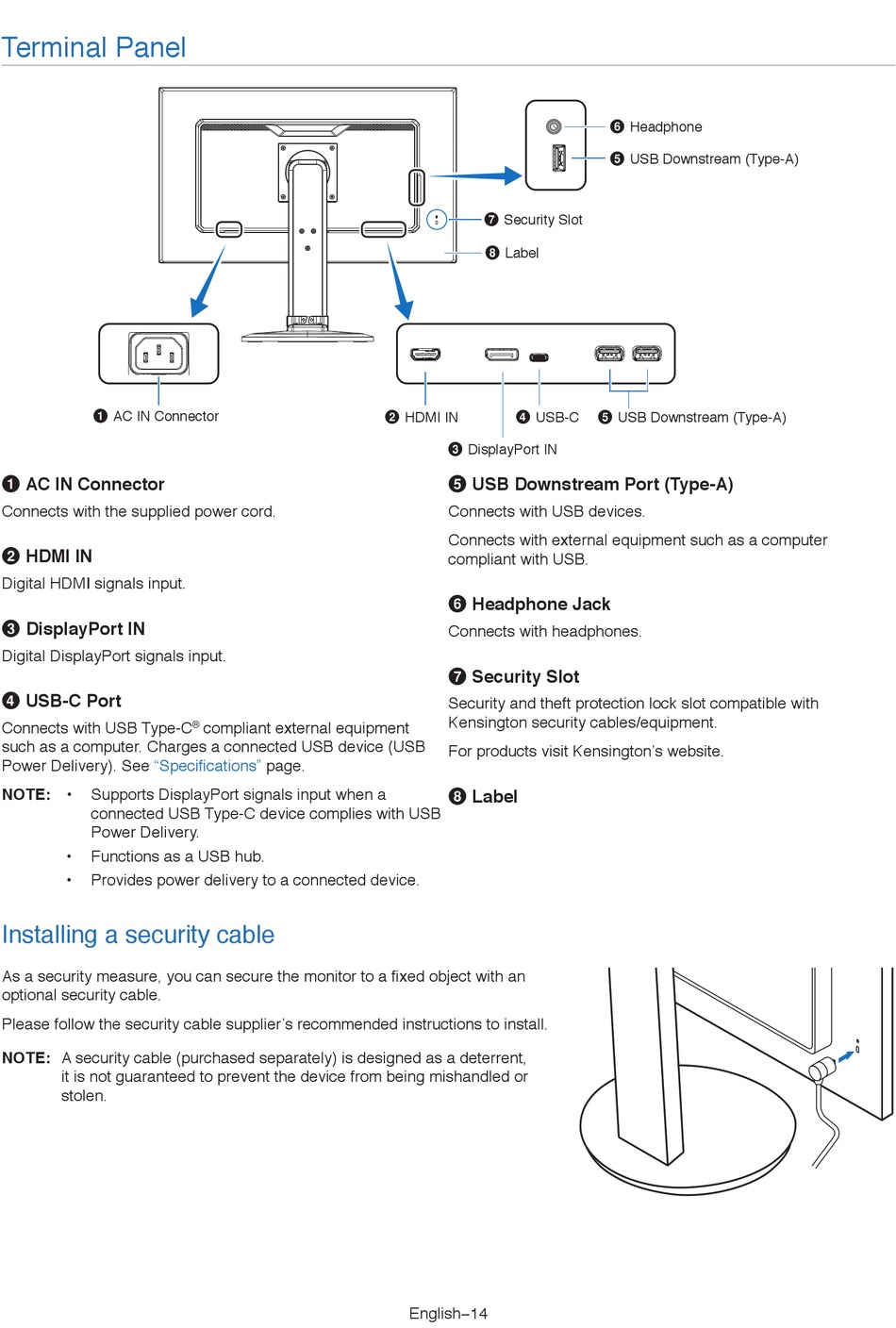

Terminal Panel

1 AC IN Connector
1 AC IO Connector
Connects with the supplied power cord.
2 HDMI IO
Digital HDMI signals input.
3 DisplayPort IO
Digital DisplayPort signals input.
4 USB-C Port
Connects with USB Type-C
such as a computer. Charges a connected USB device (USB
Power Delivery). See "Specifications"
OOTEN •
Supports DisplayPort signals input when a


connected USB Type-C device complies with USB
Power Delivery.
•
Functions as a USB hub.
•
Provides power delivery to a connected device.
Installing a security cable
As a security measure, you can secure the monitor to a fixed object with an
optional security cable.
Please follow the security cable supplier's recommended instructions to install.
OOTEN:
A security cable (purchased separately) is designed as a deterrent,


it is not guaranteed to prevent the device from being mishandled or
stolen.
compliant external equipment
®
page.
7 Security Slot
8 Label
2 HDMI IN 4 USB-C
3 DisplayPort IN
5 USB Downstream Port (Type-A)
Connects with USB devices.
Connects with external equipment such as a computer
compliant with USB.
6 Headphone Jack
Connects with headphones.
7 Security Slot
Security and theft protection lock slot compatible with
Kensington security cables/equipment.
For products visit Kensington's website.
8 Label
English−14
6 Headphone
5 USB Downstream (Type-A)
5 USB Downstream (Type-A)
