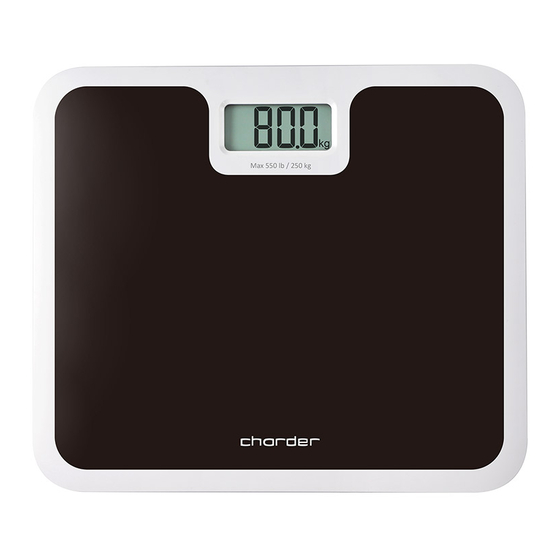

- Page 1 USER MANUAL MS7301 Stand-on Floor Scale Please keep the instruction manual at hand all the time for future reference.
- Page 2 Instead, take them to designated collection points for electronics. Carefully read user manual before installation and usage, and follow instructions for use. Manufacturing date Lot number or batch number Charder Electronic Co., Ltd. No. 103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan...
- Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 4: Table Of Contents
CONTENTS I. Safety Notes ................5 II. Quick Guide ................8 A. Contents ................8 B. Inserting Batteries ............... 9 C. Unit Selection (kg/lb) ............9 III. Using Device ..............10 IV. Troubleshooting ..............11 V. Product Specifications ............13... -
Page 5: Safety Notes
I. Safety Notes General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
- Page 7 Warning Only the original adaptor should be used with the device. Using an adapter other than the one provided by Charder may cause malfunction. Do not touch the power supply with wet hands. Do not crimp the power cable, and avoid sharp edges.
-
Page 8: Quick Guide
II. Quick Guide A. Contents Reset button Unit switch (Contact distributor (kg/lb) before resetting) Battery cover Feet*4 Battery symbol (low/depleted) -
Page 9: Inserting Batteries
B. Inserting Batteries 1. Open the battery housing cover on bottom of device. 2. Insert batteries as indicated in battery compartment (AA*4) Note: when depleted battery symbol appears, replace all four batteries with new ones. Remove batteries from device before placing into long-term storage (>3 months) to avoid device damage. -
Page 10: Using Device
III. Using Device 1. Place device on hard, flat, non-slippery surface. NOTE: do not place device on soft surfaces (e.g. carpet, mats) 2. Step onto device. Device will automatically power-on and take weight measurement. NOTE: Remain still during measurement. Measure weight at the same time (ideally morning) for consistency. -
Page 11: Troubleshooting
Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit. - Page 12 Error Messages Error Message Reason Action Batteries are low Replace batteries with new ones before depletion. Batteries are depleted. Replace batteries with new ones. Movement during Do not move until measurement. measurement is completed. Device error. Contact your distributor. Weight exceeds capacity Allowable weight range: 15-250kg (33-550lb) Misalignment during...
-
Page 13: Product Specifications
V. Product Specifications Device Information Model MS7301 Weight Capacity 15-100kg x 0.1kg Measurement (33-220lb x 0.2lb) 100-250kg x 0.2kg (220-550lb x 0.5lb) Accuracy 15-40kg±0.4kg (33-88lb±0.88lb) 40-250kg±1% (88-550lb±1%) IP21 Classification Dimensions Device 415(W) x 360(D) x 41(H) mm 1 3/5”(H) x 16 1/3” (W) x 14 1/5”(D) Weight ~3.5kg (7.7 lb) including batteries... - Page 14 Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-1406 REV 001 03/2020...
