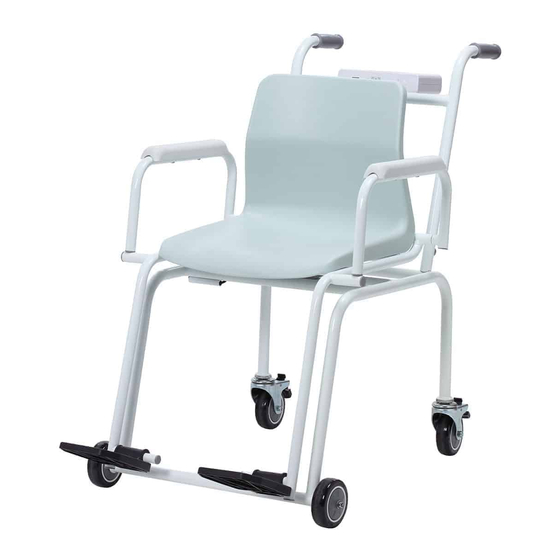

- Page 1 USER MANUAL MS5810/MS5811 Chair Scale Please keep the instruction manual at hand all the time for future reference.
- Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Separate collection for accompanying documents waste of electrical and before use electronic equipment, in accordance with Directive 2002/96/EC Manufacturer of medical Manufacturing year of device medical device Carefully read user manual Medical electrical before installation and equipment with Type B usage, and follow...
- Page 3 Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 4: Table Of Contents
CONTENTS I. Safety Notes ................5 A. General Information ............5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. Assembling device .............12 B. Adjusting wheel height ............16 C. Inserting Batteries .............17 D. Using Adapter ..............17 III. Indicator ................18 A. -
Page 5: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 6 All maintenance, technical inspections, and repairs should be conducted by an authorized Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Disposal This product is not to be treated as regular household waste, but ...
- Page 7 Do not under any circumstances dismantle or alter the device, as this could result in electric shock or injury as well as adversely affect the precision of measurements. Do not place the device in direct sunlight, or in close proximity to an intense heat source.
-
Page 8: Emc Guidance And Manufacturer's Declaration
B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS5810/MS5811 Chair Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. - Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MS5810/MS5811 Chair Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance...
- Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS5810/MS5811 Chair Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance...
- Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS5810/MS5811 Chair Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
-
Page 12: Installation
II. Installation A. Assembling device 1. Rotate armrests to the top 2. Confirm that castor wheels and brakes are functioning normally... - Page 13 3. Rotate footrest down 4. Insert handlebar and secure using two hexagon head screws Hexagon head screws...
- Page 14 5. Insert back frame...
- Page 15 6. Secure seat to frame using screws...
-
Page 16: Adjusting Wheel Height
B. Adjusting wheel height 1. Place device on flat surface, apply wheel brakes Brakes 2. To tighten wheel castor, loosen counternut slightly. After loosening, turn wheel frame clockwise to tighten. Counternut Wheel frame 3. Adjust wheel height until air bubble on level indicator is level NOTE: Be careful not to lose wheels during adjustment... -
Page 17: Inserting Batteries
C. Inserting Batteries 1. Open battery housing cover 2. Remove battery housing 3. Insert batteries 4. When inserting battery housing, ensure contact with housing pins is correct. 5. Close battery housing cover. D. Using Adapter 1. Connect adapter to indicator before connecting to mains power supply 2. -
Page 18: Indicator
Height (lb only available on MS5810) Key Function (UNIT): Switch between units (MS5810 only) (PRINT): When printer or PC is connected to the scale, press this key to print results. (ON/OFF/ZERO): Turn device on and off. Press and hold for 3 seconds to turn device off. -
Page 19: Display Layout
B. Display layout Stable Hold Negative Zero Gross Battery level Hold: Hold function is activated BMI: BMI function is activated kg: Current unit is kg lb: Current unit is lb Stable: Weight is stable. Net: Current result is net weight Negative: Weight is under zero Zero: Weight is at zero Gross: Current result is gross weight. -
Page 20: Using Device
IV. Using Device A. Basic Operation Switch on the device using key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press key to zero the device. -
Page 21: Bmi
C. BMI 1. Weigh subject normally. After "stable" symbol appears on indicator, press the key to enter BMI mode. 2. Display will show last recorded height. Left-most digit will flash. 3. Enter height using numeral keys (ex: 170 cm). Input will automatically move to next digit. -
Page 22: Device Setup
V. Device Setup When the device is switched on, press and hold the key for about 3 seconds, until the display shows the "SEt”, followed by "A.OFF” (first option in setting menu). In device setup menu: to toggle menu option to confirm selection / enter submenu Auto Power-Off: Instruct device to shut off automatically after a certain period of time. -
Page 23: Setup Usb Connection To Pc
For successful connection, PC hardware must be connected to device using manufacturer's designated RS232 cable. 1. Hyper Terminal freeware software can be used to connect the device to a PC. The software program can be downloaded from the Charder website: [LINK URL] https://www.chardermedical.com/download.htm 2. - Page 24 2. Name the connection and click 3. Select COM (1, 2, 3, 4...) under [OK]. "Connect using" dropdown menu, and press [OK]. 4. Set Port Settings as below: Baud rate: 9600 Bits per second Data bits: 8 Parity check: None ...
-
Page 25: Troubleshooting
VII. Troubleshooting Before contacting your local Charder distributor for repair service, we recommend considering the following troubleshooting procedures: Self-inspection 1. Device will not power on If battery power is depleted, replace with new batteries If batteries are not used, check if the power adapter is plugged into ... - Page 26 2. Indicator damage Possible hardware defects include: uneven brightness in LCD screen, blurred text, smeared rainbow screen, incorrect decimal display Unable to save or read data Indicator shows "ERRL" after device is switched on Keys not responding ...
-
Page 27: Product Specifications
Armrest Height: 720 mm Device Weight 18 kg Key Functions On/Off/Zero, Hold/BMI, Unit (active on MS5810 only), Print, Tare Data Transmission RS232 NOTE: Device should be connected to network by qualified distributors only Power Supply 6 AA batteries / Power adapter Operation Temperature &... -
Page 28: Declaration Of Conformity
Non-automatic Weighing Instruments Directive (MS5811 only) Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-1147 9097Q 04/2021...
