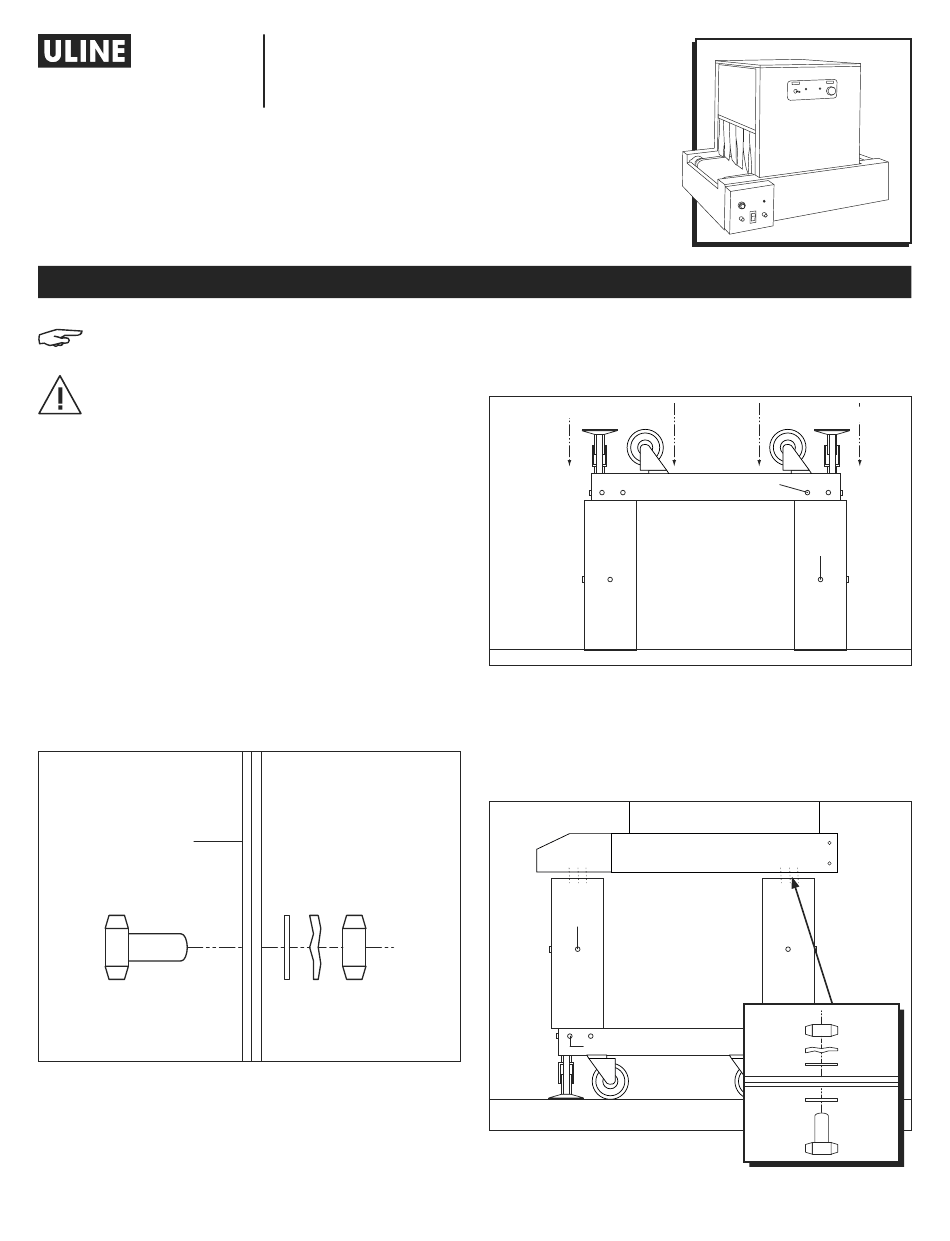

U-Line H-2035 Installation And Setup

H-2035
SHRINK TUNNEL
LEG KIT
NOTE: Leg kit works with both US model H-2034
and Canada model H-4018.
CAUTION! Assembling the leg kit to the
conveyor can be dangerous. Two people or
a mechanical lift device must be used to
position the conveyor above the leg kit until
they are attached.
SETUP INSTRUCTIONS
1. Remove the leg kit from the crate. Inspect for
damage.
2. To adjust leg length, remove shipping bolts from legs
(1 bolt per leg). Adjust leg length by measuring the
desired height and subtracting 12" to account for
the conveyor and caster height.
3. Place legs upside down on floor. Position shelf on
legs. Insert socket screws through shelf and each leg
from outside (7 places per leg). Tighten screws with
flat washers, lock washers and nuts. Use a socket
wrench. (See Figure 1)
Outside
PAGE 1 OF 3
1-800-295-5510
uline.com
LEG KIT INSTALLATION AND SETUP
Figure 1
4. Screw feet into threaded holes provided on bottom
of the shelf. Insert casters into nylon insert next to
feet. (See Figure 2)
Upside Down View
5. Turn the leg kit right side up. Place conveyor on top
of the leg kit assembly. Insert hex bolts through the
conveyor and leg kit (2 bolts per corner). Tighten
bolts with flat washers, lock washers and nuts.
(See Figure 3)
Hex
Bolt
Socket Screw
Para Español, vea página 2.
Pour le français, consulter la page 3.
Figure 2
Socket Screw
Hex
Bolt
Figure 3
0521 IH-2035
