MODEL: 11213619

3 STORAGE BIN CABINET

Need help?

Do you have a question about the 11213619 and is the answer not in the manual?

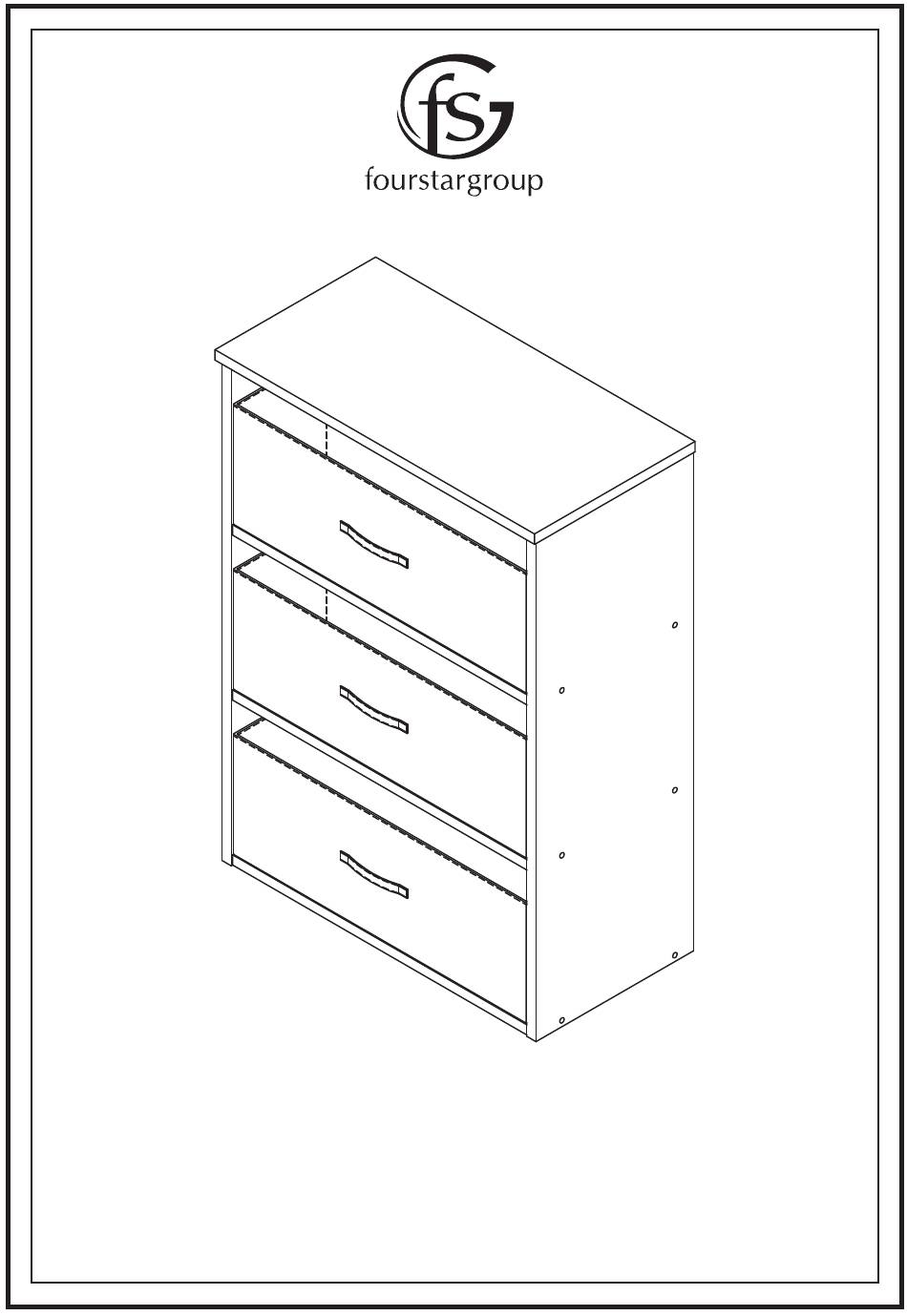

Page 1 MODEL: 11213619 3 STORAGE BIN CABINET...
Page 2 PARTS LIST AND HARDWARE...
Page 3 BEFORE YOU BEGIN , PLEASE FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION: 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
Page 4 ASSEMBLY INSTRUCTIONS STEP 1 1.1 INSTALL DOWEL (1) TO SIDE PANEL (A & B) WITH GLUE (4). 1.2 INSTALL DOWEL (2) TO BACK PANEL (F) WITH GLUE (4). DOWEL - M6x30mm 2PCS DOWEL - M5x20mm 2PCS GLUE...
Page 5 STEP 2 -ATTACH FIX PANEL (D) TO SIDE PANEL (A) & (B) AND BACK PANEL (F) WITH GLUE (3). SCREW 18PCS GLUE...
Page 6 STEP 3 -ATTACH TOP PANEL (C) TO SIDE PANEL (A & B) AND BACK PANEL (F) WITH GLUE (4). DOWEL - M6x30mm 2PCS DOWEL - M5x20mm 2PCS GLUE...
Page 7 STEP 4 -UNFOLD THE DRAWER (E) AND PUT IN THE CARDBOARD, AS SHOWEN. -SLIDE THE DRAWER (G) TO THE ASSEMBLED CABINET AS SHOWN.
Page 8 Please include the following information in your email: Do you have any questions? Missing small parts or hardware? • Where item was purchased If you need assistance with the assembly of your • Item, model, style or SKU number listed on instructions 3 STORAGE BIN CABINET or box please e-mail our Customer Service Department at:...
