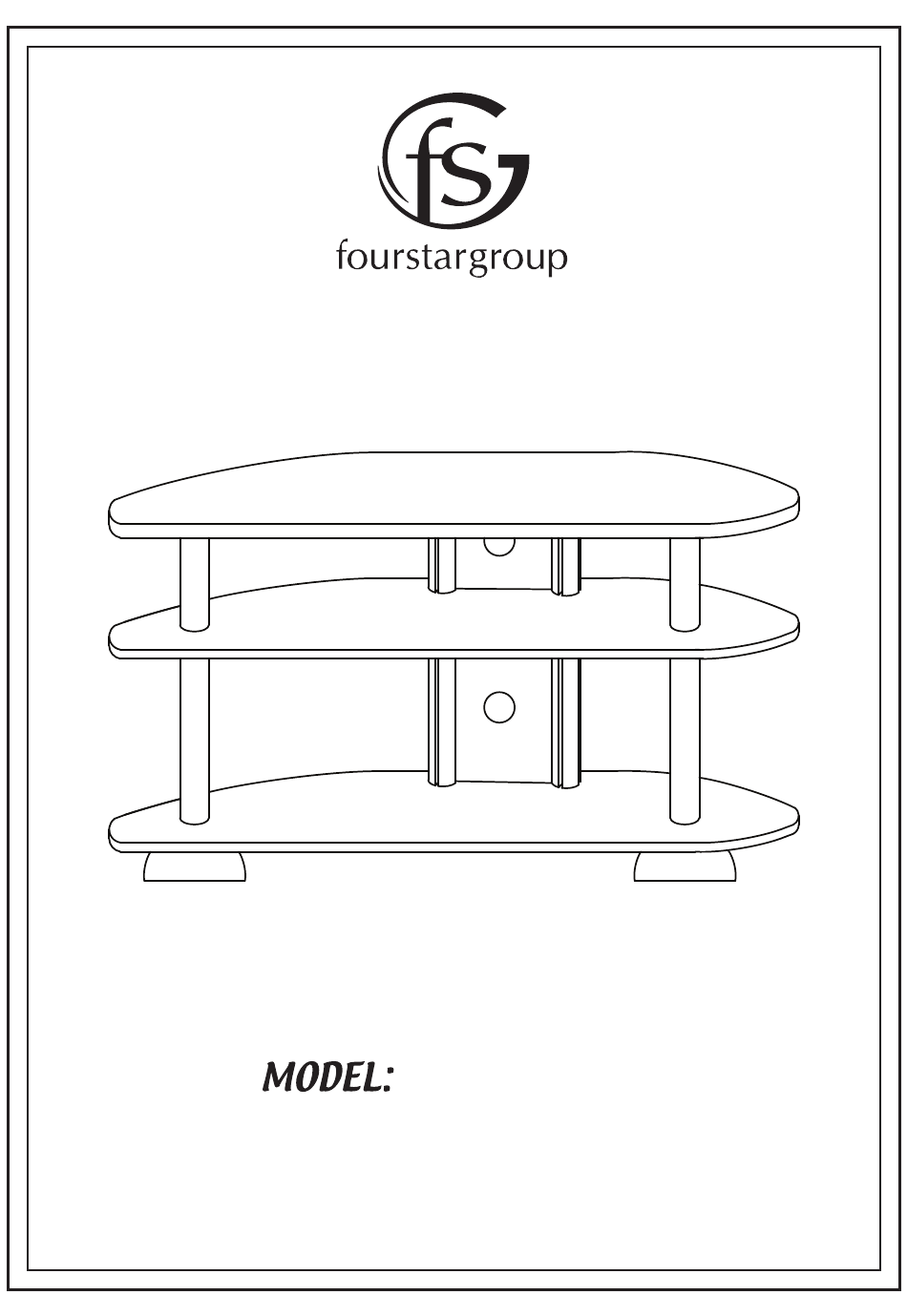

- Page 1 11210603V ENTERTAINMENTCENTER...
-
Page 2: Hardware List
PARTS HARDWARE LIST LONG TUBE 2 pcs SHORT TUBE 2 pcs LONG 2 pcs ENGROVE TUBE SHORT 2 pcs ENGROVE TUBE INSERT CAP 4 pcs 2 pcs NO-TIP FEET 2 pcs PARTS LIST TOP PANEL 1 pc SHELF PANEL 1 pc BOTTOM PANEL 1 pc UPPER BACK PANEL... - Page 3 BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION : 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 PRESS INSERT CAPS ( 5 ) INTO TOP PANEL ( A ) AS SHOWN. UNFINISHED SURFACE USING EITHER A SOFT RUBBER MALLET OR BY FIRMLY PRESSING THE INSERT CAPS INTO THE TOP PANEL USING THE FLAT SIDE OF A BOOK OR OTHER HARD FLAT SUREFACE TO PRESS THE CAPS INTO THE PANEL.
- Page 5 STEP 2: ATTACH SHORT TUBES ( 2 ) AND SHORT ENGROVE TUBES ( 4 ) TO INSERT CAP ( 5 ) AS SHOWN. UNFINISHED SURFACE 2 SHORT TUBE - 2 PCS 4 SHORT ENGROVE TUBE - 2 PCS...
- Page 6 STEP 3: SLIDE UPPER BACK PANEL ( D ) INTO THE GROOVES OF SHORT ENGROVE TUBES ( 4 ) AS SHOWN. FINISHED SURFACE UNFINISHED SURFACE...
- Page 7 STEP 4: ATTACH SHELF PANEL ( B ) TO ASSEMBLED FROM STEP 3 USING LONG TUBES ( 1 ) AND LONG ENGROVE TUBES ( 3 ) A SHOWN. UNFINISHED SURFACE 1 LONG TUBE - 2 PCS 3 LONG ENGROVE TUBE - 2 PCS...
- Page 8 STEP 5: SLIDE BOTTOM BACK PANEL ( E ) INTO THE GROOVES OF LONG ENGROVE TUBES ( 3 ) AS SHOWN. FINISHED SURFACE UNFINISHED SURFACE...
- Page 9 STEP 6: ATTACH BACK PANEL ( C ) TO ASSEMBLED SECTION FROM STEP 5 USING LEGS ( 6 ) AND NO-TIP FEET (7) AS SHOWN. UNFINISH SURFACE 6 LEG - 2 PCS 7 NO-TIP FEET - 2 PCS...
- Page 10 135 lbs 75 lbs 75 lbs This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury. Furniture can tip over or break if improperly moved.
