FourStarGroup 11213618 Quick Start Manual

6 drawer organizer

MODEL: 11213618

6 DRAWER ORGANIZER

Table of Contents

Need help?

Do you have a question about the 11213618 and is the answer not in the manual?

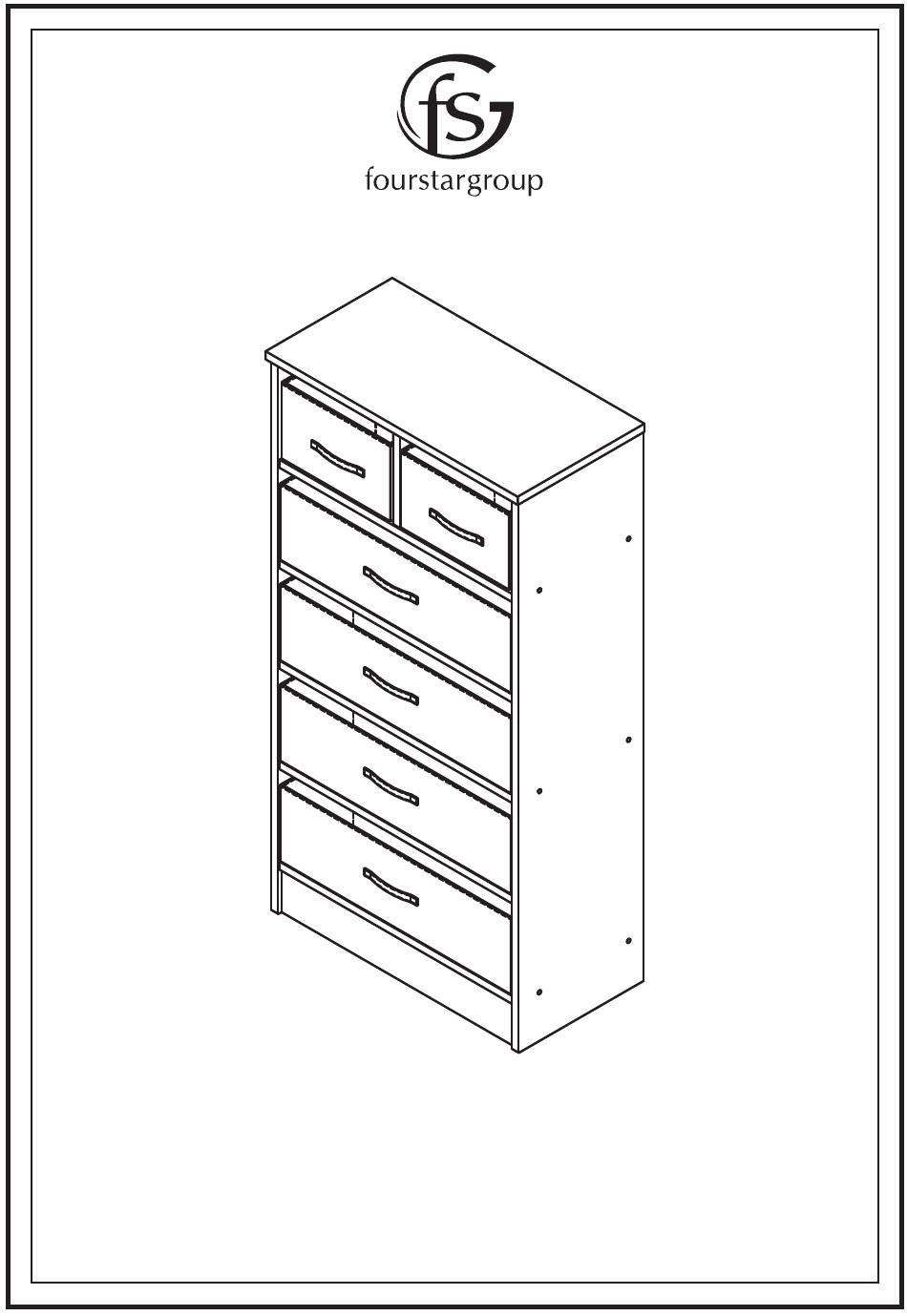

Page 1 MODEL: 11213618 6 DRAWER ORGANIZER...
Page 2 PARTS LIST AND HARDWARE...
Page 3 BEFORE YOU BEGIN , PLEASE FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION: 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
Page 4 ASSEMBLY INSTRUCTIONS STEP 1 1.1 INSTALL DOWEL (1) TO CENTER PANEL (D), FIX PANEL (G) AND SIDE PANEL (A & B) WITH GLUE (3). 1.2 INSTALL DOWEL (4) TO BOTTOM BAR (F) WITH GLUE (3). DOWEL - M6x30mm 14PCS GLUE...
Page 5 STEP 2 -ATTACH FIX PANEL (G) & (H) AND BOTTOM BAR (F) TO SIDE PANEL (A) & (B) USING SCREW (2) AND DOWEL (1 & 4) WITH GLUE (3). DOWEL - M6x30mm 2PCS SCREW 6PCS GLUE DOWEL - M5x20mm 4PCS...
Page 6 STEP 3 -ATTACH CENTER PANEL (D) ON FIX PANEL (E) TO SIDE PANEL (A & B) AND TOP PANEL (C) USING SCREW (2) AND DOWEL (1) WITH GLUE (3). DOWEL - M6x30mm 2PCS SCREW 6PCS GLUE...
Page 7 STEP 4 -UNFOLD THE DRAWER (I) & (J) AND PUT IN THE CARDBOARD, AS SHOWEN. -SLIDE THE DRAWER (I) & (J) TO THE ASSEMBLED CABINET AS SHOWN.
Page 8 12 lbs 26 lbs This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury. Furniture can tip over or break if improperly moved. Have a friend help to lift and carry the unit to it's new location.
