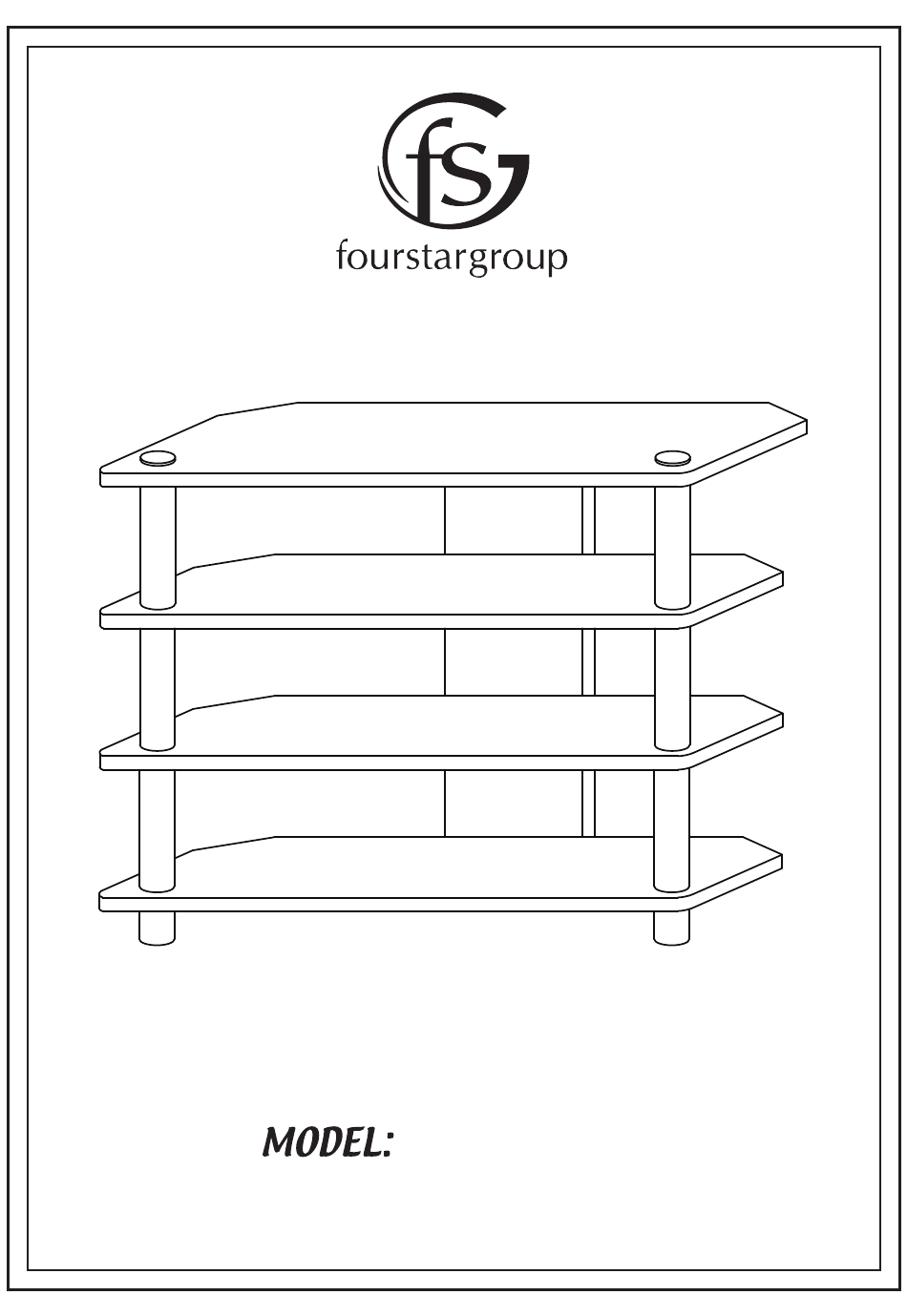

- Page 1 11210652 FOUR TIER AUDIO RACK...
-
Page 2: Hardware List
PARTS HARDWARE LIST TUBE 6 pcs SCREW 6 pcs DOWEL 2 pcs NAIL WITH PIN 2 pcs 2 pcs 2 pcs PARTS LIST TOP PANEL 1 pc SHELF PANEL 3 pcs BACK PANEL 1 pc... -
Page 3: Phillips Screwdriver
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION : 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH. - Page 4 ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. STEP 1 ATTACH 2PCS NAIL WITH PINS ( 4 ) TO BACK PANEL ( C ) AS SHOWN. 4 NAIL WITH PIN - 2 PCS...
- Page 5 STEP 2 ATTACH TUBES ( 1 ) AND LEGS ( 6 ) TO A SHELF PANEL ( B ) AND THEN USING SCREWS ( 2 ) TO BACK PANEL ( C ) AS SHOWN. BACK VIEW 1 TUBE - 2 PCS 2 SCREW - 2 PCS 6 LEG - 2 PCS...
- Page 6 STEP 3 ATTACH SHELF PANEL ( B ) TO ASSEMBLED FROM STEP 2 USING TUBES ( 1 ) AND SCREWS ( 2 ) AS SHOWN. BACK VIEW 1 TUBE - 2 PCS 2 SCREW - 2 PCS...
- Page 7 STEP 4 ATTACH SHELF PANEL ( B ) TO PREVIOUSLY ASSEMBLED SECTION FROM STEP 3 USING TUBES ( 1 ) AND SCREWS ( 2 ) AS SHOWN. BACK VIEW 1 TUBE - 2 PCS 2 SCREW - 2 PCS...
- Page 8 STEP 5 ATTACH TOP PANEL ( A ) TO PREVIOUSLY ASSEMBLED SECTION FROM STEP 4 USING DOWELS ( 3 ) AND CAPS ( 5 ) AS SHOWN. 3 DOWEL - 2 PCS 5 CAP - 2 PCS...
- Page 9 89 lbs 89 lbs 89 lbs 89 lbs This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury. Furniture can tip over or break if improperly moved.
