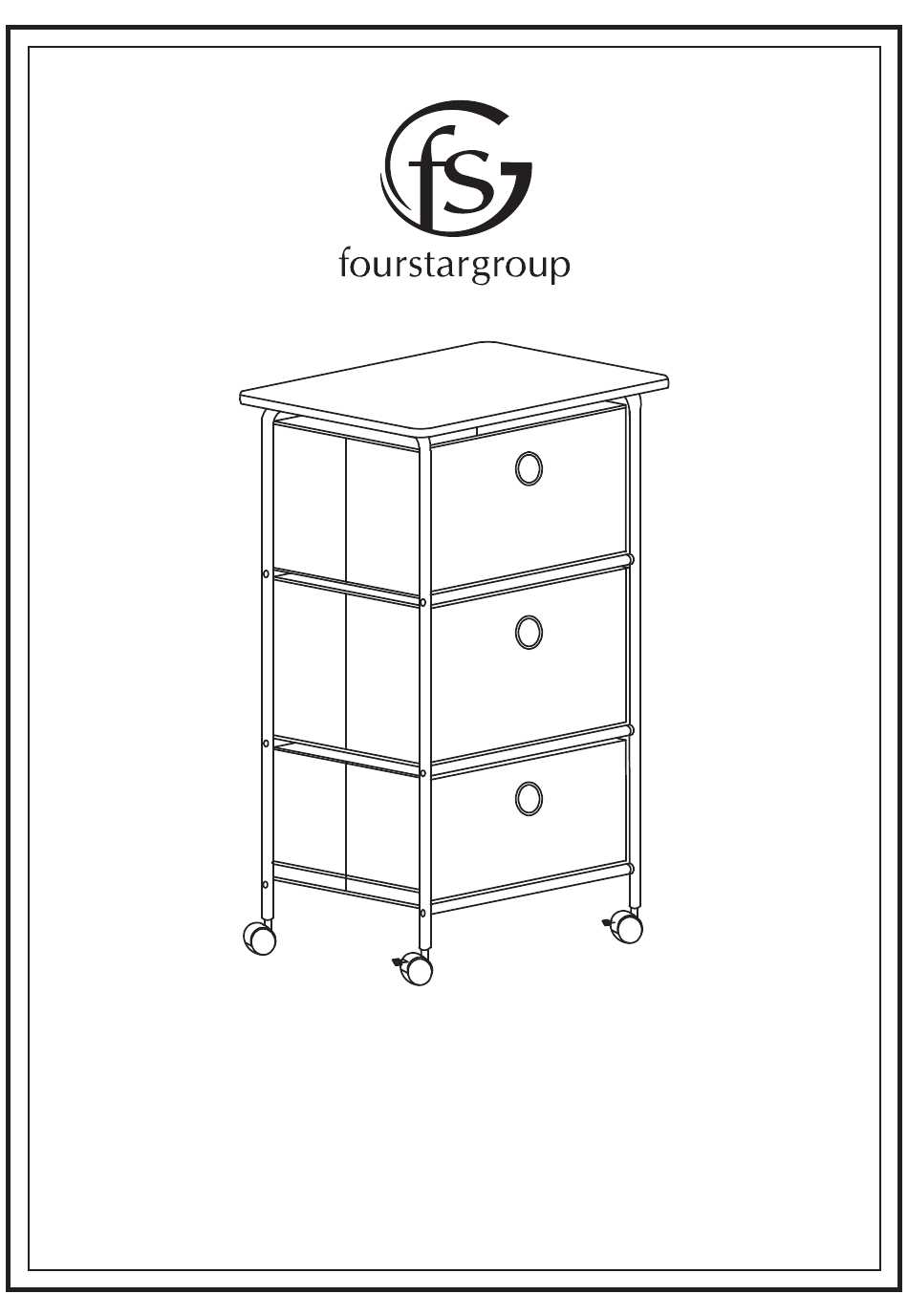

- Page 1 MODEL: 11226507R STORAGE SHELF 3 DRAWER...
-
Page 2: Parts List
PARTS AND HAREWARE LIST PARTS LIST QTY. LEG FRAME 2 PCS WIRE SHELF 3 PCS NON-WOVEN BIN 3 PCS BOTTOM PLATE 3 PCS TOP PANEL 1 PC BOLT 12 PCS BOH:30MM SCREW 4 PCS PLASTIC WASHER 12 PCS ALLEN WRENCH 1 PC WRENCH 1 PC... - Page 3 ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY, FOLLOW THEM STEP BY STEP. CAUTION: 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO THE PRODUCT FINISH.
- Page 4 STEP 2 REPEAT STEP 1, ATTACH WIRE SHELF (B) TO THE LEG FRAME (A) USING BOLT (F) AND PLASTIC WASHER (H) WITH ACCESSARY ALLEN WRENCH (J) AS SHOWN. IMPORTANT: DO NOT TIGHTEN THE BOLTS AT THIS TIME STEP 3 REPEAT STEP 1, ATTACH WIRE SHELF (B) TO THE LEG FRAME (A) USING BOLT (F) AND PLASTIC WASHER (H) WITH ACCESSARY ALLEN WRENCH (J) AS SHOWN.
- Page 5 STEP 4 ATTACH TOP PANEL (E) TO THE STEP (3) METAL FRAME USING SCREW (G) WITH PHILIPS SCREWDRIVER AS SHOWN, THEN TIGHTEN ALL THE BOLTS AND SCREWS. STEP 5 ATTACH THE LOCKING CASTER (K) AND CASTER (L) TO THE STEP (4) FRAME WITH ACCESSARY WRENCH (J) AS SHOWN.
- Page 6 STEP 6 UNFOLD THE NON-WOVEN BIN (C) AND PLACE THE BOTTOM PLATE (D) INTO THE BIN (C) AS SHOWN. STEP 7 PLACE THE NON-WOVEN BIN (C) TO THE SHELF AS SHOWN.
- Page 7 10 LBS (4.5KG) CAUTION: MAXIMUM LOADING CAPACITY FOR EACH SHELF IS 10 LBS (4.5 KG) CAUTION: MAXIMUM LOADING CAPACITY IS 10 LBS. DO NOT SIT, STAND, LEAN, WALK OR JUMP! FAILURE TO COMPLY WITH THIS CAUTION COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE! Do you have any questions? Missing small parts or hardware? Please include the following information when contacting us:...
