FourStarGroup 11212855C Manual

3 piece entertainment center

MODEL: 11212855C

3 PIECE ENTERTAINMENT CENTER

Table of Contents

Need help?

Do you have a question about the 11212855C and is the answer not in the manual?

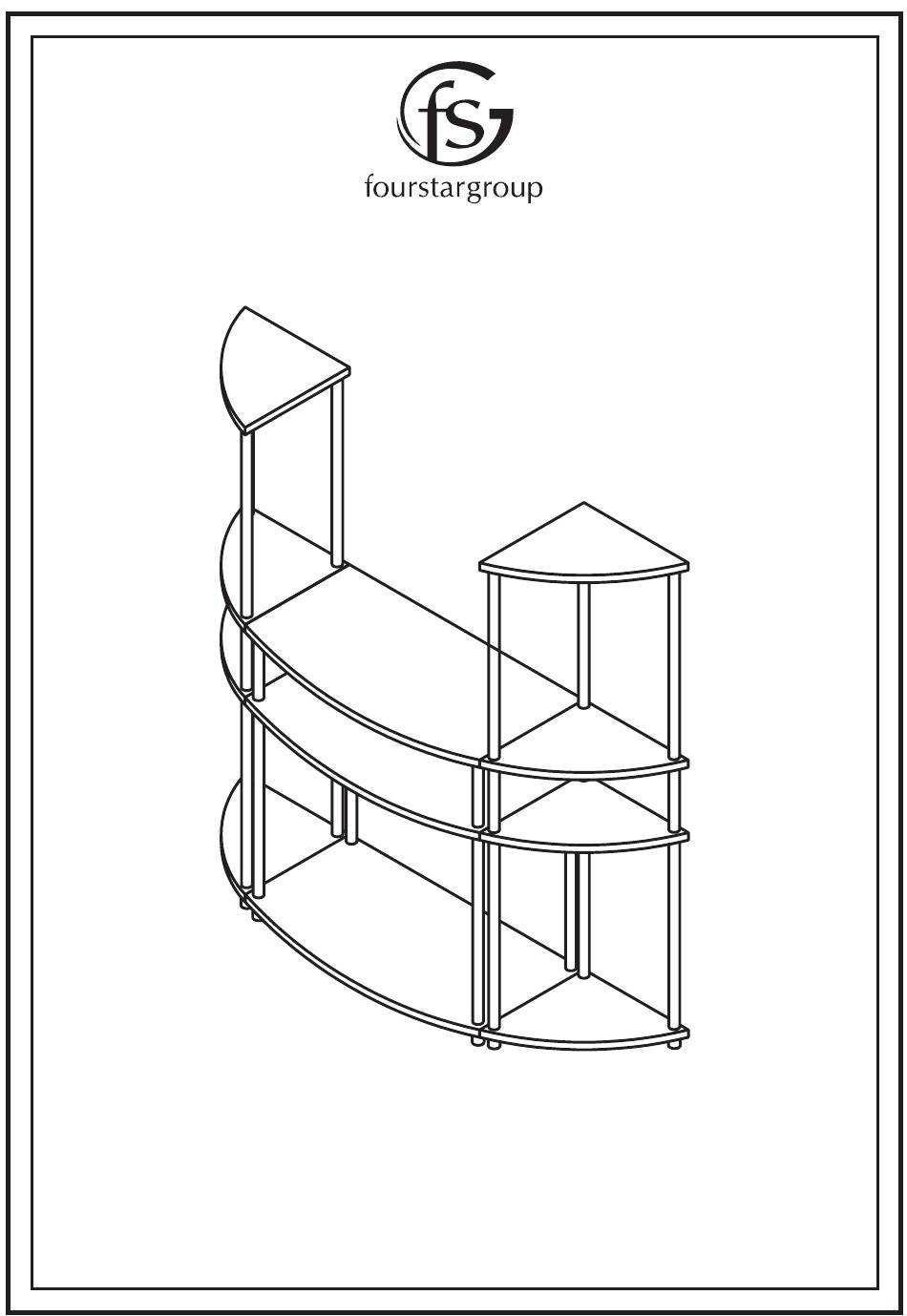

Page 1 MODEL: 11212855C 3 PIECE ENTERTAINMENT CENTER...
Page 2 HARDWARE AND PARTS LIST HARDWARE LIST PARTS LIST CENTER SHELF TOP (1) CENTER SHELVES MIDDLE & BOTTOM (2) CORNER TOP SHELVES (2) CORNER MIDDLE & BOTTOM SHELVES (4)
Page 3 ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN, PLEASE FOLLOW ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW STEP BY STEP: STEP 1 ATTACH 10 INSERT CAPS (3) TO CENTER SHELF TOP (A) & CORNER TOP SHELVES (C) AS SHOWN. USING EITHER A SOFT RUBBER MALLET OR BY FIRMLY PRESSING THE INSERT CAPS INTO THE TOP PANEL USING THE FLAT SIDE OF A BOOK OR OTHER HARD FLAT SUREFACE TO PRESS THE CAPS INTO THE PANEL.
Page 4 STEP 2 2.1 ATTACH 4 SHORT POLES (2) TO TOP PANEL (A) AND MIDDLE PANEL (B). 2.2 ATTACH 4 LONG POLES (1) TO MIDDLE AND BOTTOM PANELS (B). 2.3 INSTALL 4 LEGS (4) TO BOTTOM PANEL (B).
Page 5 STEP 3 3.1 ATTACH 3 LONG POLES (1) TO EACH CORNER TOP SHELF PANELS (C) AND MIDDLE PANELS (D). 3.2 ATTACH 3 SHORT POLES (2) TO MIDDLE PANELS (D) ON BOTH CORNER UNITS. 3.3 ATTACH 3 LONG POLES (1) TO BOTTOM PANELS (D). 3.4 INSTALL 3 LEGS (4) TO EACH BOTTOM PANEL (D).
Page 6 STEP 4 ATTACH 4 JOINT SUPPORTS (5) TO BOTTOM PANELS (B & D). Please include the following information in your email: Do you have any questions? Missing small parts or hardware? • Where item was purchased If you need assistance with the assembly of your •...
