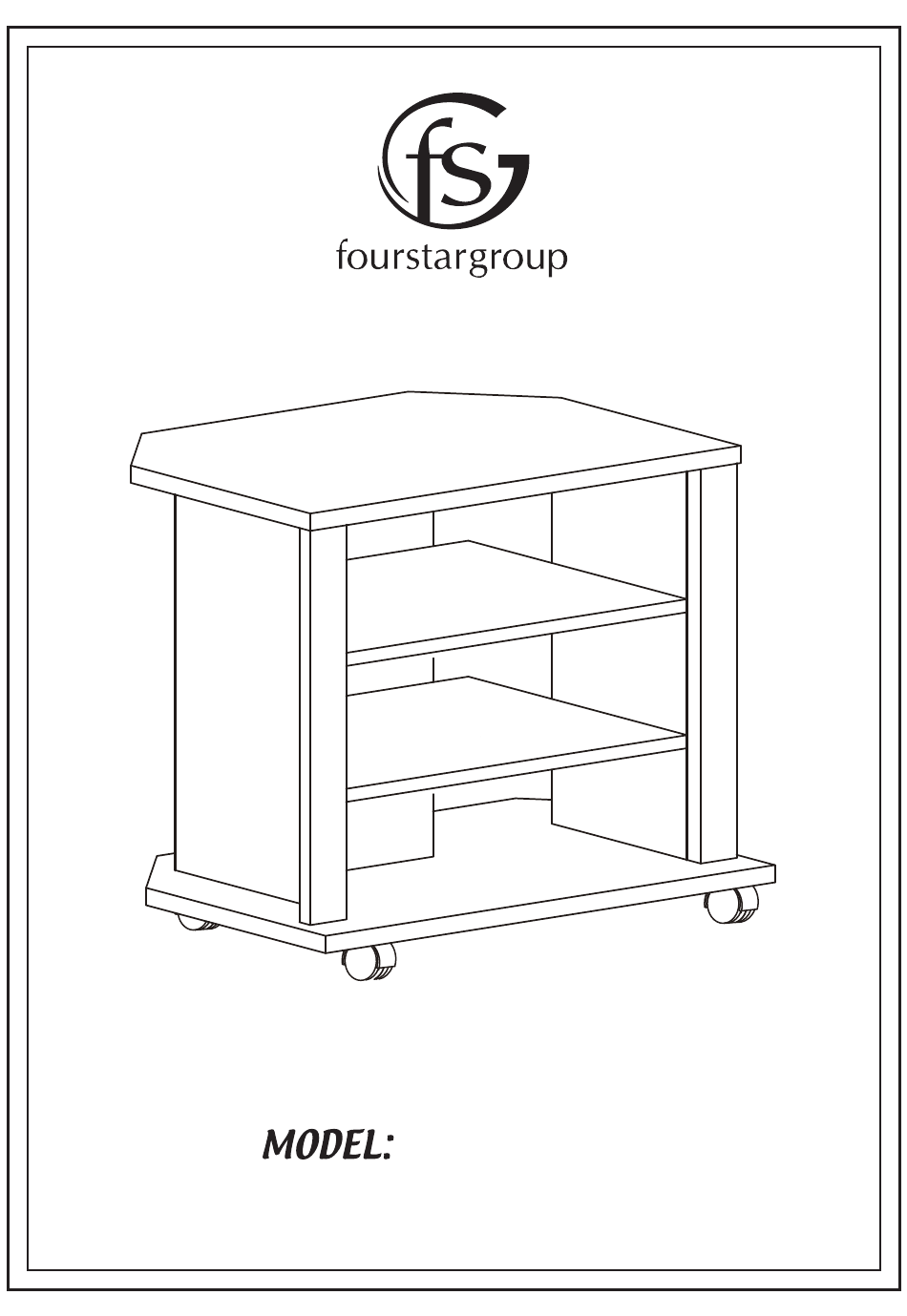

- Page 1 11211715V CORNER TV STAND...
- Page 2 HARDWARE AND PARTS LIST HARDWARE LIST 18 pcs WOOD DOWEL 6 pcs SCREW 10 pcs SHELF SUPPORT 4 pcs CASTER 16 pcs CSK SCREW 1 pc WHITE GLUE PARTS LIST 1 pc TOP PANEL 2 pcs SIDE PANEL 2 pcs FRONT PANEL 2 pcs SHELF PANEL...
- Page 3 BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION : 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
- Page 4 ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. STEP 1 ATTACH CASTERS ( 4 ) TO BOTTOM PANEL ( E ) USING CSK SCREWS ( 5 ) AS SHOWN. 4 CASTER - 4 PCS 5 CSK SCREW - 16 PCS...
- Page 5 STEP 2 ATTACH SIDE PANELS ( B ), FRONT PANELS ( C ) AND BACK PANEL ( F ) TO ASSEMBLED STEP 1 USING WOOD DOWELS ( 1 ), WHITE GLUUE ( 6 ) AND SCREWS ( 2 ) AS SHOWN. 1 WOOD DOWEL - 8 PCS 2 SCREW - 6 PCS 6 WHITE GLUE - 1 PC...
- Page 6 STEP 3 ATTACH TOP PANEL ( A ) TO ASSEMBLED STEP 2 USING WOOD DOWEL ( 1 ). INSERT SHELF SUPPORT INTO SIDE PANELS ( B ) AND BACK PANEL ( F ) HOLES. THEN ALLOW GLUE TO DRY COMPLETELY. 1 WOOD DOWEL - 10 PCS 3 SHELF SUPPORT - 10 PCS 6 WHITE GLUE - 1 PC...
- Page 7 STEP 4 PLACE SHELF PANEL ( D ) TO ASSEMBLED FROM STEP 3 AS SHOWN.
- Page 8 160 lbs. 40 lbs. 40 lbs. This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury. Furniture can tip over or break if improperly moved.
