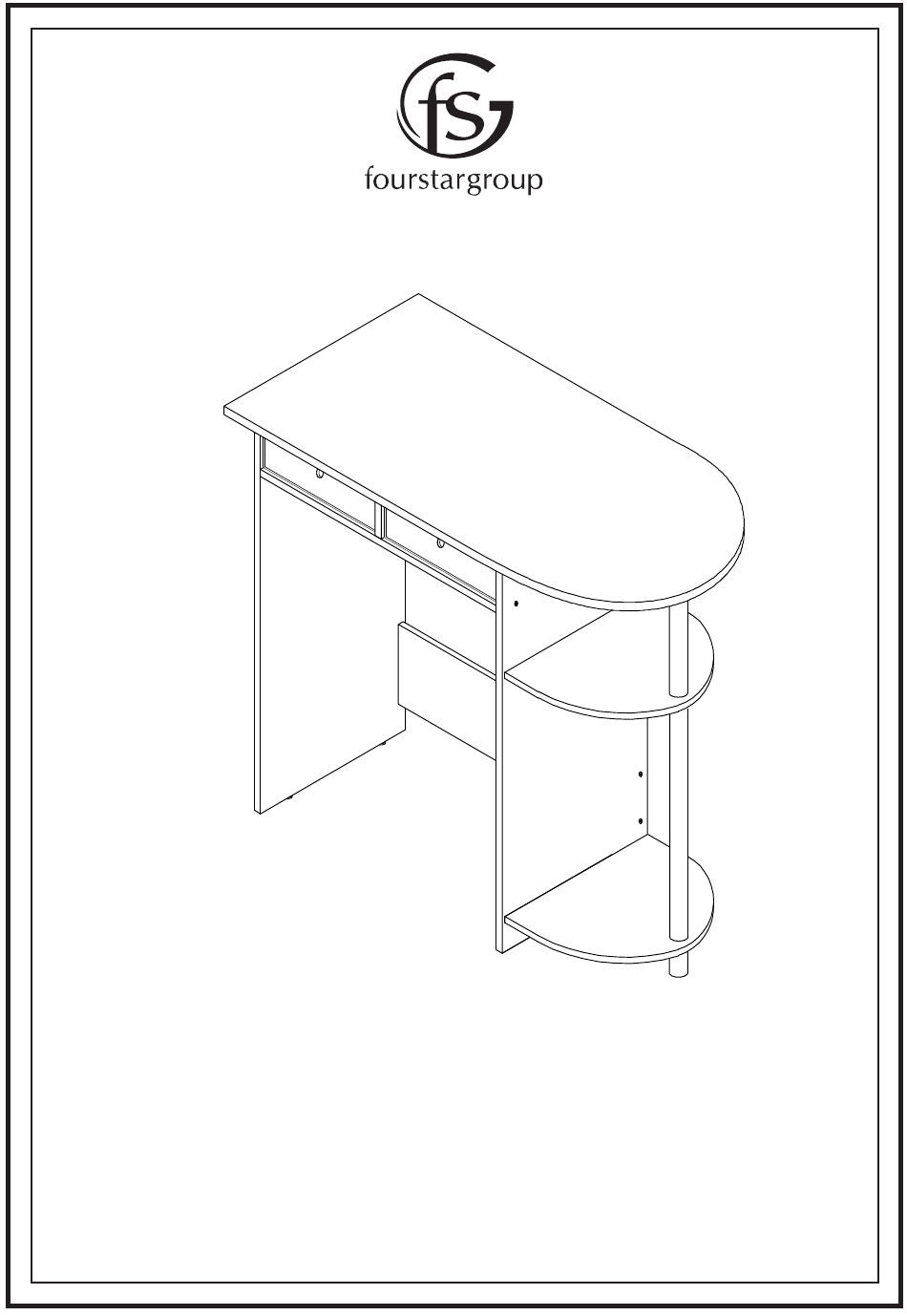

- Page 1 MODEL: 11222895 / MODELO: 11222895 COMPUTER DESK ESCRITORIO DE COMPUTADORA...
-
Page 2: Hardware List
PARTS LIST AND HARDWARE LISTA DE PARTES Y ACCESORIOS HARDWARE LIST LISTA DE PARTES Y ACCESORIOS CHIPBOARD SCREW 12 PCS 12 PZS WOODEN DOWEL 8 PCS 8 PZS NAIL LEG 4 PCS 4 PZS LONG POLE 1 PC 1 PZ SHORT POLE 1 PC 1 PZ... - Page 3 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE CAUTION: 1. READ THIS INSTRUCTION MANUAL BEFORE YOU ASSEMBLE STAND. 2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO FINISH OF PRODUCT. 3. RECOMMEND TWO PEOPLE TO ASSEMBLE THE PRODUCT. PRECAUCIÓN: 1. LEA ESTE MANUAL DE INSTRUCCIONES ANTES DE ARMAR ESTE PRODUCTO.
- Page 4 STEP 1 1.1 INSERT DOWEL (2) TO SIDE PANEL ( B ) ( C ) AND CENTER PANEL( F ) WITH SCREW (1). 1.2 INSTAL NAIL LEG ( 3 ) TO THE BOTTOM SIDE OF SIDE PANEL( B ) ( C ) WITH HAMMER.
- Page 5 STEP 3 ATTACH SHELF PANEL (D) BOTTOM PANEL ( E ) TO SIDE PANEL (B) (C) WITH SCREW (1). PASO 3 ADJUNTE EL ESTANTE (D) Y EL PANEL INFERIOR (E) A LOS PANELES LATERALES (B) (C) CON TORNILLOS (1). CHIPBOARD SCREW - 8 PCS TORNILLO DE MADERA - 8 PZS STEP 4 ATTACH SHORT POLE (5) TO INSERT CAP AND TIGHTEN IT.
- Page 6 STEP 5 5.1 ATTACH HALF CURVE SHELF (G) TO SIDE PANEL ( C ) WITH SCREW (1). 5.2 ATTACH LONG POLE (4) AND TIGHTEN IT. PASO 5 5.1 ADJUNTE EL ESTANTE MEDIO CURVO (G) AL PANEL LATERAL ( C ) CON TORNILLOS (1).
- Page 7 STEP 7 UNFOLD THE BIN (8) AND SLIDE IT TO THE DESK. PASO 7 DESDOBLE EL CAJON DE TELA (8) Y DESLICELO EN EL ESTANTE. This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury.
