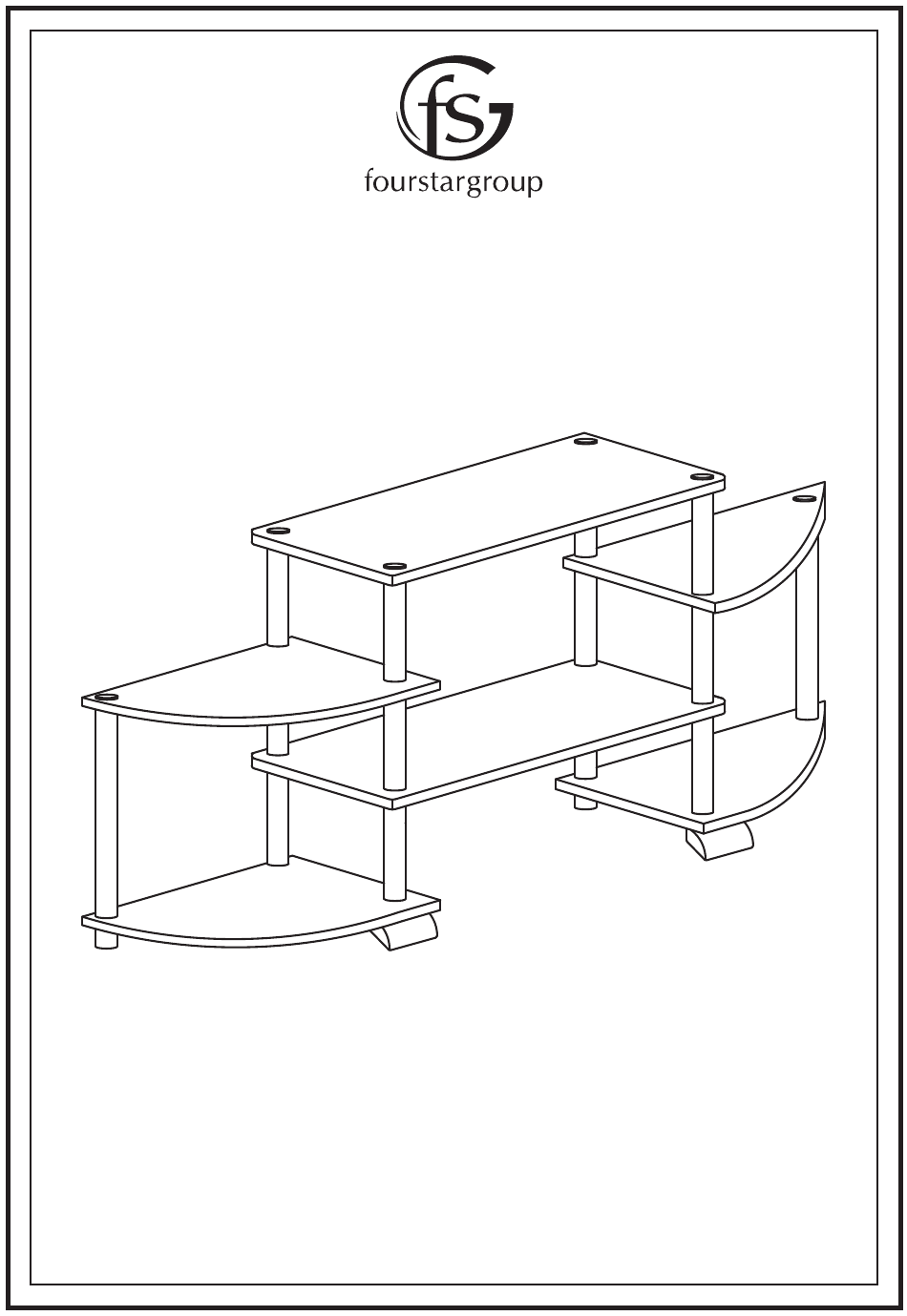

- Page 1 89 lbs 75 lbs 75 lbs 89 lbs 75 lbs 75 lbs MODEL: 11211851V ENTERTAINMENT CENTER...
- Page 2 PARTS AND HARDWARE LONG POST (2 PCS) SHORT POST (12 PCS) CAP (6 PCS) NO-TIP FRONT FEET (2 PCS) LEG (4 PCS) CENTER SHELF PANEL (2 PCS) LEFT SIDE PANEL (2 PCS) RIGHT SIDE PANEL (2 PCS) BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY.
- Page 3 ASSEMBLY INSTRUCTIONS STEP 1 ATTACH 2 LONG POSTS ( 1 ), 4 SHORT POSTS ( 2 ), 4 LEGS ( 5 ) AND 2 NO-TIP FRONT FEET ( 4 ) TO 2 SIDE PANELS ( B ) AS SHOWN. 1 LONG POST - 2 PCS 2 SHORT POST - 4 PCS 4 NO-TIP FRONT FEET - 2 PCS 5 LEG - 4 PCS...
- Page 4 STEP 2 ATTACH CENTER PANEL ( A ) AND 4 SHORT POSTS ( 2 ) TO ASSEMBLED STEP 1 AS SHOWN. 2 SHORT POST - 4 PCS...
- Page 5 STEP 3 ATTACH 2 SIDE PANELS ( B ) AND 4 SHORT POSTS ( 2 ) TO ASSEMBLED STEP 2 AS SHOWN. 2 SHORT POST - 4 PCS...
- Page 6 STEP 4 ATTACH CENTER PANEL ( A ) AND 6 CAPS ( 3 ) TO ASSEMBLED STEP 3 AS SHOWN. 3 CAP - 6 PCS F CENTER SHELF PANEL - 1 PC This unit is intended for use only with the products and maximum weights indicated.
