MODEL: 11211717S

COFFEE TABLE

Need help?

Do you have a question about the 11211717S and is the answer not in the manual?

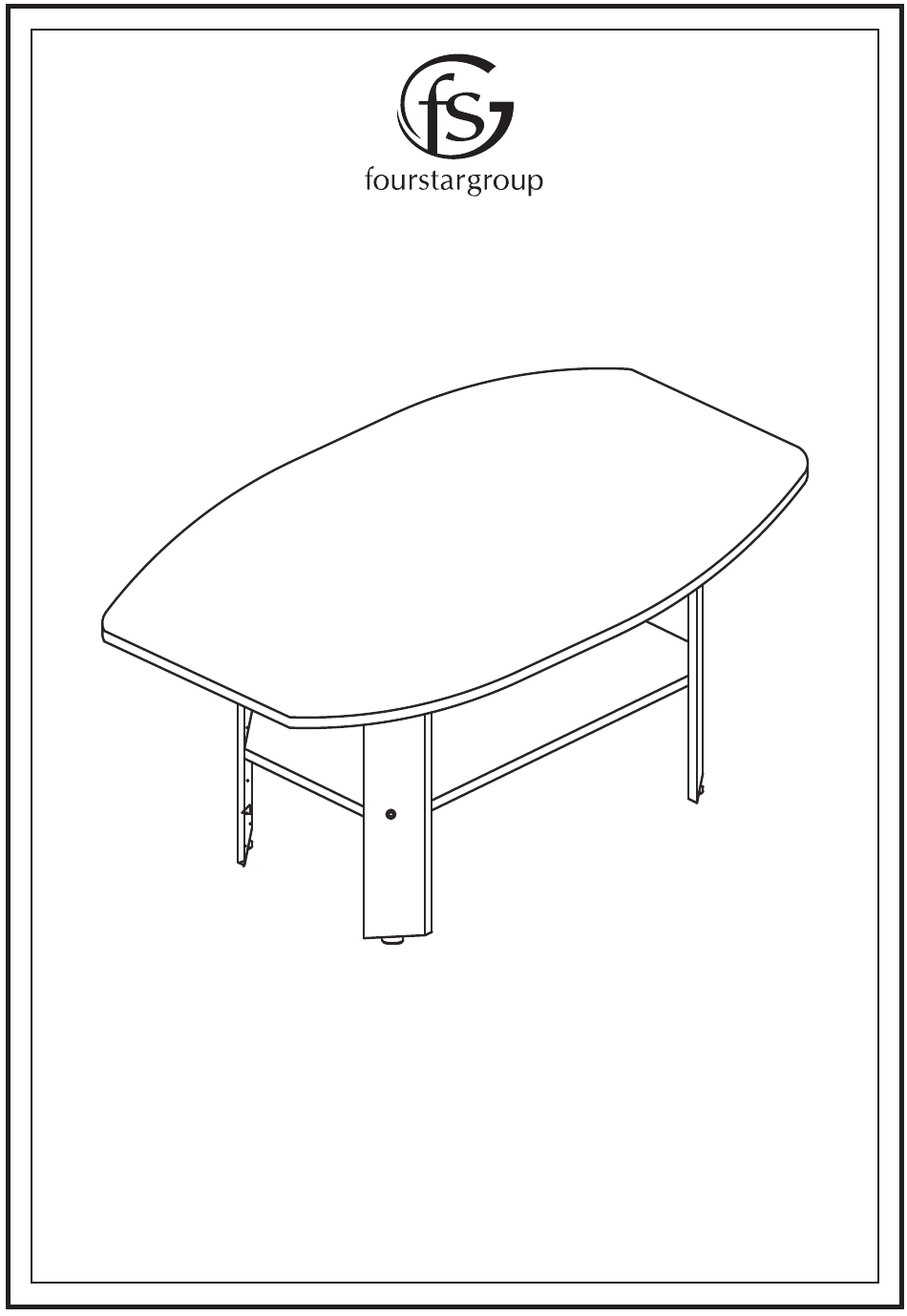

Page 1 MODEL: 11211717S COFFEE TABLE...
Page 2 PARTS LIST AND HARDWARE PARTS LIST...
Page 3 BEFORE YOU BEGIN , PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION: 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
Page 4 ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN , PLEASE FOLLOW ASSEMBLY INSTRUCTION CAREFULLY , FOLLOW STEP BY STEP. STEP 1 ATTACH WOOD DOWELS (1) TO THE HOLES IN THE LEGS (C) USING WHITE GLUE (4) THEN ATTACH L-BRACKET (5) USING TAPPING SCREWS (F) AS SHOWN.
Page 5 STEP 2 ATTACH TOP PANEL (A) TO THE ASSEMBLED PART FROM STEP 1 USING WOOD DOWELS (1) ADN WHITE GLUE (4) THEN ATTACH FURNITURE GLIDE (3) TO THE BASE OF THE LEGS (C) AS SHOWN.
Page 6 STEP 3 ATTACH TAPPING SCREWS (6) TO THE L-BRACKET (5) AS SHOWN.
Page 7 STEP 4 ATTACH SHELF PANEL (B) TO LEGS (C) USING C/B SCREW (2) AS SHOWN. THEN ALLOW GLUE TO DRY COMPLETELY.
Page 8 184 lbs 87 lbs This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury. Furniture can tip over or break if improperly moved. Have a friend help to lift and carry the unit to it's new location.
