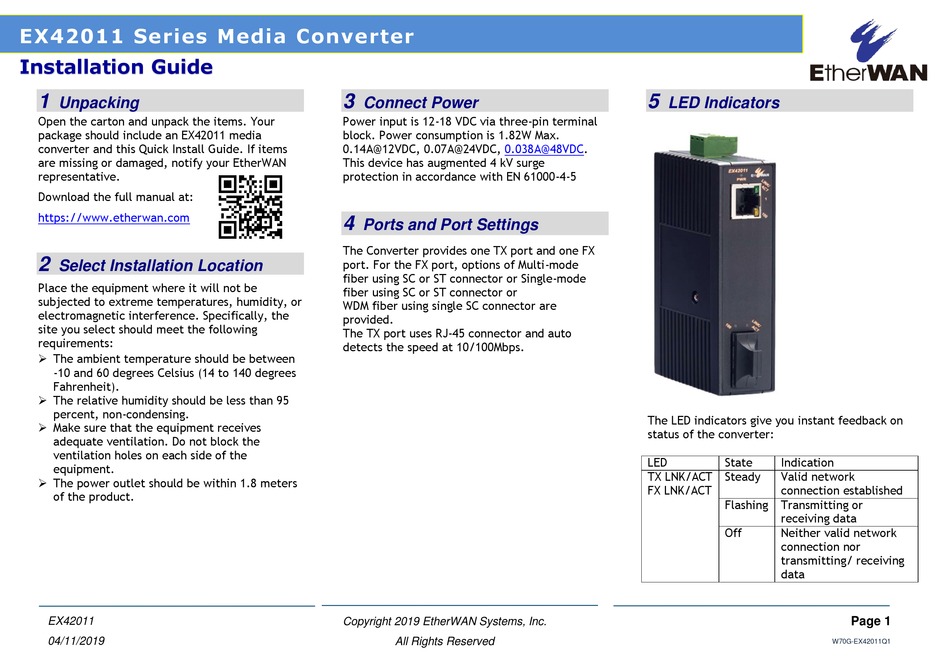

EtherWAN EX42011 Series Installation Manual

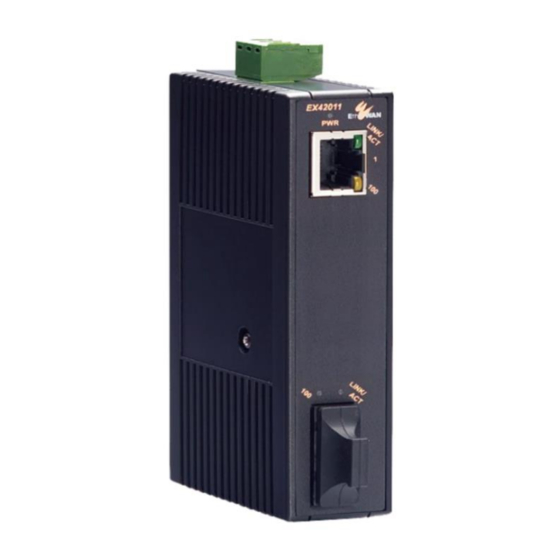

EX42011 Series Media Converter
Installation Guide
1
Unpacking
Open the carton and unpack the items. Your
package should include an EX42011 media
converter and this Quick Install Guide. If items
are missing or damaged, notify your EtherWAN
representative.
Download the full manual at:
https://www.etherwan.com
2
Select Installation Location
Place the equipment where it will not be
subjected to extreme temperatures, humidity, or
electromagnetic interference. Specifically, the
site you select should meet the following
requirements:
 The ambient temperature should be between
-10 and 60 degrees Celsius (14 to 140 degrees
Fahrenheit).
 The relative humidity should be less than 95
percent, non-condensing.
 Make sure that the equipment receives
adequate ventilation. Do not block the
ventilation holes on each side of the
equipment.
 The power outlet should be within 1.8 meters
of the product.
EX42011
04/11/2019
3
Connect Power
Power input is 12-18 VDC via three-pin terminal
block. Power consumption is 1.82W Max.
0.14A@12VDC, 0.07A@24VDC, 0.038A@48VDC.
This device has augmented 4 kV surge
protection in accordance with EN 61000-4-5
4
Ports and Port Settings
The Converter provides one TX port and one FX
port. For the FX port, options of Multi-mode
fiber using SC or ST connector or Single-mode
fiber using SC or ST connector or
WDM fiber using single SC connector are
provided.
The TX port uses RJ-45 connector and auto
detects the speed at 10/100Mbps.
Copyright 2019 EtherWAN Systems, Inc.
All Rights Reserved
5
LED Indicators
The LED indicators give you instant feedback on
status of the converter:
LED State Indication
TX LNK/ACT Steady Valid network
FX LNK/ACT connection established
Flashing Transmitting or
receiving data
Off Neither valid network
connection nor
transmitting/ receiving
data
Page 1
W70G-EX42011Q1
