EL2321

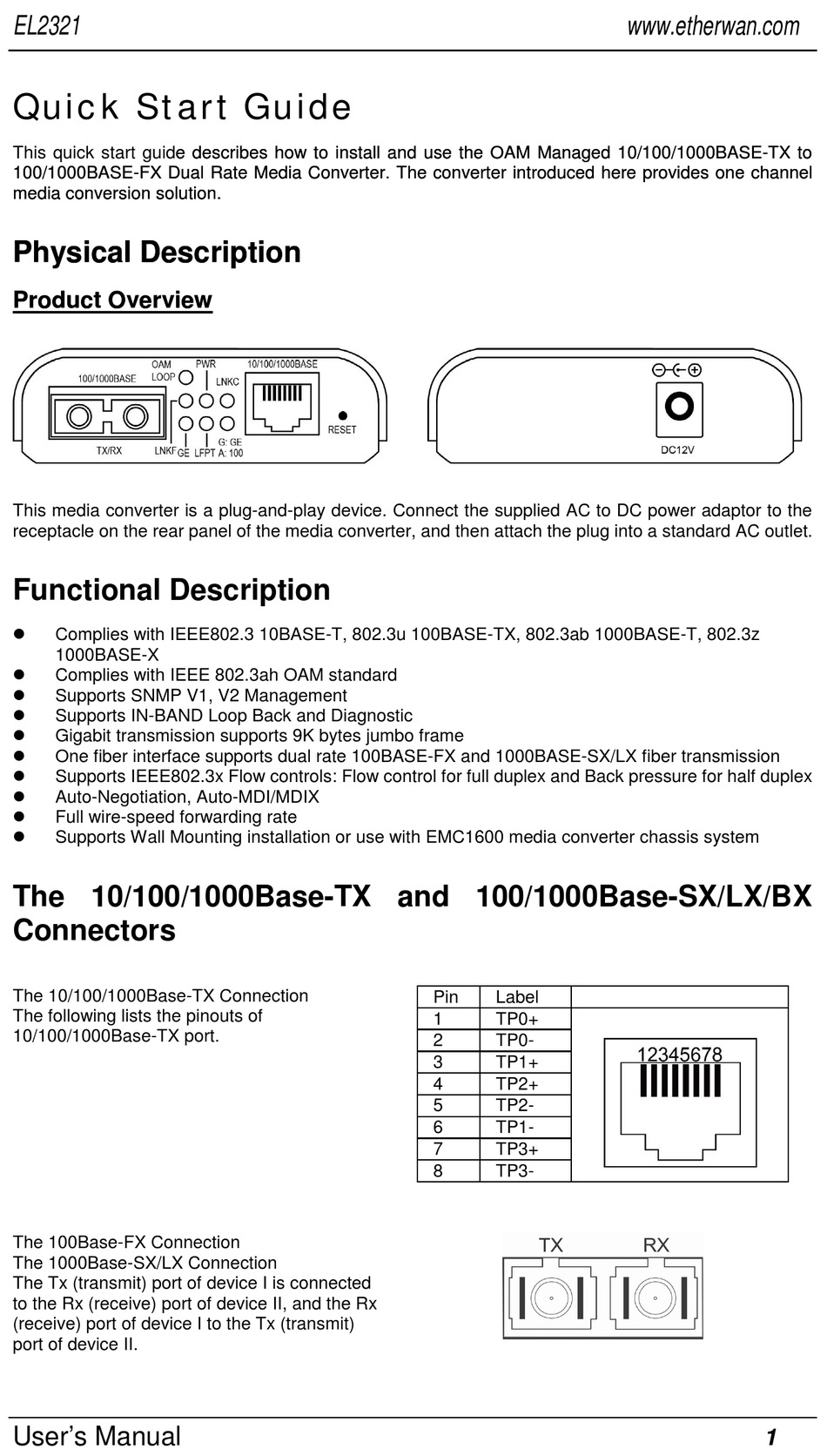

Quick Start Guide

This quick start guide describes how to install and use the OAM Managed 10/100/1000BASE-TX to
100/1000BASE-FX Dual Rate Media Converter. The converter introduced here provides one channel
100/1000BASE-FX Dual Rate Media Converter. The converter introduced here provides one channel
media conversion solution.
media conversion solution.

Physical Description

Physical Description
Product Overview
Product Overview
This media converter is a plug-and-play device. Connect the supplied AC to DC power adaptor to the
receptacle on the rear panel of the media converter, and then attach the plug into a standard AC outlet.

Functional Description

Complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z
1000BASE-X
Complies with IEEE 802.3ah OAM standard
Supports SNMP V1, V2 Management
Supports IN-BAND Loop Back and Diagnostic
Gigabit transmission supports 9K bytes jumbo frame
One fiber interface supports dual rate 100BASE-FX and 1000BASE-SX/LX fiber transmission
Supports IEEE802.3x Flow controls: Flow control for full duplex and Back pressure for half duplex
Auto-Negotiation, Auto-MDI/MDIX
Full wire-speed forwarding rate
Supports Wall Mounting installation or use with EMC1600 media converter chassis system
The 10/100/1000Base-TX and 100/1000Base-SX/LX/BX
Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of
10/100/1000Base-TX port.
The 100Base-FX Connection
The 1000Base-SX/LX Connection
The Tx (transmit) port of device I is connected
to the Rx (receive) port of device II, and the Rx
(receive) port of device I to the Tx (transmit)
port of device II.
User's Manual
e describes how to install and use the OAM Managed 10/100/1000BASE-TX to
Pin
Label
1
TP0+
2
TP0-
3
TP1+
4
TP2+
5
TP2-
6
TP1-
7
TP3+
8
TP3-
www.etherwan.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL2321 and is the answer not in the manual?

Questions and answers

Related Manuals for EtherWAN EL2321

Summary of Contents for EtherWAN EL2321

  • Page 1: Quick Start Guide

    EL2321 www.etherwan.com Quick Start Guide This quick start guide describes how to install and use the OAM Managed 10/100/1000BASE-TX to e describes how to install and use the OAM Managed 10/100/1000BASE-TX to 100/1000BASE-FX Dual Rate Media Converter. The converter introduced here provides one channel 100/1000BASE-FX Dual Rate Media Converter.

  • Page 2: The Port Status Leds

    EL2321 www.etherwan.com The WDM 100Base-BX Connection The WDM 1000Base-BX Connection Only one optical fiber is required to transmit and receive data. The SFP Connection The SFP socket for 100Base and 1000Base fiber optic expansion. For SFP expansion The Port Status LEDs LED’s...
  • Page 3 EL2321 www.etherwan.com  Specify the default IP address (192.168.1.10) of the OAM managed dual rate media converter in the web browser. A login window will be shown as below:  Enter the factory default Username (admin). Enter the factory default Password (no password).

  • Page 4: Fcc Statement

    EL2321 www.etherwan.com FCC Statement The FCC (Federal Communications Commission) restricts the amount of radio frequency emission and radiation coming from computer equipment. The equipment introduced in this manual has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules.

  • Page 5: Table Of Contents

    EL2321 www.etherwan.com Table of Contents Quick Start Guide..........................1 Physical Description........................1 Functional Description ........................1 The 10/100/1000Base-TX and 100/1000Base-SX/LX/BX Connectors..........1 The Port Status LEDs ........................2 Web Configuration ..........................2 FCC Statement ............................4 Trademarks ............................4 Preface..............................4 Table of Contents..........................5 Introduction............................6 Product Overview..........................6 Product Features ..........................7 Packing List.............................7...

  • Page 6: Introduction

    EL2321 www.etherwan.com Introduction The OAM Managed 10/100/1000BASE-TX to 100/1000BASE-FX Dual Rate Media Converter provides one channel for media conversion between 10/100/1000Base-TX to 100Base and 1000Base fiber interface with link-fault-pass-through function. It can be used as a stand-alone device or with a standard 19”...

  • Page 7: Product Features

    EL2321 www.etherwan.com Product Features  Complies with IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X  Complies with IEEE 802.3ah OAM standard  Supports SNMP V1, V2 Management  Supports IN-BAND Loop Back and Diagnostic  Gigabit transmission supports 9K bytes jumbo frame ...

  • Page 8: One-Channel Media Converter

    EL2321 www.etherwan.com One-Channel Media Converter Physical Ports OAM Managed 10/100/1000BASE-TX to 100/1000BASE-FX Dual Rate Media Converter This converter provides one TX port and one 100Base and 1000Base dual rate SFP socket. For the 100Base and 1000Base dual rate SFP socket, it provides options of multi-mode/single-mode or WDM multi-mode/single-mode fiber.

  • Page 9: Reset Button

    EL2321 www.etherwan.com Reset Button The reset button is used to reset the web-interface IP or device settings. Reset the device: Insert a paper clip or a similar object into the reset hole to press the reset button. Reset the web-interface IP to 192.168.1.10: Insert a paper clip or a similar object into the reset hole.

  • Page 10: Installation

    EL2321 www.etherwan.com Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: ...

  • Page 11: System Configuration

    EL2321 www.etherwan.com System Configuration This chapter provides network managers and system administrators with information about how to configure the OAM Managed 10/100/1000BASE-TX to 100/1000BASE-FX Dual Rate Media Converter via the Web Browser. Logging on to the Media Converter The default IP Address for the media converter is 192.168.1.10. Enter the factory default Username (admin).

  • Page 12: Main Menu

    EL2321 www.etherwan.com Main Menu Network Information It will show local device information and local port status. User’s Manual...

  • Page 13: Local Setting

    EL2321 www.etherwan.com Local Setting IP Configuration DHCP Client: Click “DHCP Client” drop-down menu to choose “Disable” or “Enable” from the “DHCP Client” drop-down list to disable or enable DHCP Client setting for the media converter. You need to set the IP Address, Subnet Mask, and Gateway by self if DHCP Client is disabled.

  • Page 14: Password Setting

    EL2321 www.etherwan.com Password Setting Login Name: The factory default login name “admin” can’t be changed. Old Password: Click in “Old Password” text box and type the old password. You must type the old password into this field if you want to set a new password. The password must be “a”-“z”, “A”-“Z”, “0”-“9”, and “_”.

  • Page 15: Converter Configuration

    EL2321 www.etherwan.com Converter Configuration Jumbo Frame (9K): The media converter could pass the max 9KB packet if this function is enabled. Link Transparent: If the Link Transparent (Link-Fault-Pass-Through) is enabled, the Link Loss Carry Forward will be active. Link Loss Carry Forward: If this function is enabled, when the UTP port link down, the fiber port will be forced link down.
  • Page 16 EL2321 www.etherwan.com Unknown DA Unicast Storm Filter: If this function is enabled, when too many unknown DA unicast packets arrive in a period time, the unknown DA unicast packets will be dropped. Apply: Click “Apply” button when you finished Converter Configuration.

  • Page 17: Port Configuration

    EL2321 www.etherwan.com Port Configuration Mode: Click “Mode” drop-down menu to choose “Auto Speed”, “1000 Full”, “100 Full”, “100 Half”, “10 Full”, “10 Half” from the “Mode” drop-down list for TP or FX port. Flow Control: Click “Flow Control” drop-down menu to choose “Disable” or “Enable” from the “Flow Control”...
  • Page 18 EL2321 www.etherwan.com MIB Counter This page shows local device’s MIB counters. Clear: Click the “Clear” button to clear all MIB counters to zero. Refresh: Click the “Refresh” button to show the current MIB counters again. User’s Manual...

  • Page 19: Snmp Configuration

    EL2321 www.etherwan.com SNMP Configuration SNMP Ability: Click “SNMP Ability” drop-down menu to choose “Disable” or “Enable” from the “SNMP Ability” drop-down list to disable or enable SNMP functions. Trap Mode: Click “Trap Mode” drop-down menu to choose “Disable” or “Enable” from the “Trap Mode”...
  • Page 20 EL2321 www.etherwan.com SNMP Community Setting This media converter supports up to 5 SNMP Read/Write Communities. SNMP Read Community: Add Read Community: Click in “Add Read Community” text box and type a read community name. Delete Read Community: Click in “Delete Read Community” text box and type a read community name to be deleted.
  • Page 21 EL2321 www.etherwan.com VLAN VLAN Group: VLAN Mode: Click “VLAN Mode” drop-down menu to choose “Disable” or “Enable” from the “VLAN Mode” drop-down list to disable or enable 802.1Q VLAN Group. User could set 16 VLAN entries if enable 802.1Q VLAN Group functions. Each VLAN entry could set VID and member port.
  • Page 22 EL2321 www.etherwan.com VLAN Per Port Setting: Egress Link Type: Replace Tag: The media converter will remove VLAN tags from packets then add new tags to them. The inserted tag is the ingress port’s “Default tag”, which is indexed by port “Port based VLAN index”.
  • Page 23 EL2321 www.etherwan.com Q-in-Q Q in Q Enable: Click “Q in Q Enable” drop-down menu to choose “Disable” or “Enable” from the “Q in Q Enable” drop-down list to disable or enable Q in Q function. Out Layer VLAN Tag EtherType (HEX): Click in “Out Layer VLAN Tag EtherType” text box and type user defined Q-in-Q out layer VLAN tag Ether type.

  • Page 24: Remote Setting

    EL2321 www.etherwan.com Remote Setting 802.3ah Functions 802.3ah Configuration: 802.3ah Function: Choose “Disable” or “Enable” to disable or enable 802.3ah function. 802.3ah Mode: Choose “Passive” or “Active” to set passive or active 802.3ah mode. Remote Loopback: Choose “Disable” or “Enable” to disable or enable remote loopback.
  • Page 25 EL2321 www.etherwan.com Loopback Test: Send Packet Number (1~255): Click in “Send Packet Number” text box and type packet number to be sent. Packet Length (Not include CRC) (60~1514): Click in “Packet Length” text box and type packet length. Apply: Click “Apply” button when you finished 802.3ah Loop Back Test.
  • Page 26 EL2321 www.etherwan.com 802.3ah Status: User’s Manual...
  • Page 27 EL2321 www.etherwan.com This page shows 802.3ah Status Information of the media converter. User’s Manual...

  • Page 28: Tools

    EL2321 www.etherwan.com Tools System Reboot OK: Click “OK” button to restart the media converter. OK: Click “Cancel” button to cancel the media converter restarting. Save and Restore SaveToFlash: Click “SaveToFlash” button to save all current configurations to media converter as backup.

  • Page 29: Logout

    EL2321 www.etherwan.com Firmware Upgrade Choose: Click the “Choose” button to select the location and file of the new firmware image file on your computer. Upgrade: Click the “Upgrade” button. The new firmware image file will be burned into the flash. Reset the media converter to use the new firmware.

  • Page 30: Specifications

    EL2321 www.etherwan.com Specifications IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX Applicable Standards IEEE802.3ab 1000BASE-T IEEE802.3z 1000BASE-SX/1000BASE-LX IEEE802.3x 1 10/100/1000Base-TX port Fixed Ports 1 dual rate 100Base-FX/BX or 1000Base-SX/LX/BX fiber interface Speed 10Base-T 10/20Mbps for half/full-duplex 100Base-TX/FX 100/200Mbps for half/full-duplex 1000Base-T 2000Mbps for full-duplex...
  • Page 31 EL2321 www.etherwan.com Operating 0℃ ~ 50℃ (32℉ ~ 122℉) Temperature -20℃ ~ 70℃ (-4℉ ~ 158℉) Storage Temperature Humidity 5 ~ 95%, non-condensing Emissions FCC part 15 Class A, CE Mark Class A, VCCI Class A User’s Manual...
