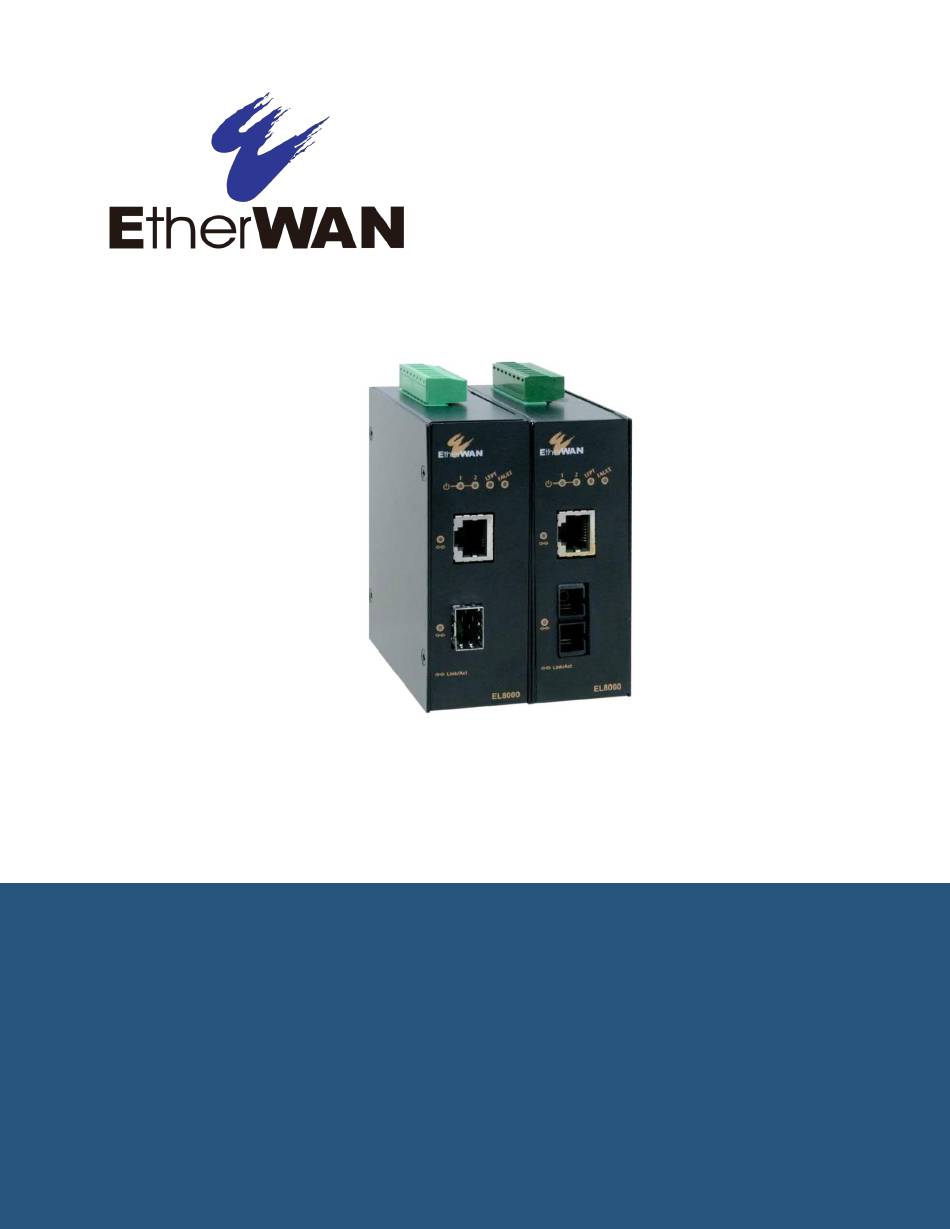

- Page 1 EL8000 Hardened Media Converter User’s Guide...
- Page 2 Disclaimer of Liability The information contained in this document is subject to change without notice. EtherWAN is not liable for any errors or omissions contained herein or for resulting damage in connection with the information provided in this manual.
-
Page 3: Preface
Electric Shock This symbol warns users of electric shock hazard. Failure to take Hazard appropriate precautions such as not opening or touching hazardous areas of the equipment could result in injury or death. EL8000 Hardened Media Converter... -
Page 4: Table Of Contents
Select Installation Location ..................6 Connect Power ......................7 LED Indicators ......................8 DIP Switches ......................9 Link Fault Pass Through (LFPT) ................9 Relay Output Alarm ....................10 Specifications ......................11 Manufacturer’s Information ..................12 EL8000 Hardened Media Converter... -
Page 5: Introduction

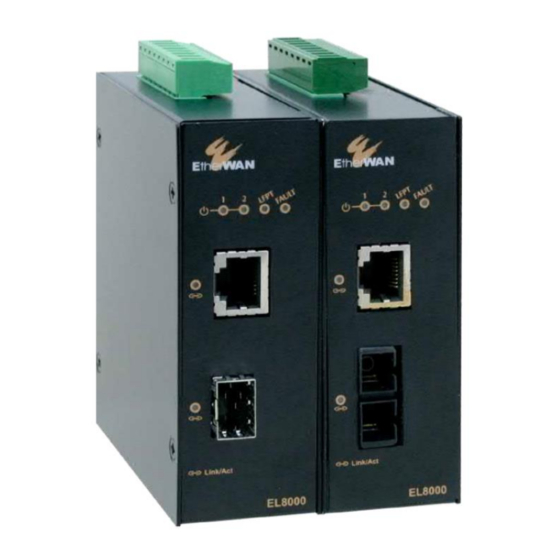

EL8000’s hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40 to 75°C, and aluminum housing. With two power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL8000 is the ideal media converter for environments where connectivity is crucial. -
Page 6: Unpacking
Unpacking Open the carton and unpack the items. Your package should include an EL8000 media converter and this Quick Install Guide. If items are missing or damaged, notify your EtherWAN representative. Select Installation Location Installation is DIN rail-mount, or wall mount (in an enclosure or industrial panel). Ensure that the power source is within 6 feet (1.8 meters), and check that there is adequate airflow. -
Page 7: Connect Power
75 degree Celsius. Altitude up to 2000 meters. Humidity range (Operational): 5% to 95%, non-condensation. The product is open type. Make sure that the equipment receives adequate ventilation. Do not block the ventilation holes of the equipment. EL8000 Hardened Media Converter... -
Page 8: Led Indicators
Power redundancy or port malfunction Fault Power redundancy/ports functioning normally Steady Power1 on Power1 off Steady Power2 on Power2 off Steady Connection established LNK/ACT Flashing Transmitting or receiving data No connection established Steady LFPT function enabled LFPT LFPT function disabled EL8000 Hardened Media Converter... -
Page 9: Dip Switches
This prevents the connected switches from sending packets that would end up lost. LFTP is designed for use with media converters arranged in pairs, and both devices must support LFPT. EL8000 Hardened Media Converter... -
Page 10: Relay Output Alarm
The relay output can be connected to an alarm signaling device. Current is 0.6A @ 30VDC. Point Point Relay contact PW1 PW2 1 - 2 2 - 3 Alarm Closed Open Alarm Closed Open Alarm Closed Open Non-Alarm Open Closed EL8000 Hardened Media Converter... -
Page 11: Specifications
EN 61000-4-4 (Burst Standards) EN 61000-4-5 (Surge Standards) EN 61000-4-6 (Induced RFI Standards) EN 61000-4-8 (Magnetic Field Standards) Environmental Test IEC 60068-2-6 Fc (Vibration Resistance) Compliance IEC 60068-2-27 Ea (Shock) FED STD 101C Method 5007.1 (Free Fall) EL8000 Hardened Media Converter... -
Page 12: Manufacturer's Information
Email: info@etherwan.com Email: info@etherwan.com.tw EtherWAN has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose, and makes no express warranties, except as may be stated in its written agreement with and for its customers.
