Preface
This manual describes how to install and use the 12-Bay Media
Converter System. The system introduced here is capable of
housing up to twelve media converters, each of which offers a
single channel media conversion solution:
10/100Base-TX ↔ 100Base-FX
100Base-TX ↔ 100Base-FX
100Base-FX ↔ 100Base-FX
10/100/1000Base-TX ↔ 1000Base-SX/LX
1000Base-T ↔ 1000Base-SX/LX
1000Base- SX/LX ↔ 1000Base-SX/LX
In this manual, you will find:
• An introduction to the system
• Product features
• Illustrative LED functions
• Installation instructions
• Specifications
User's Manual
12-Bay Media Converter System
1
Advertisement
Table of Contents
Related Manuals for EtherWAN EMC1200R
Summary of Contents for EtherWAN EMC1200R
-
Page 1: Preface
12-Bay Media Converter System Preface This manual describes how to install and use the 12-Bay Media Converter System. The system introduced here is capable of housing up to twelve media converters, each of which offers a single channel media conversion solution: 10/100Base-TX ↔... -
Page 2: Table Of Contents
12-Bay Media Converter System Table of Contents REFACE ABLE OF ONTENTS RODUCT VERVIEW 12-B EDIA ONVERTER YSTEM ACKAGE ONTENTS RODUCT EATURES RONT ANEL ISPLAY Front Panel Understanding LEDs NSTALLATION ELECTING A ITE FOR THE QUIPMENT ONNECTING TO OWER PECIFICATIONS User’s Manual... -
Page 3: Product Overview

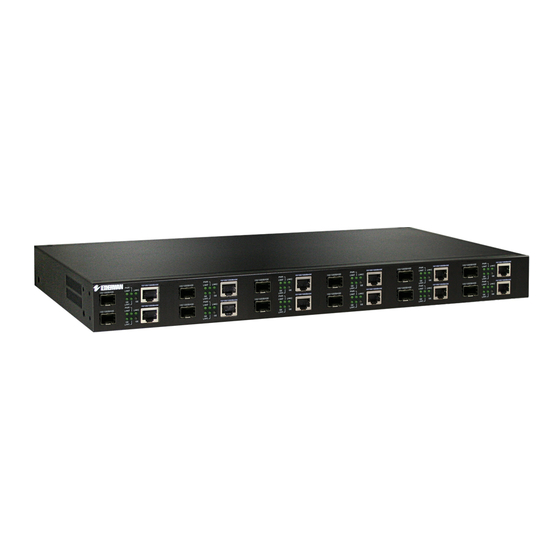

12-Bay Media Converter System Product Overview 12-Bay Media Converter System The 12-Bay Media Converter System can house up to twelve media converters in a 1U standard 19” rackmountable size. The front panel of the 12-Bay Media Converter System provides status LEDs. Figure 1: 12-Bay Media Converter System Package Contents When you unpack the product’s package, you should find the items... -
Page 4: Product Features
12-Bay Media Converter System Product Features ♦ Houses twelve channels of media conversion ♦ Front panel status LEDs ♦ Standard 19” rackmountable size, 1U high ♦ 2 Redundant Power Supplies ♦ 12-Bay 10/100Base-TX to 100Base-FX converters, 100Base- TX to 100Base-FX converters, 100Base-FX to 100Base-FX converters, 10/100/1000Base-TX to 1000Base-SX/LX converters, 1000Base-T to 1000Base-SX/LX converters, or 1000Base-SX/LX to 1000Base-SX/LX converters... -
Page 5: Understanding Leds
12-Bay Media Converter System NDERSTANDING 10/100TX to 100FX Media Converter LEDs State Indication Steady Power on PWR stands for POWER Power off 100 (Mbps) Steady Connection at the speed of 100Mbps Connection at the speed of 10Mbps LNK/ACT Steady A valid network connection established LNK stands for LINK Flashing Transmitting or receiving data... - Page 6 12-Bay Media Converter System 100FX to 100FX Media Converter LEDs State Indication Steady Power on Power off SDA/ SDB Steady A valid network connection established, (100FX) Transmitting and Receiving Neither valid network connection nor transmitting established 10/100/1000TX to 1000SX/LX Media Converter LEDs State Indication...
- Page 7 12-Bay Media Converter System 1000T to 1000SX/LX Media Converter LEDs State Indication Power Steady Power feeding in No power TX port: A valid network connection LNKC Steady established. LNKC stands for LINK/Copper No connection LNKF Steady FX port: A valid network connection established.
-
Page 8: Installation
12-Bay Media Converter System Installation Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: The ambient temperature should be between 32 and 113 degrees Fahrenheit (0 to 45 degrees Celsius). -
Page 9: Connecting To Power
12-Bay Media Converter System Connecting to Power Step 1: Connect the supplied AC power cords to the receptacles on the rear panel of the system. Step 2: Attach the plugs from each of the dual power supplies into standard AC outlets with a voltage range from 100~240VAC. Step 3: Turn on the system by flipping the ON/OFF switches beside the dual power supplies’... -
Page 10: Specifications
12-Bay Media Converter System Specifications Applicable IEEE 802.3 10Base-T, IEEE 802.3u Standards 100Base-TX/FX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base- SX/LX Speed – 10Base-T 10/20Mbps for half/full-duplex 100Base-TX/FX 100/200Mbps for half/full-duplex 1000Base-T/SX/LX 2000Mbps for full-duplex Forwarding rate 14,880pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps Dimensions 440mm (W) ×...
