  • Page 1 EL900 Series Hardened Media Converter User’s Guide...
  • Page 2 Disclaimer of Liability The information contained in this document is subject to change without notice. EtherWAN is not liable for any errors or omissions contained herein or for resulting damage in connection with the information provided in this manual.
  • Page 3: Preface

    Preface Audience This guide is designed for the person who installs, configures, deploys, and maintains the Ethernet network. This document assumes the reader has moderate hardware, computer, and Internet skills. Document Revision Level This section provides a history of the revision changes to this document. Revision Document Version Date...
  • Page 4: Table Of Contents

    Contents Preface ........................iii Safety and Warnings ....................iii Contents ........................iv Introduction ......................5 Unpacking ......................... 6 Select Installation Location ..................6 Connect Power ......................7 LED Indicators ......................9 DIP Switches ......................10 Link Fault Pass Through (LFPT) ................ 11 Relay Output Alarm ....................
  • Page 5: Introduction

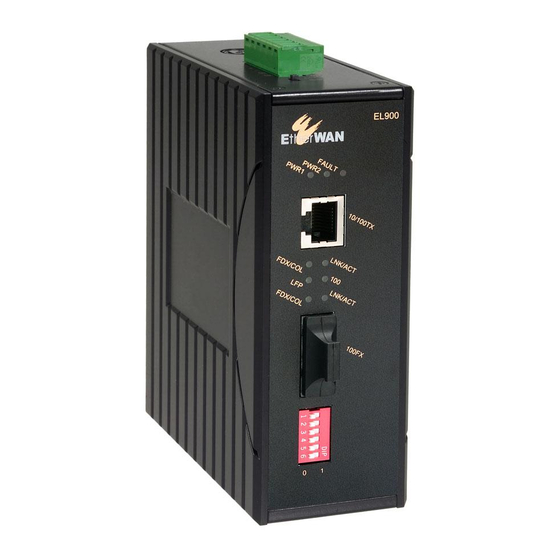

    Introduction EL900 Hardened Media Converter 10/100BASE-TX to 100BASE-FX This hardened media converter provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications. Capable of operating at temperature extremes of -40°C to +75°C, this is the media converter of choice for harsh environments constrained by space.
  • Page 6: Unpacking

    Open the carton and unpack the items. Your package should include an EL900 media converter, an AC to DC power adaptor and cable (optional) and a Quick Install Guide. If items are missing or damaged, notify your EtherWAN representative. Select Installation Location Installation is DIN rail-mount, or wall mount (in an enclosure or industrial panel).
  • Page 7: Connect Power

    Connect Power The media converter is equipped with an six-contact DC terminal block. The terminal block provides dual DC power inputs, and a relay output contact. Redundant power supply is supported, but only one power input is required for operation. Note that the media converter does not have a power switch; it is turned on/off by connecting/disconnecting power.
  • Page 8 Note: Use qualified power supply by SELV or double insulation of UL 60950 or UL 61010-1 or UL 61010-2-201 standards. Insert the DC input wires into the corresponding terminals, and tighten the clamp screws to hold them in place. Make sure that the plastic terminal block connector prongs are plugged firmly into the terminal block receptacles.
  • Page 9: Led Indicators

    LED Indicators State Indication Steady Power redundancy or port malfunction Fault Power redundancy/ports functioning normally Steady Power1 on Power1 off Steady Power2 on Power2 off Steady Connection at the speed of 100Mbps 100 (Mbps) Connection at the speed of 10Mbps Steady LFPT function enabled LFPT function disabled...
  • Page 10: Dip Switches

    DIP Switches Port, power and LFPT settings are made very simple by means of DIP (Dual Inline Package) switches on the bottom panel of the hardened media converter. EL900 DIP Switches Disable LFPT* Enable LFPT* Enable auto negotiation for TX port Enable forced mode for TX port TX port forced to 100Mbps TX port forced to 10Mbps...
  • Page 11: Link Fault Pass Through (Lfpt)

    Link Fault Pass Through (LFPT) LFPT (Link Fault Pass Through) is a feature that will pass a link fault through the device at each segment. If either of the copper TX links fails, the media converter will pass the fail state on throughout the link, taking down the middle fiber as well as the copper link on the opposite end.
  • Page 12: Features

    Features • Meets NEMA TS1/TS2 Environmental requirements: temperature, shock, and vibration for traffic control equipment. • Meets EN 61000-6-2 & EN 61000-6-3 EMC Generic Standard Immunity for industrial environments. • Supports 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, full/half-duplex; Auto MDI/MDIX. • 100Base-FX: Multi mode SC or ST type; Single mode SC or ST type; WDM Single mode SC type.
  • Page 13: Specifications

    Specifications IEEE 802.3 10Base-T Applicable standards IEEE 802.3u 100Base-TX/FX Switching method Store and Forward Forwarding rate 14,880/148,810pps for 10/100Mbps 10/20Mbps for half/full-duplex Speed 10Base-T 100Base-TX/FX 100/200Mbps for half/full-duplex Cable 10Base-T 2-pair UTP/STP Cat. 3, 4, 5 up to 100m 100Base-TX 2-pair UTP/STP Cat.
  • Page 14 FCC Part 15, Class A EN 61000-6-3: EN 55022, EN 61000-3-2, EN 61000-3-3 EN 61000-4-2 (ESD Standard) EN 61000-4-3 (Radiated RFI Standards) EN 61000-4-4 (Burst Standards) EN 61000-4-5 (Surge Standards) EN 61000-4-6 (Induced RFI Standards) EN 61000-4-8 (Magnetic Field Standards) IEC 60068-2-6 Fc (Vibration Resistance) Environmental Test IEC 60068-2-27 Ea (Shock)
  • Page 15: Manufacturer's Information

    Email: info@etherwan.com Email: info@etherwan.com.tw EtherWAN has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose, and makes no express warranties, except as may be stated in its written agreement with and for its customers.
