Quick Start Guide
This quick start guide describes how to install and use the Gigabit SFP
hardened media converter. This is the media converter of choice for harsh
environments constrained by space.

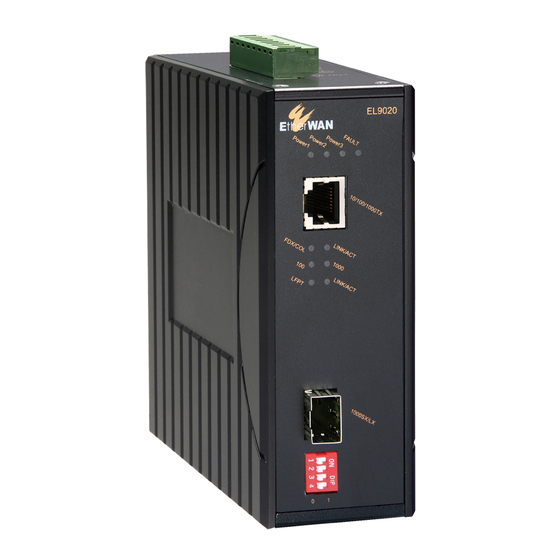

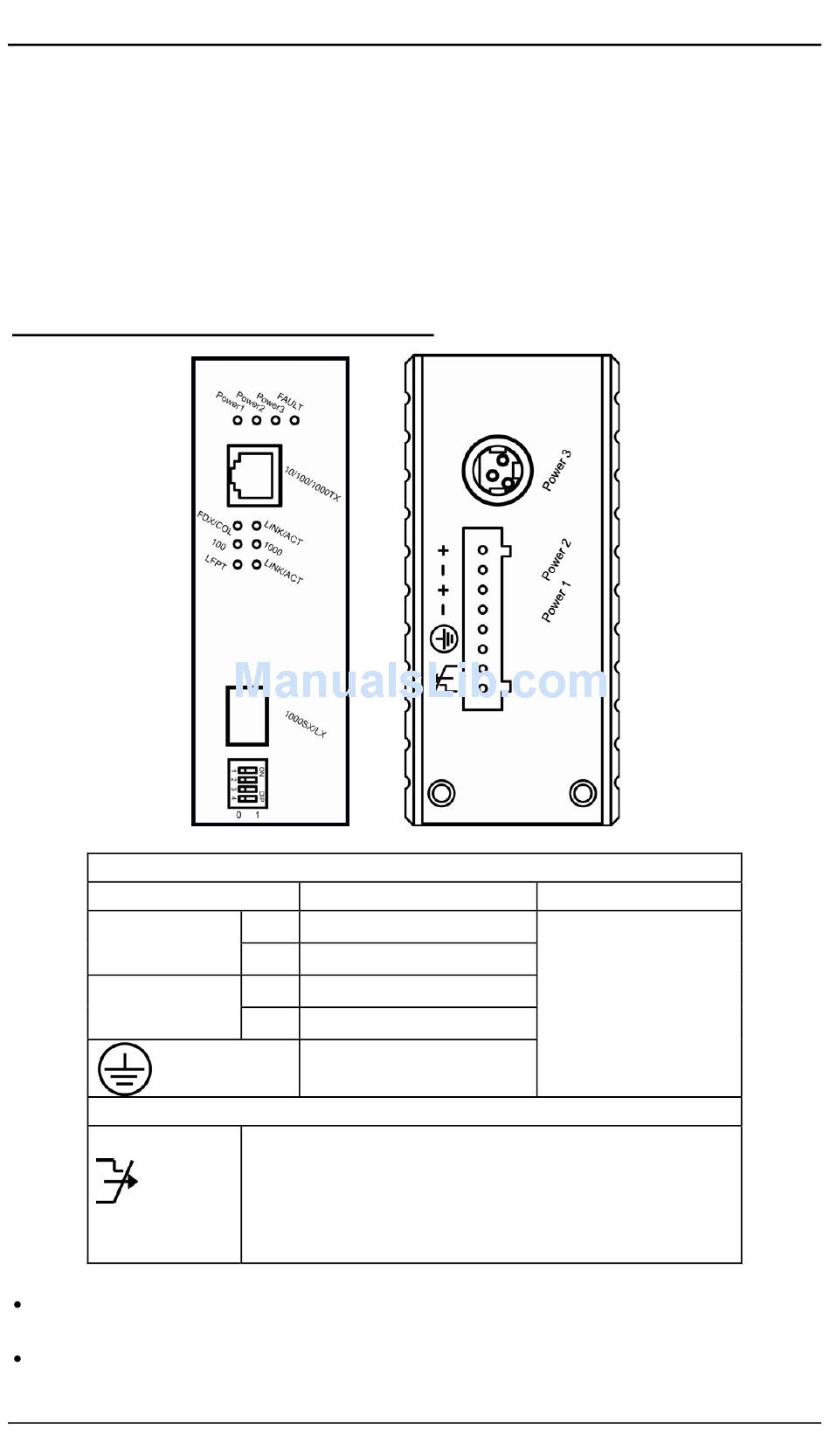

Physical Description
The Terminal Block and Power inputs
Power Input Assignment
Power3
Power2
Power1
Relay Alarm Assignment
FAULT
DC Terminal Block Power Inputs: There are two pairs of power inputs
can be used to power up this media converter.
DC JACK Power input: 12VDC.
Gigabit SFP Hardened Media Converter
12VDC
12-48VDC
＋
Power Ground
－
12-48VDC
＋
Power Ground
－
Earth Ground
*Relay warning signal disable for following:
The relay contact closes if Power1 and
Power2 are both failed but Power3 on.
The relay contact closes if Power3 is failed
but Power1 and Power2 are both on.
DC Jack
Terminal Block
1
