Preface

This manual describes how to install and use the Ethernet Media
Converter with the link-fault-pass-through function. The Converter
introduced here provides one channel media conversion between
10/100Base-TX and 100Base-FX.
The
Converter
IEEE802.3u 100Base-TX/FX standards.
In this manual, you will find:
Product overview
Features on the media converter
Illustrative LED functions
Installation instructions
Specifications
User's Manual
fully
complies
with
IEEE802.3
Media Converter
10Base-T
and
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL100 and is the answer not in the manual?

Questions and answers

Related Manuals for EtherWAN EL100

Summary of Contents for EtherWAN EL100

  • Page 1: Preface

    Media Converter Preface This manual describes how to install and use the Ethernet Media Converter with the link-fault-pass-through function. The Converter introduced here provides one channel media conversion between 10/100Base-TX and 100Base-FX. Converter fully complies with IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX standards. In this manual, you will find: Product overview Features on the media converter...

  • Page 2: Table Of Contents

    Media Converter Table of Contents ........................1 REFACE ....................2 ABLE OF ONTENTS ......................3 NTRODUCTION ................3 RODUCT VERVIEW ................3 RODUCT EATURES ..................4 ACKING ................ 5 HANNEL EDIA ONVERTER ....................5 ORTS ..................5 ETTINGS & LED ................

  • Page 3: Introduction

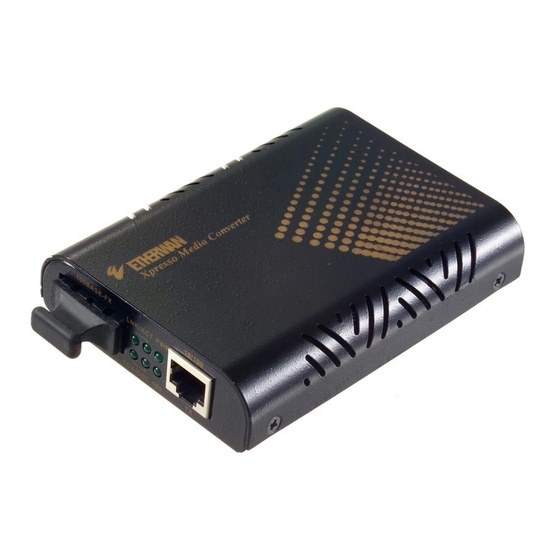

    Media Converter Introduction The media converter provides one channel for media conversion between 10/100Base-TX and 100Base-FX. It can be used as a stand alone device or with a standard 19” chassis as shown below. Product Overview <NOTE> The chassis is to be ordered separately. Product Features One-channel media conversion between 10/100Base-TX and 100Base-FX Fiber media allows:...

  • Page 4: Packing List

    Media Converter Packing List When you unpack this product package, you will find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to our authorized reseller. The Media Converter User’s Manual AC to DC Power Adaptor User’s Manual...

  • Page 5: One-Channel Media Converter

    Media Converter One-Channel Media Converter Ports The Converter provides one TX port and one FX port. For the FX port, it provides options of Multi-mode fiber using SC, ST, VF-45, MT-RJ or LC connector or Single-mode fiber using SC or ST connector or WDM fiber using single SC connector For the TX port, it uses RJ-45 connector and auto senses the speed of 10/100Mbps.

  • Page 6: Front Panel & Leds

    Media Converter Front Panel & LEDs LED Indicators The LED indicators give you instant feedback on status of the converter: LEDs State Indication Steady Power on PWR stands for POWER Power off 100 (Mbps) Steady Connection at the speed of 100Mbps Connection at the speed of 10Mbps LNK/ACT Steady...
  • Page 7 Media Converter Link Fault of the FX port TX Port FX Port LEDs LNK/ACT FDX/COL LNK/ACT FDX/COL Media Converter Media Converter Link Fault of the TX port of the Media Converter A TX Port FX Port LEDs LNK/ACT FDX/COL LNK/ACT FDX/COL Media Converter...

  • Page 8: Installation

    Media Converter Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: The ambient temperature should be between 32 and 113 degrees Fahrenheit (0 to 45 degrees Celsius).

  • Page 9: Specifications

    Media Converter Specifications Applicable Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX & 100Base-FX Fixed Ports 1 TX port, 1 FX port 10Base-T speed 10/20Mbps for half/full-duplex 100Base-TX/FX speed 100/200Mbps for half/full-duplex Switching Method Store-and-Forward Forwarding rate 14,880/148,810pps for 10/100Mbps LED Indicators Per Unit- (2 LEDs): Power;...
