- Page 1 EL1142 Series IEC 61850 / IEEE 1613 Hardened 2-Port 10/100BASE-TX to 2-Port 100BASE-FX Media Converter User’s Guide...
- Page 2 Disclaimer of Liability The information contained in this document is subject to change without notice. EtherWAN is not liable for any errors or omissions contained herein or for resulting damage in connection with the information provided in this manual.
-
Page 3: Preface
Preface Audience This guide is designed for the person who installs, configures, deploys, and maintains the Ethernet network. This document assumes the reader has moderate hardware, computer, and Internet skills. Document Revision Level This section provides a history of the revision changes to this document. Revision Document Version Date... -
Page 4: Table Of Contents
Contents Preface ........................iii Safety and Warnings ....................iii Contents ........................iv Introduction ......................5 Unpacking ......................... 6 Select Installation Location ..................6 Connect Power ......................7 LED Indicators ......................8 DIP Switches ......................9 Link Fault Pass Through (LFPT) ................9 Relay Output Alarm .................... -
Page 5: Introduction

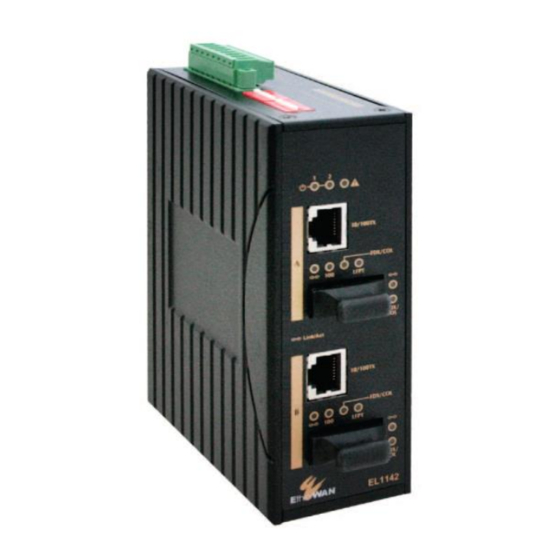

2 x 100BASE-SX-LX fiber. Similar to the EL1141 series media converter, the EL1142 includes the hardened construction and high performance needed for mission critical applications, including power substation automation. However, the EL1142 series offers twice the port density in the same housing dimensions, providing greater flexibility and requiring less space for installation. -
Page 6: Unpacking
Open the carton and unpack the items. Your package should include an EL1142 media converter, this Quick Install Guide, and a CD containing the user’s manual. If items are missing or damaged, notify your EtherWAN representative. Select Installation Location Installation is DIN-rail, panel or rack mounting. Ensure that the power source is within 6 feet (1.8 meters), and check that there is adequate airflow. -
Page 7: Connect Power
Connect Power The media converter is equipped with an eight-contact terminal block. The terminal block provides dual DC power inputs, and a relay output contact. Redundant power supply is supported, but only one power input is required for operation. Note that the media converter does not have a power switch; it is turned on/off by connecting/disconnecting power. -
Page 8: Led Indicators
LED Indicators State Indication Steady Power redundancy or port malfunction Fault (Red) Power redundancy and ports functioning normally Steady Power 1 on Power1 (Green) Power 1 off Steady Power 2 on Power2 (Green) Power 2 off Steady Connection at 100Mbps 100 (Mbps) Connection at 10Mbps Steady... -
Page 9: Dip Switches
DIP Switches Port, power and LFPT settings are made very simple by means of two sets of six DIP (Dual Inline Package) switches on the top panel of the hardened media converter. Default position for all DIP switches is ‘0’. Switch Disable LFPT Enable LFPT... -
Page 10: Relay Output Alarm
Relay Output Alarm The media converter is equipped with relay output contacts on the terminal block for signaling of a power or port failure. The relay output can be connected to an alarm signaling device. Current is 0.6A @ 30VDC. Default is PW1 and PW2 both off and points 2 & 3 open. Relay contact PW1 PW2 Point... -
Page 11: Specifications
Specifications Applicable standards IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX/FX IEEE802.3x Full duplex and flow control Fixed ports 2 copper ports, 2 100BASE fiber ports (MM or SM)SC Forwarding rate 14,880/148,810pps for 10/100Mbps Dimensions 50 × 110 x 135mm (W x D x H) (2”... -
Page 12: Manufacturer's Information
Email: info@etherwan.com Email: info@etherwan.com.tw EtherWAN has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose, and makes no express warranties, except as may be stated in its written agreement with and for its customers.
