Quick Start Guide

This quick start guide describes how to install and use the hardened media
converter.
This is the media converter of choice for harsh environments
constrained by space.

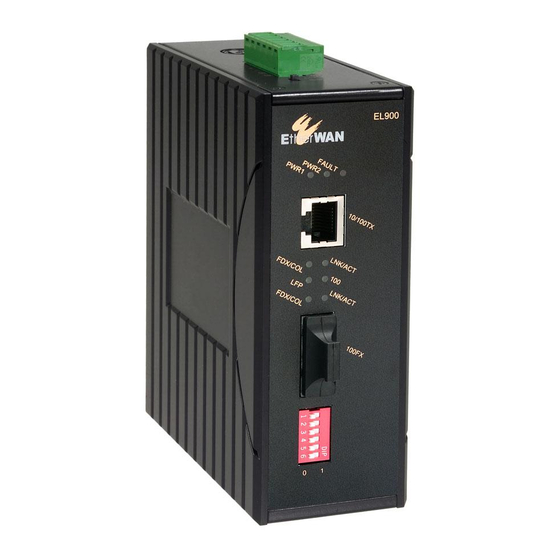

Physical Description

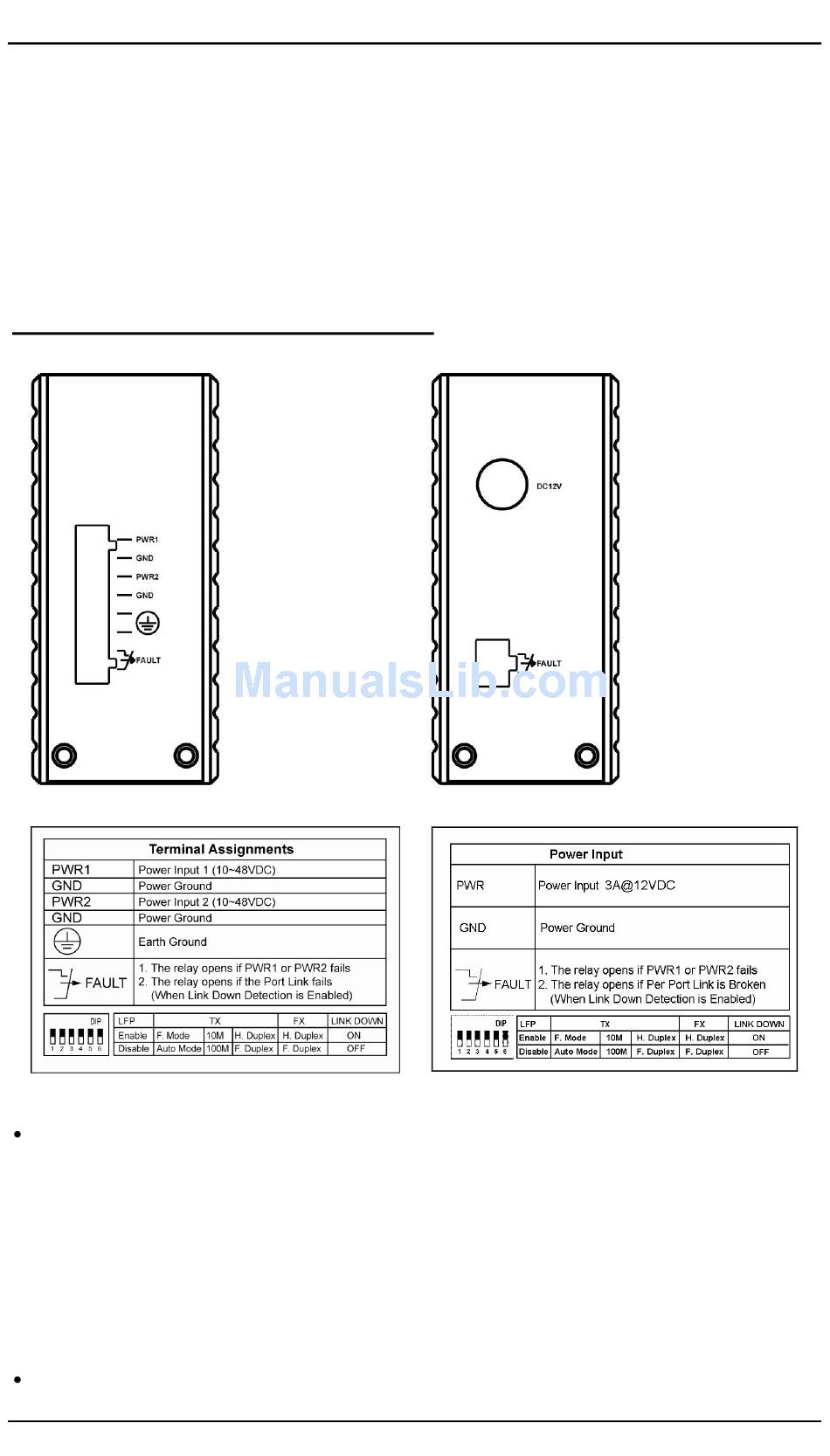

The Terminal Block and Power inputs
DC Terminal Block Power Inputs: There are two pairs of power inputs
can be used to power up this media converter. Redundant power
supplies function is supported. You need to have two power inputs
connected to run the media converter, but the FAULT LED indicator
will light up to remind that the power redundant system functions
abnormal in case either PWR1 or PWR2 is dead. Media Converter,
however, continues working normally even fault LED indicator lights
up.
DC JACK Power input: 12VDC.
Hardened Media Converter
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL900 Series and is the answer not in the manual?

Questions and answers

Related Manuals for EtherWAN EL900 Series

Summary of Contents for EtherWAN EL900 Series

  • Page 1: Quick Start Guide

    Hardened Media Converter Quick Start Guide This quick start guide describes how to install and use the hardened media converter. This is the media converter of choice for harsh environments constrained by space. Physical Description The Terminal Block and Power inputs DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this media converter.
  • Page 2 Hardened Media Converter The 10/100Base-TX and 100Base-FX Connectors 1. The 10/100Base-TX Connections The following lists the pinouts of 10/100Base-T/TX ports. Regular Ports Uplink port Output Transmit Data + Input Receive Data + Output Transmit Data - Input Receive Data - Input Receive Data + Output Transmit Data + Input Receive Data -...
  • Page 3 Hardened Media Converter The Port Status LEDs LEDs State Indication FAULT Steady Power redundant system or port function abnormally Power redundant system and ports function normally PWR1 Steady Power on PWR2 PWR stands for POWER Power off 100 (Mbps) Steady Connection at the speed of 100Mbps Connection at the speed of 10Mbps Steady...

  • Page 4: Functional Description

    Hardened Media Converter Functional Description Meets NEMA TS1/TS2 Environmental requirements: temperature, shock, and vibration for traffic control equipment. Meets EN61000-6-2 & EN61000-6-3 EMC Generic Standard Immunity for industrial environment. Support 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, full/half-duplex; Auto MDI/MDIX. 100Base-FX: Multi mode SC or ST type; Single mode SC or ST type; WDM Single mode SC type.
  • Page 5 Hardened Media Converter...

  • Page 6: Preface

    Hardened Media Converter Preface This hardened media converter provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications. Capable of operating at temperature extremes of -40°C to +75°C, this is the media converter of choice for harsh environments constrained by space.

  • Page 7: Table Of Contents

    Hardened Media Converter Table of Contents ..............1 UICK TART UIDE ..........1 HYSICAL ESCRIPTION ...........4 UNCTIONAL ESCRIPTION ......4 SSEMBLY TARTUP ISMANTLING ...................6 REFACE ..............7 ABLE OF ONTENTS ................8 NTRODUCTION ...........8 RODUCT VERVIEW ...........8 RODUCT EATURES ..............9 ACKING ........10 HANNEL EDIA ONVERTER ...............10 ORTS...

  • Page 8: Introduction

    Hardened Media Converter Introduction The media converter provides one channel for media conversion between 10/100Base-TX and 100Base-FX with the link-fault-pass-through function. This hardened fiber optic solution is perfectly fitted in the industrial applications or rugged environment. Product Overview Product Features Meets NEMA TS1/TS2 Environmental requirements: temperature, shock, and vibration for traffic control equipment.

  • Page 9: Packing List

    Hardened Media Converter Operating voltage and Max. current consumption: 0.36A @ 12VDC, 0.18A @ 24VDC, 0.09A @ 48VDC. Power consumption: 4.32W Max. Power Supply: Redundant DC Terminal Block power inputs or 12VDC DC JACK with 100-240VAC external power supply. Field Wiring Terminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG torque value 7 lb-in.

  • Page 10: One-Channel Media Converter

    Hardened Media Converter One-Channel Media Converter Ports The Converter provides one TX port and one FX port. For the FX port, it provides options of Multi-mode fiber using SC or ST connector or Single-mode fiber using SC or ST connector or WDM fiber using single SC connector For the TX port, it uses RJ-45 connector, auto-MDIX, and auto negotiates 10/100Mbps and full/half-duplex.

  • Page 11: Front Panel & Leds

    Hardened Media Converter Toggle Pin 3 to position 0 to force the TX port at the speed of 100Mbps. Or toggle Pin 3 to position 1 for 10Mbps speed. Toggle Pin 4 to position 0 to force the TX port at full duplex mode. Or toggle Pin 4 to position 1 for half duplex mode.

  • Page 12: Link-Fault-Pass-Through

    Hardened Media Converter Link-Fault-Pass-Through Connect the FX ports of two Media Converter A and B through the fiber cable. Link Fault of the FX port: A Link Fault condition will be sensed on the TX port whenever the media converter detects a Link Fault condition on the FX port. Thus, the 100, LNK/ACT, and FDX/COL LEDs of the media converter would be off.

  • Page 13: Installation

    Hardened Media Converter Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference.

  • Page 14: Connecting To Power

    Hardened Media Converter Connecting to Power Redundant DC Terminal Block Power Inputs or 12VDC DC Jack: 12VDC DC Jack Step 1: Connect the supplied AC to DC power adapter to the receptacle on the topside of the media converter. Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into a standard AC outlet with the appropriate AC voltage.
  • Page 15 Hardened Media Converter Redundant DC Terminal Block Power Inputs There are two pairs of power inputs can be used to power up this device. You need to have two power inputs connected to run the media converter, but the FAULT LED indicator will light up to remind that the power redundant system functions abnormal in case either PWR1 or PWR2 is dead.
  • Page 16 Hardened Media Converter Field Wiring Terminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG torque value 7 lb-in. Alarms for Power and Port Failure Step 1: There are two pins on the terminal block are used for power failure detection. It provides the normally closed output when the power source is active.

  • Page 17: Specifications

    Hardened Media Converter Specifications Applicable Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/FX Fixed Ports 1 TX port, 1 FX port Speed 10Base-T 10/20Mbps for half/full-duplex 100Base-TX/FX 100/200Mbps for half/full-duplex Switching Method Store-and-Forward Forwarding rate 14,880/148,810pps for 10/100Mbps Cable 10Base-T 2-pair UTP/STP Cat. 3, 4, 5 up to 100m 100Base-TX 2-pair UTP/STP Cat.
  • Page 18 Hardened Media Converter FCC Part 15, Class A EN61000-6-3: EN55022, EN61000-3-2, EN61000-3-3 EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) IEC60068-2-6 Fc (Vibration Resistance) Environmental Test IEC60068-2-27 Ea (Shock) Compliance IEC60068-2-32 Ed (Free Fall)
