MULTISPAN VPR 3P Manual page 3

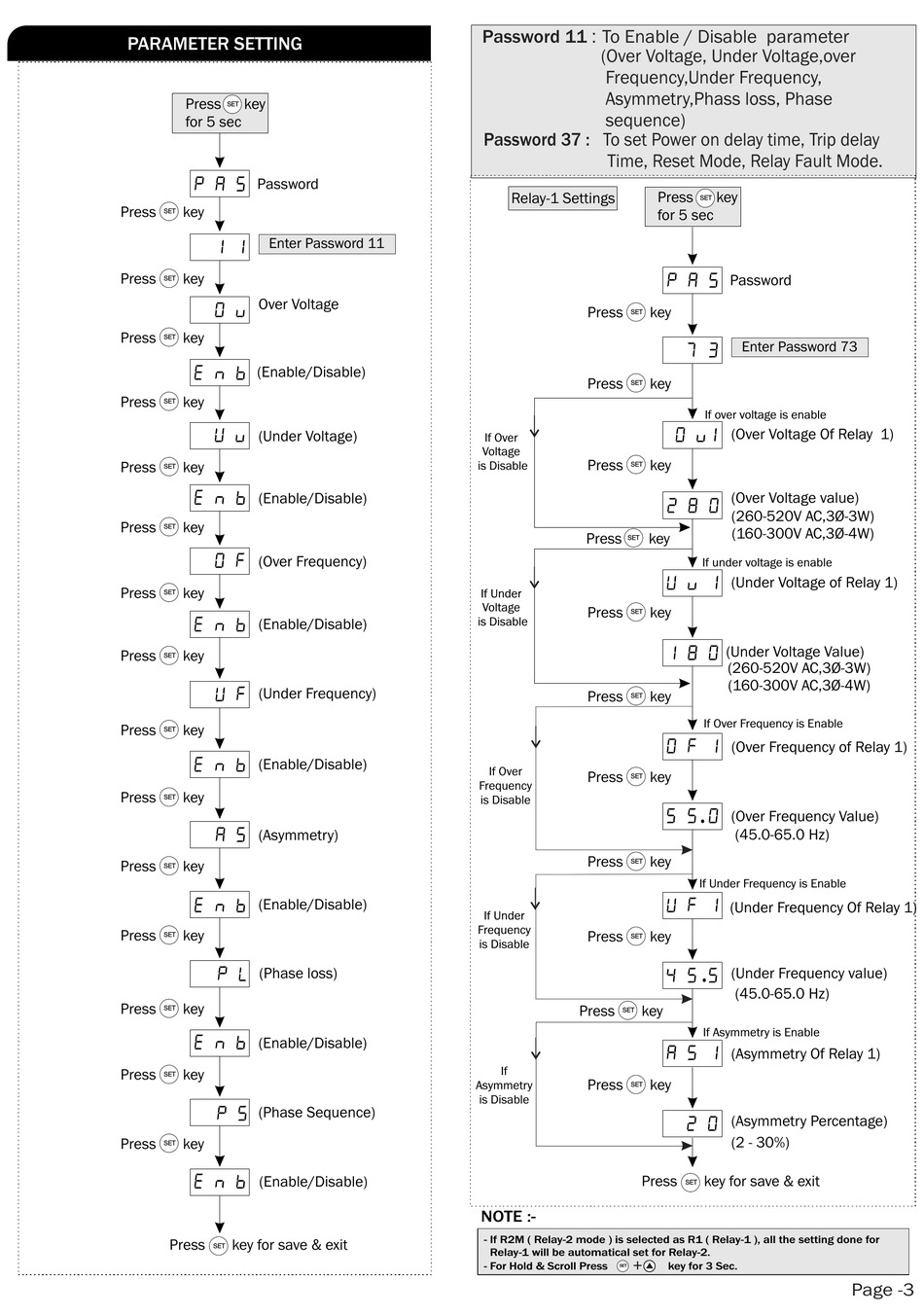

PARAMETER SETTING
Press key
SET
for 5 sec
p a s
Password
Press key
SET
Enter Password 11
1 1
Press key
SET
Over Voltage
O V
Press key
SET
e n b
(Enable/Disable)
Press key
SET
u V
(Under Voltage)
Press key
SET
e n b
(Enable/Disable)
Press key
SET
O F
(Over Frequency)
Press key
SET
e n b
(Enable/Disable)
Press key
SET
u F
(Under Frequency)
Press key
SET
e n b
(Enable/Disable)
Press key
SET
a s
(Asymmetry)
Press key
SET
e n b
(Enable/Disable)
Press key
SET
p L
(Phase loss)
Press key
SET
e n b
(Enable/Disable)
Press key
SET
p s (Phase Sequence)
Press key
SET
e n b
(Enable/Disable)
Press key for save & exit
SET
Password 11 : To Enable / Disable parameter
(Over Voltage, Under Voltage,over
Frequency,Under Frequency,
Asymmetry,Phass loss, Phase
sequence)
Password 37 : To set Power on delay time, Trip delay
Time, Reset Mode, Relay Fault Mode.
Relay-1 Settings
Press key
SET
Press key
SET
If Over
Voltage
Press key
is Disable
SET
Press key
SET
If Under
Voltage
Press key
SET
is Disable
Press key
SET
If Over
Press key
SET
Frequency
is Disable
Press key
SET
If Under
Frequency
Press key
SET
is Disable
Press key
SET
If
Press key
Asymmetry
SET
is Disable
Press
NOTE :-
- If R2M ( Relay-2 mode ) is selected as R1 ( Relay-1 ), all the setting done for
Relay-1 will be automatical set for Relay-2.
+
- For Hold & Scroll Press
SET
Press key
SET
for 5 sec
p a s
Password
Enter Password 73
7 3
If over voltage is enable
O V1
(Over Voltage Of Relay 1)
(Over Voltage value)
2 8 0
(260-520V AC,3Ø-3W)
(160-300V AC,3Ø-4W)
If under voltage is enable
u V 1
(Under Voltage of Relay 1)
1 8 0 (Under Voltage Value)
(260-520V AC,3Ø-3W)
(160-300V AC,3Ø-4W)
If Over Frequency is Enable
O F 1
(Over Frequency of Relay 1)
5 5 0
(Over Frequency Value)
(45.0-65.0 Hz)
If Under Frequency is Enable
U F 1
(Under Frequency Of Relay 1)
4 S S (Under Frequency value)
(45.0-65.0 Hz)
If Asymmetry is Enable
A S 1
(Asymmetry Of Relay 1)
(Asymmetry Percentage)
2 0
(2 - 30%)
key for save & exit
SET
key for 3 Sec.
Page -3
