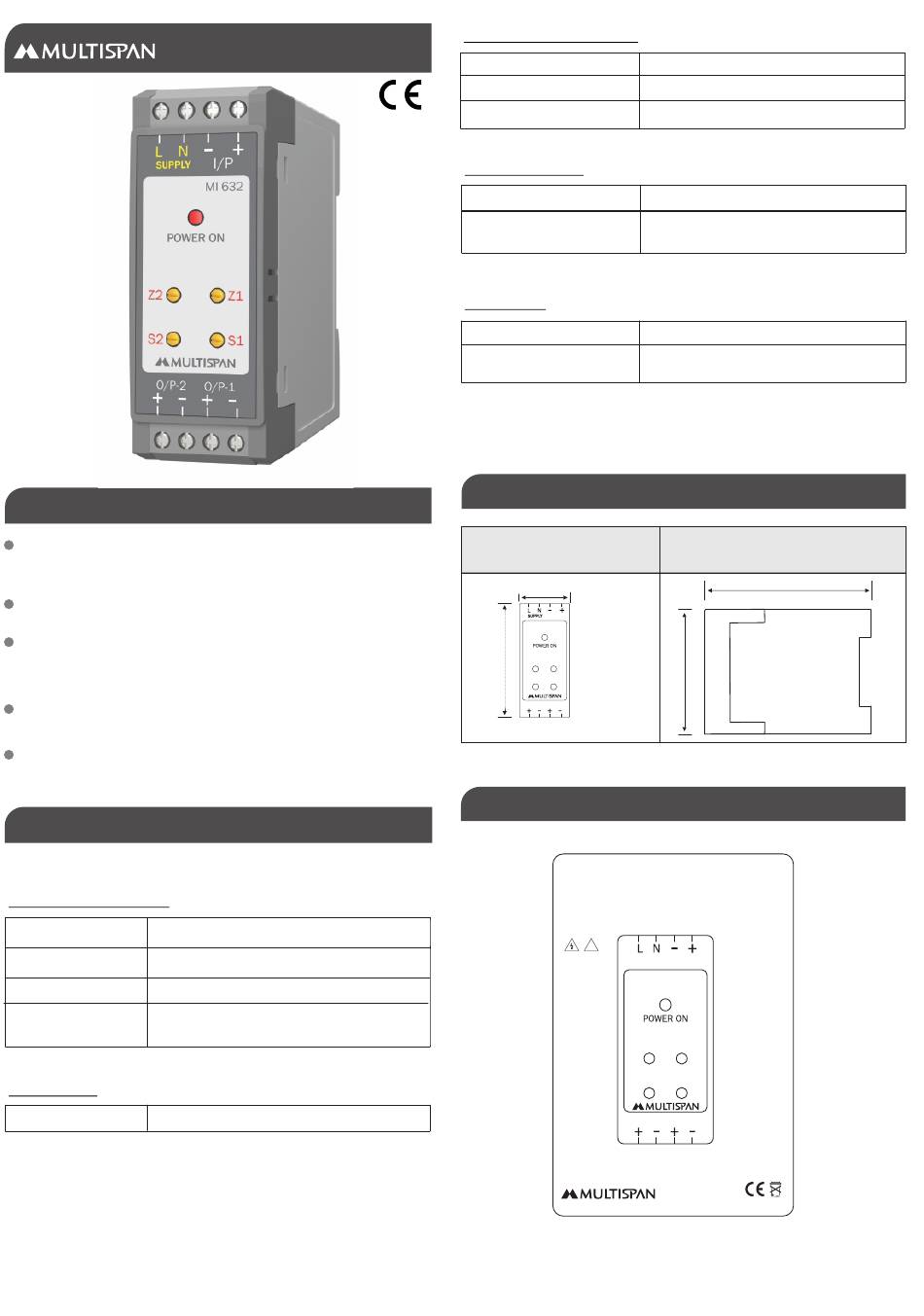

FEATURES
1.5KV isolation between supply, input &
output
Linearized O/P
Zero & span correction facility through
trim port
Fast Response time <150ms
Din Rail Mounting
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
4- 20 mA DC
<100
Input Inpedance
CMRR
>120dp (Typical)
Temperature
<100
Co-efficient
DIMENSION:
76 X 27 X 85
Size (HxWxD) mm

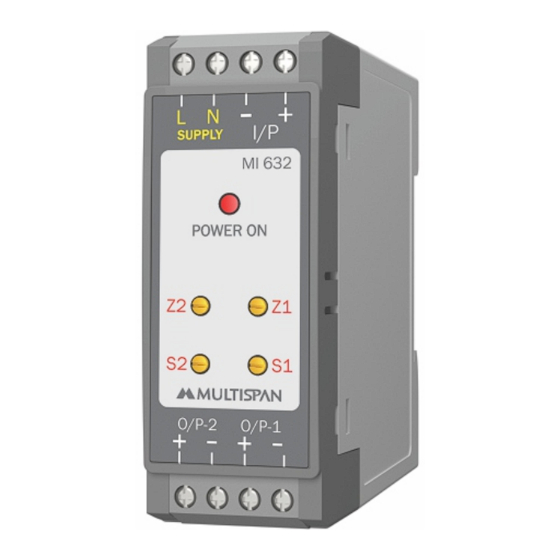

SIGNAL ISOLATOR
MI-632
Ω
PPM
OUTPUT SPECIFICATION:
Output 1 & 2
Response Type
Output Inpedance
POWER SUPPLY:
Auxiliary Voltage
Power Consumption
( VA Rating )
ISOLATION:
Isolation Type
Isolation between
supply, input & Output
MECHANICAL INSTALLATION
Front view (mm)
27
I/P
MI 632
76
Z2
Z1
S2
S1
O/P-2
O/P-1
TERMINAL CONNECTION
MI 632-A2-A-AA
Supply
100 To 270V AC
50/60Hz, 5VA
!
SUPPLY
Z2
S2
O/P-2
Output 2
4 To 20mA DC
www.multispanindia.com
4 to 20mA DC
<150ms
Ω
<500
100 to 270V AC,50/60Hz
5VA @230V AC
Optical - 3 way
At least 1.5KV AC for 1 min
Side view (mm)
85
76
Input
4 To 20mA DC
I/P
MI 632
Z1
S1
O/P-1
Output 1
4 To 20mA DC
Made in India
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MULTISPAN MI-632
Summary of Contents for MULTISPAN MI-632
- Page 1 OUTPUT SPECIFICATION: SIGNAL ISOLATOR MI-632 Output 1 & 2 4 to 20mA DC Response Type <150ms Output Inpedance Ω <500 POWER SUPPLY: Auxiliary Voltage 100 to 270V AC,50/60Hz Power Consumption 5VA @230V AC ( VA Rating ) ISOLATION: Isolation Type...
