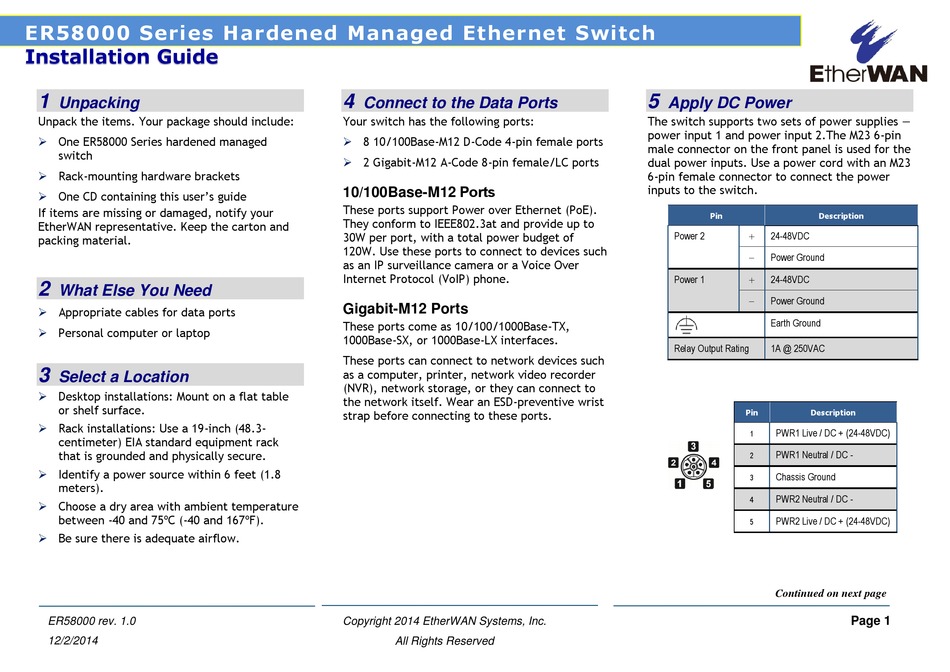

EtherWAN ER58000 Series Installation Manual

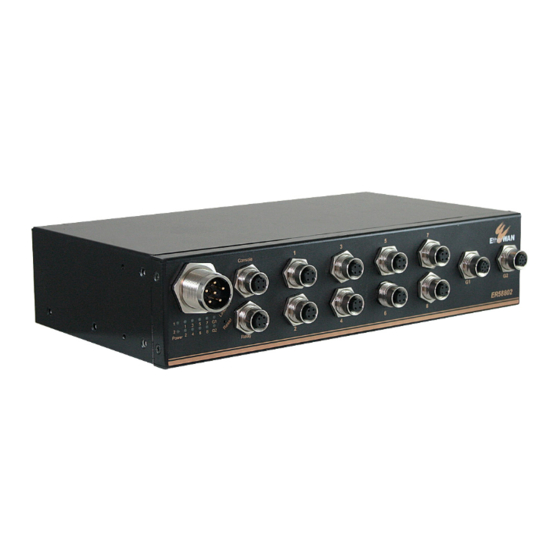

ER58000 Series Hardened Managed Ethernet Switch
Installation Guide
1
Unpacking
Unpack the items. Your package should include:
One ER58000 Series hardened managed

switch
 Rack-mounting hardware brackets
One CD containing this user's guide

If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2
What Else You Need
 Appropriate cables for data ports
Personal computer or laptop

3
Select a Location
 Desktop installations: Mount on a flat table
or shelf surface.
 Rack installations: Use a 19-inch (48.3-
centimeter) EIA standard equipment rack
that is grounded and physically secure.
 Identify a power source within 6 feet (1.8
meters).
 Choose a dry area with ambient temperature
between -40 and 75ºC (-40 and 167ºF).
 Be sure there is adequate airflow.
ER58000 rev. 1.0
12/2/2014
4
Connect to the Data Ports
Your switch has the following ports:
8 10/100Base-M12 D-Code 4-pin female ports

 2 Gigabit-M12 A-Code 8-pin female/LC ports
10/100Base-M12 Ports
These ports support Power over Ethernet (PoE).
They conform to IEEE802.3at and provide up to
30W per port, with a total power budget of
120W. Use these ports to connect to devices such
as an IP surveillance camera or a Voice Over
Internet Protocol (VoIP) phone.
Gigabit-M12 Ports
These ports come as 10/100/1000Base-TX,
1000Base-SX, or 1000Base-LX interfaces.
These ports can connect to network devices such
as a computer, printer, network video recorder
(NVR), network storage, or they can connect to
the network itself. Wear an ESD-preventive wrist
strap before connecting to these ports.
Copyright 2014 EtherWAN Systems, Inc.
All Rights Reserved
5
Apply DC Power
The switch supports two sets of power supplies —
power input 1 and power input 2.The M23 6-pin
male connector on the front panel is used for the
dual power inputs. Use a power cord with an M23
6-pin female connector to connect the power
inputs to the switch.
Pin Description

Power 2 24-48VDC

Power Ground

Power 1 24-48VDC

Power Ground
Earth Ground
Relay Output Rating 1A @ 250VAC
Pin Description
PWR1 Live / DC + (24-48VDC)
1
PWR1 Neutral / DC -
2
Chassis Ground
3
PWR2 Neutral / DC -
4
PWR2 Live / DC + (24-48VDC)
5
Continued on next page
