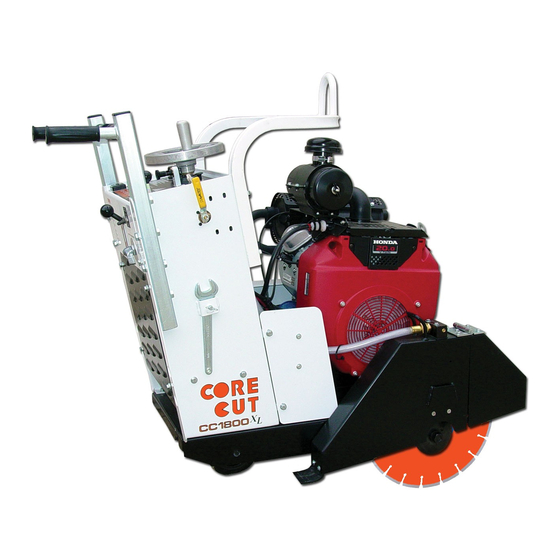

- Page 1 DIAMOND P R O D U C T S OPERATOR’S MANUAL CONCRETE SAW MODEL CC1800XL February 2007 Part #1801038...
- Page 2 Intentionally Blank...
- Page 3 GENERAL SAFETY WARNINGS AND PRECAUTIONS PERSONAL SAFETY • Read and understand all operating instructions before attempting to operate the saw. • Always wear safety approved hearing, eye, head and respiratory protection. • Always wear sturdy boots with non-slip soles to ensure proper footing. Use of steel toed safety boots is recommended. •...
- Page 4 CONCRETE SAW OPERATING INSTRUCTIONS ASSEMBLY 8. Saw only as deep as the specifications and job 1. Set handles to desired height and securely conditions require. This will save blade life and tighten bolts. The handles are mirror image reduce sawing costs. Sawing excessively deep and can be reversed, depending on operators is wasteful and should be avoided.
- Page 5 CONCRETE SAW OPERATING INSTRUCTIONS clockwise. When the blade reaches desired should never be allowed to slip. After four hours depth, release index plunger. of use, re-tension belts to make up for initial 4. During cutting do not exert excessive side stretch.
- Page 6 CONCRETE SAW OPERATING INSTRUCTIONS WARNING: Over speeding the engine and blade shaft can cause serious damage to the blade and could result in injury to the operator and bystanders. Do not exceed the following speeds: No load blade shaft – 2800 RPM, no load engine –...
- Page 7 Intentionally Blank...
- Page 8 (1) year from the date of shipment to Customer. The responsibility of Diamond Products under this Warranty is limited to replacement or repair of defective parts at Diamond Products’ Elyria, Ohio...
