Element 3 0 M anual
17) P IPE A DAPTOR K IT R D2311
FITTING I NSTRUCTIONS

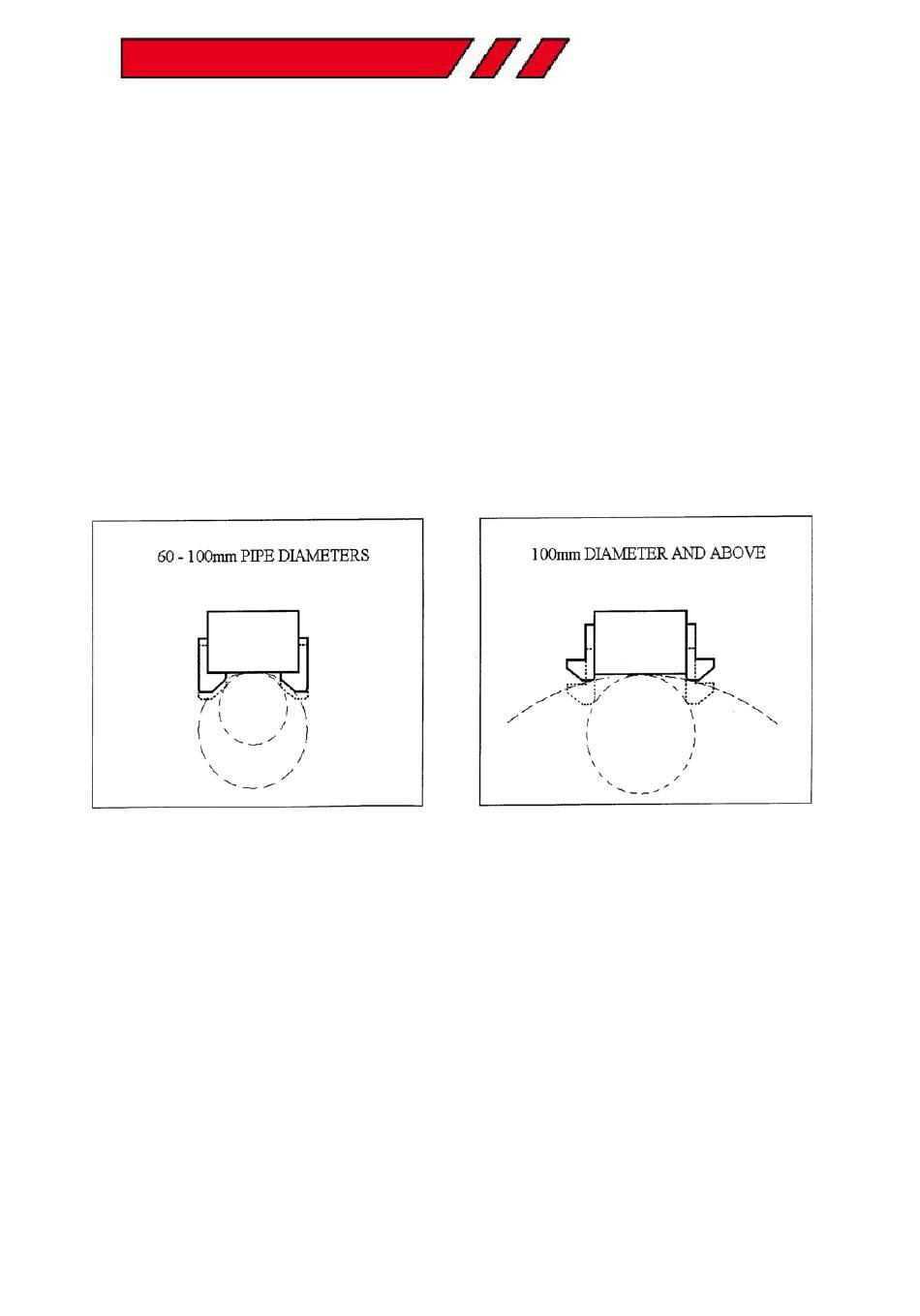

Dependent u pon t he s ize o f t he p ipe t o b e c ut ( see i llustrations) a ttach a djustable a ngle
•
plates R D3328 w ith c ap s crews R D4325 a nd w ashers R D4205 ( 4 o ff e ach) t o t he m agnet
sides. D o n ot t ighten.
• Locate t he m achine o n t he c entreline o f t he p ipe t aking c are t hat t he m agnet i s i n l ine
with t he l ongitudinal a xis o f t he p ipe.
• Switch o n t he m agnet a nd m ove t he s liding p lates d own t o t he o utside d iameter o f t he
pipe. T ighten t he s crews o n b oth s ides b y h and t hen c heck o nce a gain t hat t he f ull
length o f t he m oving p lates i s t ouching t he p ipe a t t he f ront a nd b ack, f asten t he p late
securely. F eed t he s afety s trap t hrough t he l ugs a t t he f ront o f t he h ousing, a round t he
pipe a nd p ull t ight.
When c utting t he h ole D O N OT u se e xcessive p ressure b ut r ather l et t he c utter e ase i nto
•
the c utting s urface.
18
Original i nstructions Jan 2 015
