[11] P IPE A DAPTOR K IT R D2311
FITTING I NSTRUCTIONS

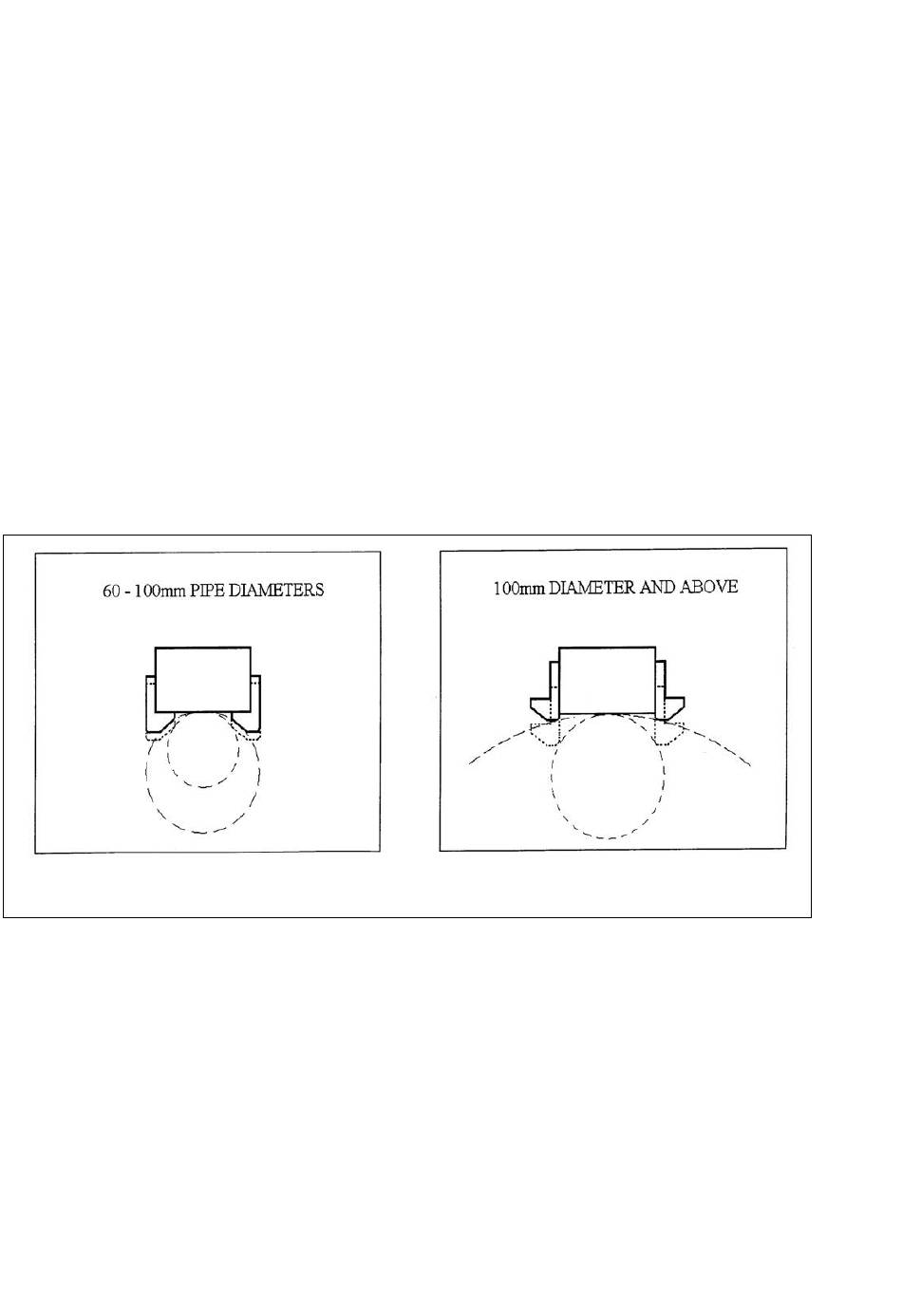

Dependent u pon t he s ize o f t he p ipe t o b e c ut ( see i llustrations) a ttach a djustable a ngle p lates
•
RD3328 w ith c ap s crews R D4325 a nd w ashers R D4205 ( 4 o ff e ach) t o t he m agnet s ides. D o n ot
tighten.
Locate t he m achine o n t he c entreline p ipe t aking c are t hat t he m agnet i s i n l ine w ith t he
•
longitudinal a xis o f t he p ipe.
Switch o n t he m agnet a nd m ove t he s liding p lates d own t o t he o utside d iameter o f t he p ipe.
•
Tighten t he s crews o n b oth s ides b y h and t hen c heck o nce a gain t hat t he f ull l ength o f t he
moving p lates i s t ouching t he p ipe a t t he f ront a nd b ack, f asten t he p late s ecurely. F eed t he
safety s trap t hrough t he l ugs a t t he f ront o f t he h ousing, a round t he p ipe a nd p ull t ight.
When c utting t he h ole D O N OT u se e xcessive p ressure b ut r ather l et t he c utter e ase i nto t he
•
cutting s urface.
