Power modules errors

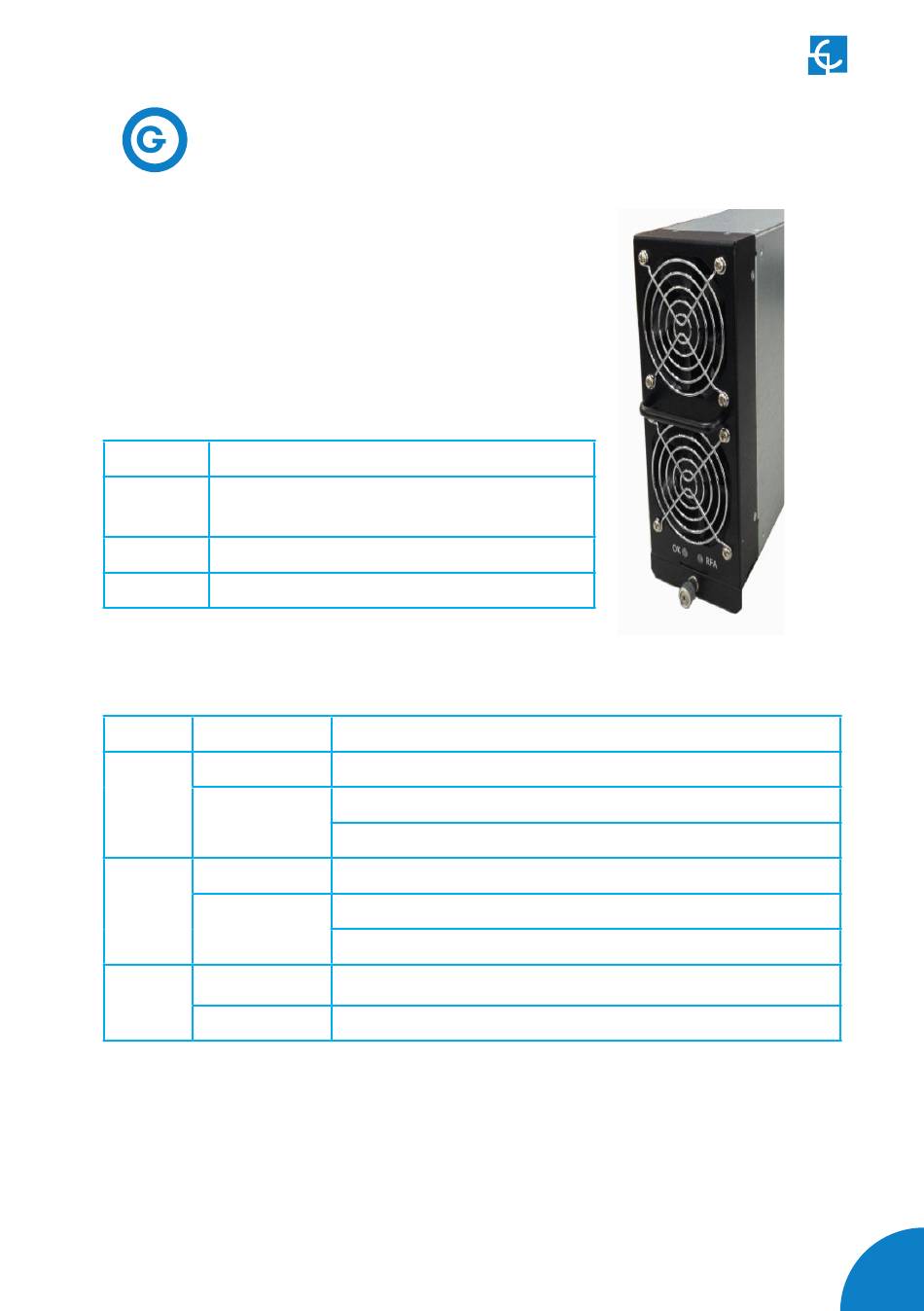

LED lights placed in rectifier:
1 — LED named "OK":
2 — LED named "RFA":
Meaning of colours in relation with service:
Colour
Green Everything ok
No diagnostic or user interaction required
Yellow Check following table for further diagnosis
Red Replace rectifier
Meaning of colours in relation with LED
Colour LED Status
ON
Green
OFF
ON
Yellow
OFF
ON
Red
OFF
Green/Yellow bi-color
Red
System Status
status:
Correct operation
Not able to provide output power
Any protection circuit limit the full capacity of the rectifier
Any protection circuit limit the full capacity of the rectifier
Correct operation
Not able to provide output power
Internal malfunction or fan fault
Correct operation
System Status
