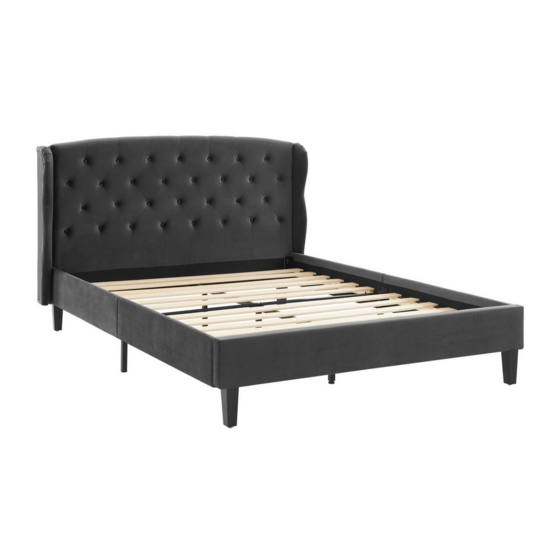

MOD-6180 QUEEN BED
Thank you for purchasing the MODWAY QUEEN BED!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all the fitting out of reach of children.
Components:
1. Headboard
x1
6. Side Rail
x2
10. Center Support Leg
Customer Service 609-256-9000︱www.modway.com
2. Left Ear
x1
7. Side Support Leg
x2
x3
11. Cross Bar
Hardware:
A.
B.
C.
D.
E.
I.
J.
L.
M.
3. Right Ear
x1
8. Center Cross -back
x1
12. Leg
x4
Bolt M8x20mm
Bolt M8x25mm
Bolt M8x45mm
Bolt M8x60mm
Nut M8
Connection plate
Flat Washer
Allen Wrench
Spanner Wrench
4. Footboard
x1
x1
9. Center Cross -front
13. Slats
x2
x18
x12
x9
x1
x6
x4
x4
x1
x1
5. Side Rail
x2
x1
Page 1 of 4
