MOD-6189
Thank you for purchasing the MODWAY
Before you start,here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed, we recommed that it is assembled by two adults,on a carpeted or
padded area, in the room that it is intended for.Approx assembly time:30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled.Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten.Depending on use, it may be necessary to tighten
the components from time to time,so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
Component :
1- DRESSER
2- LEGS
Customer Service 908-368-1025 www.modway.com
!

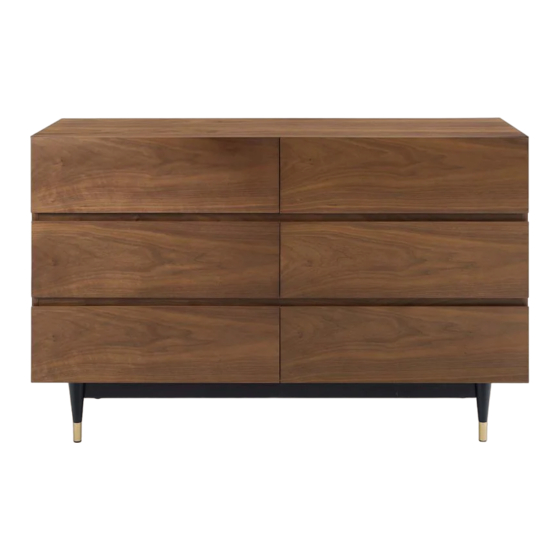

DRESSER
Hardware for DRESSER
2
A
JCBC SCREW M6 X 70MM
B
SPRING WASHER 1/4"
C
FLAT WASHER 1/4"
D
M4 ALLEN KEY (BALL SHAPE) LONG
E
PROTECTION PAD
F
WALL SCREW M4 x 18MM
G
WALL SCREW M4 x 50MM
H
L- BRACKET
I
BELT
1
x8
x8
x8
x1
x4
x1
x1
x2
x1
Page 1/3
Advertisement
Table of Contents
Related Manuals for modway MOD-6189
Summary of Contents for modway MOD-6189
- Page 1 MOD-6189 Thank you for purchasing the MODWAY DRESSER Before you start,here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the bed, we recommed that it is assembled by two adults,on a carpeted or padded area, in the room that it is intended for.Approx assembly time:30 minutes.
- Page 2 Attach one of the L-Bracket(H) to wall by inserting WALL SCREW M4 x 50MM(G). Then attach another L-Bracket(H) to back side center of Dresser by inserting WALL SCREW M4 x 50MM(G). STEP 2.1 STEP 2.2 H x 2 F x 1 G x 1 Hardware & Tool required Page 2/3 Customer Service 908-368-1025 www.modway.com...
- Page 3 MOD-6189 STEP 3 : Attach the two L-BRACKET(H) with the BELT(I) Place Place I x 1 Hardware & Tool required STEP 4: Assembly is complete,the DRESSER is ready to be enjoyed now! Page 3/3 Customer Service 908-368-1025 www.modway.com...
