MOD-6187

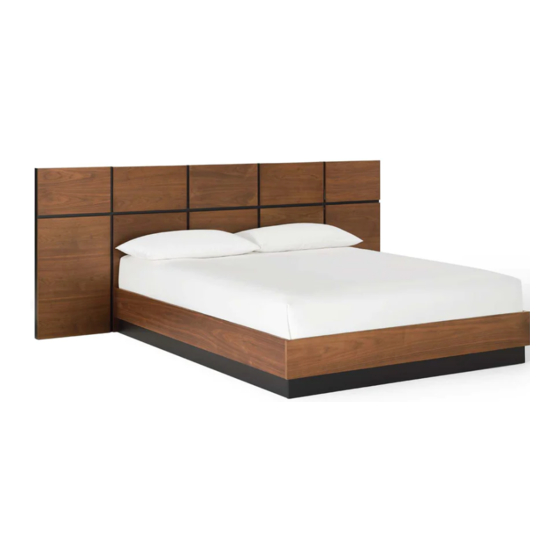

Thank you for purchasing the MODWAY BED !
Before you start,here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed, we recommed that it is assembled by two adults,on a carpeted or
padded area, in the room that it is intended for.Approx assembly time:30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled.Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten.Depending on use, it may be necessary to tighten
the components from time to time,so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
Component :
1- HEADBOARD
2- HEADBOARD SUPPORT
3- SIDERAIL (L & R)
4- FOOTBOARD
Customer Service 908-368-1025 www.modway.com
5- SLAT
6- SLAT WITH HOLE
7- CENTER SLAT
8- CENTER SLAT SUPPORT
Hardware for Headboard
A
JCBB SCREW M8 x 16MM
B
M5 ALLEN KEY
Hardware for Bed Frame and Legs
JCBC SCREW M6 x 50MM
C
D
SPRING WASHER 1/4''
E
ADJUSTABLE GLIDE C167
F
M4 ALLEN KEY (BALL SHAPE )LONG
G
PAN HEAD SCREW M4 x 25MM
H
JCBC SCREW M6 x 40MM
I
FLAT WASHER 1/4"
J
PROTECTION PAD
1
2
3
x8
x1
x3
x11
x3
x1
x28
x8
x8
x6
6
5
7
8
4
Page 1/4
Advertisement
Table of Contents
Related Manuals for modway Caima MOD-6187
Summary of Contents for modway Caima MOD-6187
- Page 1 MOD-6187 Thank you for purchasing the MODWAY BED ! Before you start,here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the bed, we recommed that it is assembled by two adults,on a carpeted or padded area, in the room that it is intended for.Approx assembly time:30 minutes.
- Page 2 FOOTBOARD (4 ) by inserting Tighten with SIDERAIL (L & R) (3 ) JCBB SCREW M8 x 16MM(A). M5 ALLEN KEY(B). STEP 1.1 STEP 1.2 A x 8 B x 1 Hardware & Tool required Page 2/4 Customer Service 908-368-1025 www.modway.com...
- Page 3 Hardware & Tool required STEP 4 : Screw the slat(5) by inserting PAN HEAD SCREW M4 x 25MM (G) or padded area as shown. Tighten with SCREW DRIVER. G x 28 Hardware & Tool required Page 3/4 www.modway.com Customer Service 908-368-1025...
- Page 4 D x 8 I x 8 Hardware & Tool required Place Remark: Do not sit or lie down on the platform without the mattress Assembly is complete,the bed is ready to be enjoyed now! Page 4/4 www.modway.com Customer Service 908-368-1025...
