Battery voltage input ranges for different releases of the control unit:
24/36
48
48/80
24/36
48
48/80

2.3.1 Tacho generator or stepper motor

We supply two command device solutions: Tacho-generator and Stepper motor.
Tacho-generator is to be AIRPAX 24VDC - part No. 9904-120-16206. Use of any other
device may provide non-optimum performance.
Stepper motor is to be Minebea type code AA23KM-K227-T20V. Use of any other
device may provide non-optimum performance.

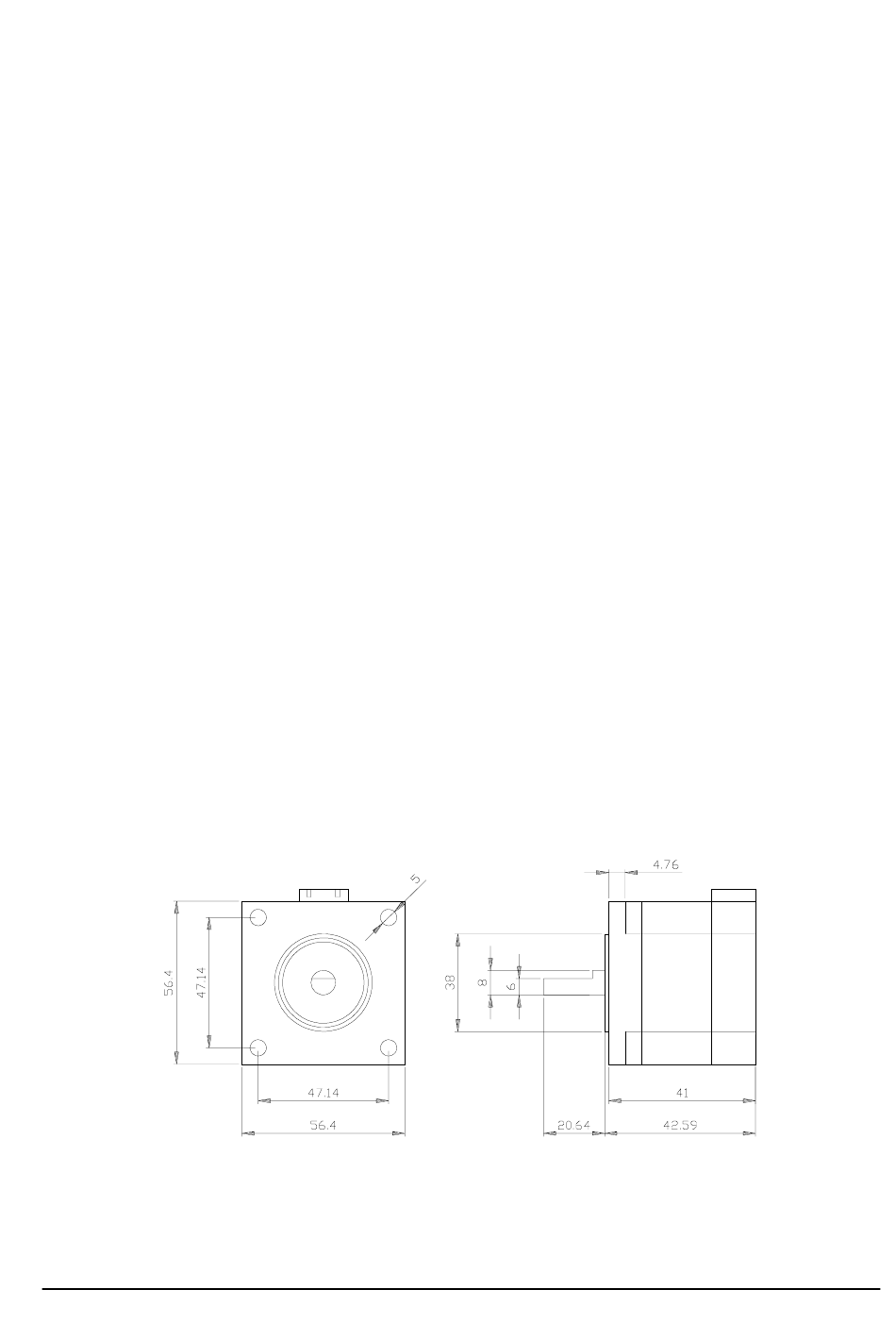

Stepper motor - mechanical specification

2 ELECTRICAL SPECIFICATIONS

2.1 BATTERY VOLTAGE RANGE

24-36 Vdc
48 Vdc
48-80 Vdc

2.2 STEER MOTOR CURRENT RANGE

Imax ≤70Aac. Adjustable with the hand held controller (HARDWARE
SETTING)
Imax ≤70Aac. Adjustable with the hand held controller (HARDWARE
SETTING)
Imax ≤50Aac. Adjustable with the hand held controller (HARDWARE
SETTING)

2.3 COMMAND DEVICE SPECIFICATIONS
