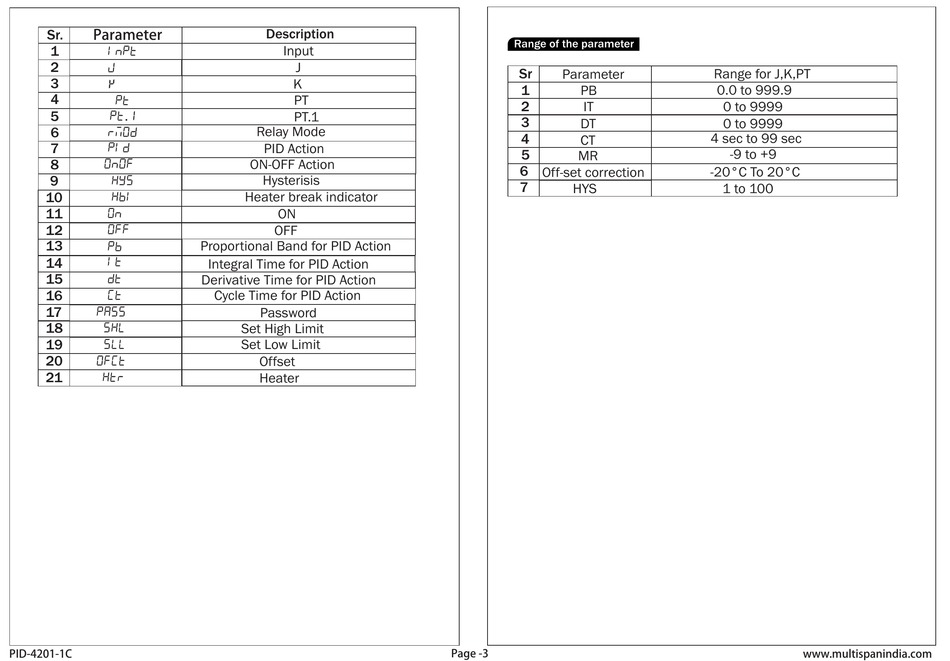

MULTISPAN PID 4201-1C Product Manual page 3

Parameter
Sr.
1 INPT
2 J
3
4
PT
PT.1
5
6 RMOD
PID
7
ON0F
8
HYS
9
HBI
10
11 ON
OFF
12
13
PB
IT
14
DT
15
16 CT
17 PASS
SHL
18
19 SLL
20 OFCT
21 HTR
PID-4201-1C
Description
Input
J
K
PT
PT.1
Relay Mode
PID Action
ON-OFF Action
Hysterisis
Heater break indicator
ON
OFF
Proportional Band for PID Action
Integral Time for PID Action
Derivative Time for PID Action
Cycle Time for PID Action
Password
Set High Limit
Set Low Limit
Offset
Heater
Range of the parameter
Sr
Parameter
1 PB
2 IT
3
DT
4
CT
5
MR
6
Off-set correction
7
HYS
Page
-3
Range for J,K,PT
0.0 to 999.9
0 to 9999
0 to 9999
4 sec to 99 sec
-9 to +9
-20°C To 20°C
1 to 100
