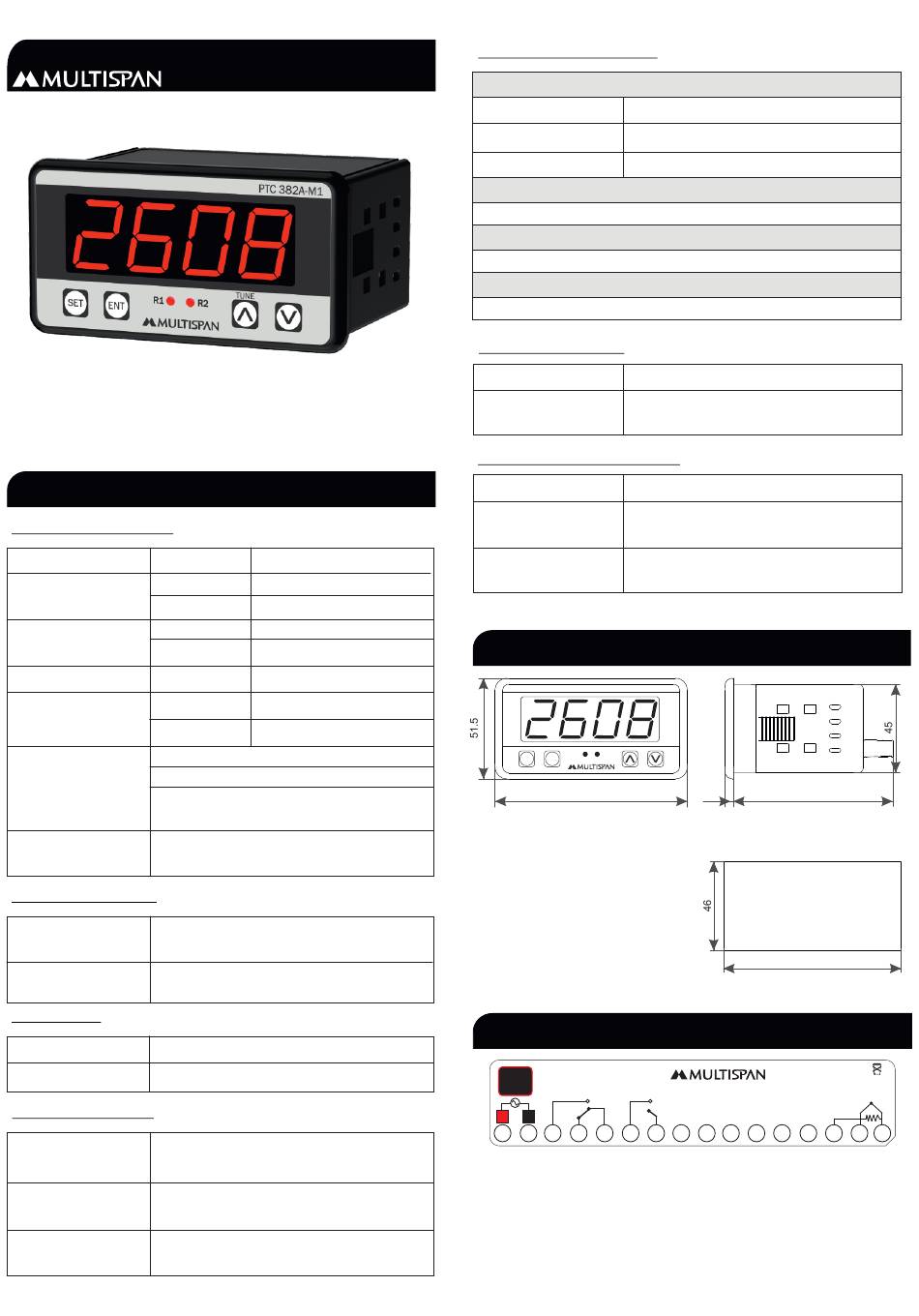

MULTISPAN PTC- 382A-M1 Manual

PROCESS & TEMPERATURE CONTROLLER
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
Input Types
Thermocouple
PT-100
RTD
PT.1
0-10V DC
Voltage
0-20mA DC
Current
4-20mA DC
J,K,PT-100 = 1°C
PT.1 = 0.1°C
Resolution
0-10V DC,0-20mA DC,4-20mA DC
= 0.1,0.01,0.001,0001
±1% of FSD ± 1 Count
Indication
Accuracy
(FSD : full scale deflection)
DISPLAY AND KEYS:
Display 4 digit,7 seg 0.8" RED or WHITE LED
Keys
SET, ENT,INC,DEC
DIMENSION:
Size 51.5 (H) x 98 (W) x 84 (D) mm
Panel Cutout
46 (H) x 92 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
Heating
2) ON-OFF control
1) BL.TP (Blower Time Proportion)
Cooling
2) ON-OFF control
High/Low/Inband/Outband/
Alarm
Absolute Low/Absolute Outband
PTC- 382A-M1
Range
J 0 to 600°C
K 0 to 1200°C
-99 to 400°C
-99.9 to 400.0°C
-1999 to 9999
-1999 to 9999
-1999 to 9999
OUTPUT SPECIFICATION :
Relay Output
Relay 2 nos.
ST
Relay Type 1 C/O (NO-C-NC) , 2
Rating 5A ,230V AC/30 V DC
Analog Output
4 to 20mA DC
Transmitter supply
24V DC
Modbus Communication
RS-485
AUXILIARY SUPPLY :
100 to 270V AC ,50-60Hz
Supply voltage
Power consumption
Approx 6 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION :
Operating Temp.
0°C to 55°C
Relative Humidity UP to 95% RH
(non-condensing)
Protection Level IP-65 (Front side) As per IS/IEC
60529 : 2001
MECHANICAL INSTALLATION
PTC 382A-M1
TUNE
R1 R2
SET ENT
98
FRONT VIEW
All dimensions are in mm
TERMINAL CONNECTION
~
100
270V AC
R1 R2
50/60 Hz
6VA
NO NC C NO
L N
1 2 3 4 5 6
ND
C/O (NO-C)
84
4.5
RIGHT SIDE VIEW
Panel Cutout
92
www.multispanindia.com
4-20
C
20mA DC
24V DC
mA DC
RS-485
O/P
O/P
- -
+ B+ A- +
7 8 9 10 11 12 13
Made in India
0/4 To 0 To 10
V DC
-
+ +
T/C
14 15 16
