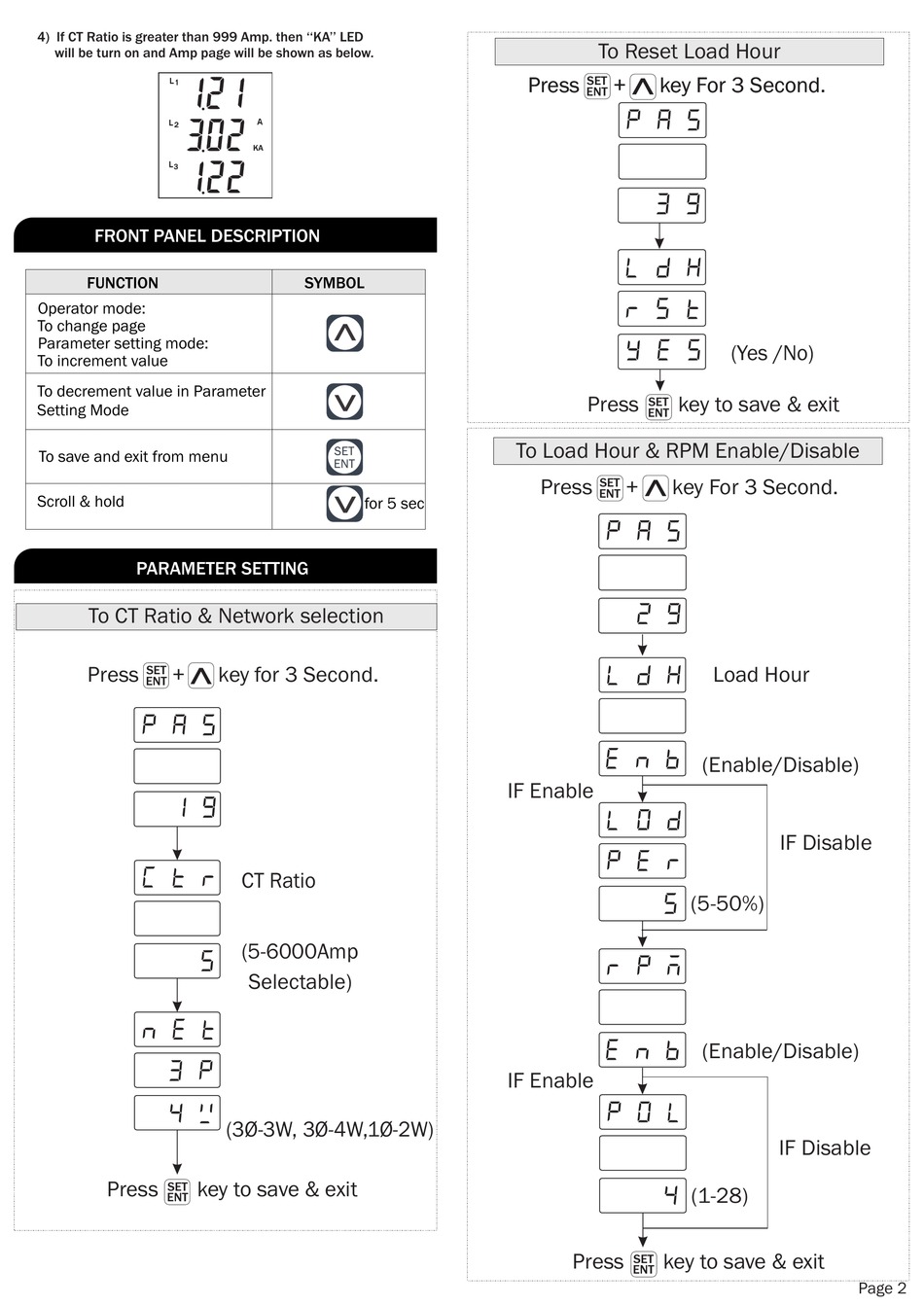

MULTISPAN AVF-19N Manual page 2

4) If CT Ratio is greater than 999 Amp. then ''KA'' LED
will be turn on and Amp page will be shown as below.
FRONT PANEL DESCRIPTION
FRONT PANEL DESCRIPTION
FUNCTION
Operator mode:
To change page
Parameter setting mode:
To increment value
To decrement value in Parameter
Setting Mode
To save and exit from menu
Scroll & hold
PARAMETER SETTING
To CT Ratio & Network selection
SET
Press +
ENT
p a s
1 9
C T R
s
N E T
3 P
4 W
Press key to save & exit
SET
ENT
KA
SYMBOL
for 5 sec
key for 3 Second.
CT Ratio
(5-6000Amp
Selectable)
(3Ø-3W, 3Ø-4W,1Ø-2W)
To Reset Load Hour
SET
Press Press + + key For 3 Second. key For 3 Second.
ENT
p a s
3 9
L D H
r s t
y e s
Press key to save & exit
SET
ENT
To Load Hour & RPM Enable/Disable
Press SET + key For 3 Second.
ENT
p a s
2 9
L D H
E N B
IF Enable
L O D
P E R
5
r p m -
e n b
IF Enable
p O L
4
Press key to save & exit
SET
ENT
(Yes /No)
Load Hour
(Enable/Disable)
IF Disable
(5-50%)
(Enable/Disable)
IF Disable
(1-28)
Page 2
