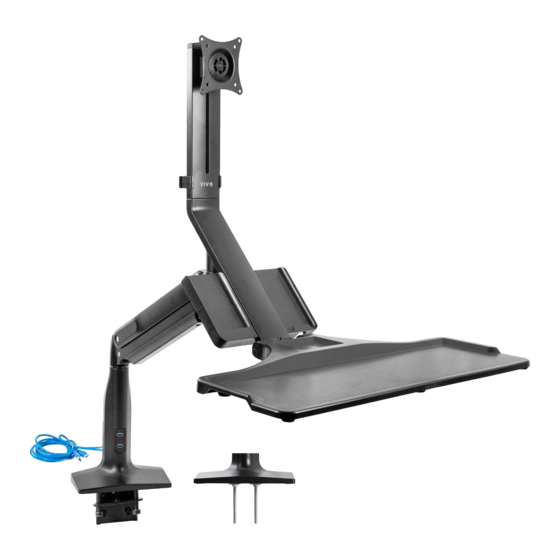

Sit to Stand Desk Mount
Instruction Manual
SKU: STAND-SIT1DD
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-sit1dd
help@vivo-us.com
www.vivo-us.com
1-800-371-5654
Advertisement
Related Manuals for Vivo STAND-SIT1DD
Summary of Contents for Vivo STAND-SIT1DD
- Page 1 Sit to Stand Desk Mount Instruction Manual SKU: STAND-SIT1DD Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-sit1dd help@vivo-us.com www.vivo-us.com 1-800-371-5654...
-
Page 2: Tools Needed
TOOLS NEEDED WARNING! DO NOT EXCEED WEIGHT CAPACITY. 2.2 - 19.8lbs Failure to do so may result in serious injury. (1 -9 kg) If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. - Page 3 STEP 2 STEP 6 Mount upper support arm (F) to lower support arm using M8x25 bolts (T) and tighten with 6mm Allen Carefully extend the adjustable arm (B) to the raised position as shown. wrench (O). Insert the adjustable arm into the socket of the base, then secure using the 3mm Allen wrench (M).
- Page 4 STEP 9 STEP 12 Install rear cover (G) to clamp brace if the Install the VESA plate (K) to monitor using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C), clamp option was used. Install cable clip (L) to making sure the rounded edges of the rear bracket are facing up.
- Page 5 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
