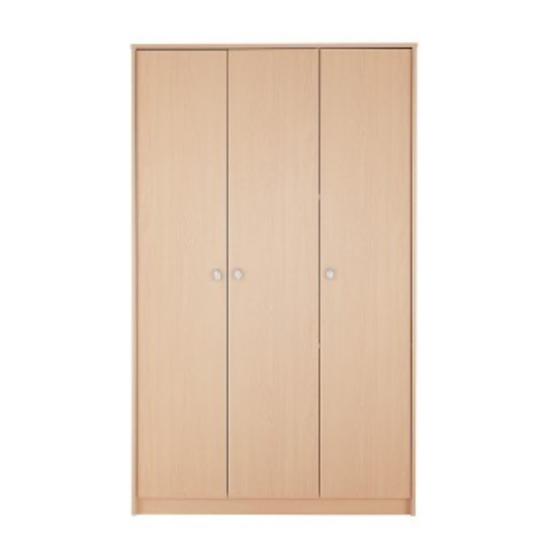

Newport - 3 Door Robe
Assembly Instructions -
Dimensions
Width - 103.5cm
Depth - 50cm
Height - 172cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
339/6199
331/9152
MADE IN
BRITAIN
Issue 3 - 16/10/14
Advertisement
Related Manuals for Argos Newport
Summary of Contents for Argos Newport
- Page 1 Newport - 3 Door Robe Assembly Instructions - 339/6199 Please keep for future reference 331/9152 Dimensions Width - 103.5cm Depth - 50cm MADE IN Height - 172cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 58kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (DF520) (1032 x 496mm) Left End Right End Divider Base (DF285) (DF286B) (DF525)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Note: The hinge plates Prepare the left side used on the left and right ends are in the bag of 6 Screw 3 metal dowels labelled AHP1546.
- Page 6 Assembly Instructions Step 3 Prepare the base Insert 4 large locking nuts into the base Finished front edge Step 4 Fit the base to the right side Push the base onto the right side Use a screwdriver to tighten the 2 large locking nuts fitted to Finished...
- Page 7 Assembly Instructions Step 5 Note: The hinge plates used Prepare the divider on the divider are in the bag of 3 labelled AHP1043. Fit the 3 hinge plates to the divider making sure that the slot is facing towards the finished front edge.
- Page 8 Assembly Instructions Step 7 Prepare the plinth Tap 2 wooden dowels into the plinth Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. Insert 2 large locking nuts into the plinth Step 8 Fit the plinth Push the plinth...
- Page 9 Assembly Instructions Step 10 Prepare the top Screw 4 metal dowels into the top Finished front edge Step 11 Fit the top Push the top onto the left side and right side Attach the top to the divider using 2 screws Step 12 Secure the top...
- Page 10 Assembly Instructions Step 13 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back panels Square up the unit by making sure that measurement x:x equals y:y.
- Page 11 Assembly Instructions Step 14 Fit the plastinails Tap 2 plastic nails into the bottom edge of each of the sides Stand the unit up for the next step. Warning: The unit is heavy. Lift with care. Step 15 Fit the hanging rail and shelves Push the hanging rail into the rail holders...
- Page 12 Assembly Instructions Step 16 Note: The hinge arms used on these 2 doors are in the bag of Prepare the 2 outer 6 labelled AHP1546. doors These will be the outer doors. Push fit 3 hinges into 2 of the doors Secure each hinge with 2 screws Note: Before securing...
- Page 13 Assembly Instructions Step 18 Fit the 2 outer doors and their handles Note: The easiest way to attach a door is to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the...
- Page 14 Assembly Instructions Step 19 Fit the centre door and its handle Note: The easiest way to attach a door is to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the...
- Page 15 Assembly Instructions Step 20 Note: This shows the hinges on the outer doors but, the same method Adjust the doors if is also used on the centre door. needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3...
- Page 16 Lift with care. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3078...
